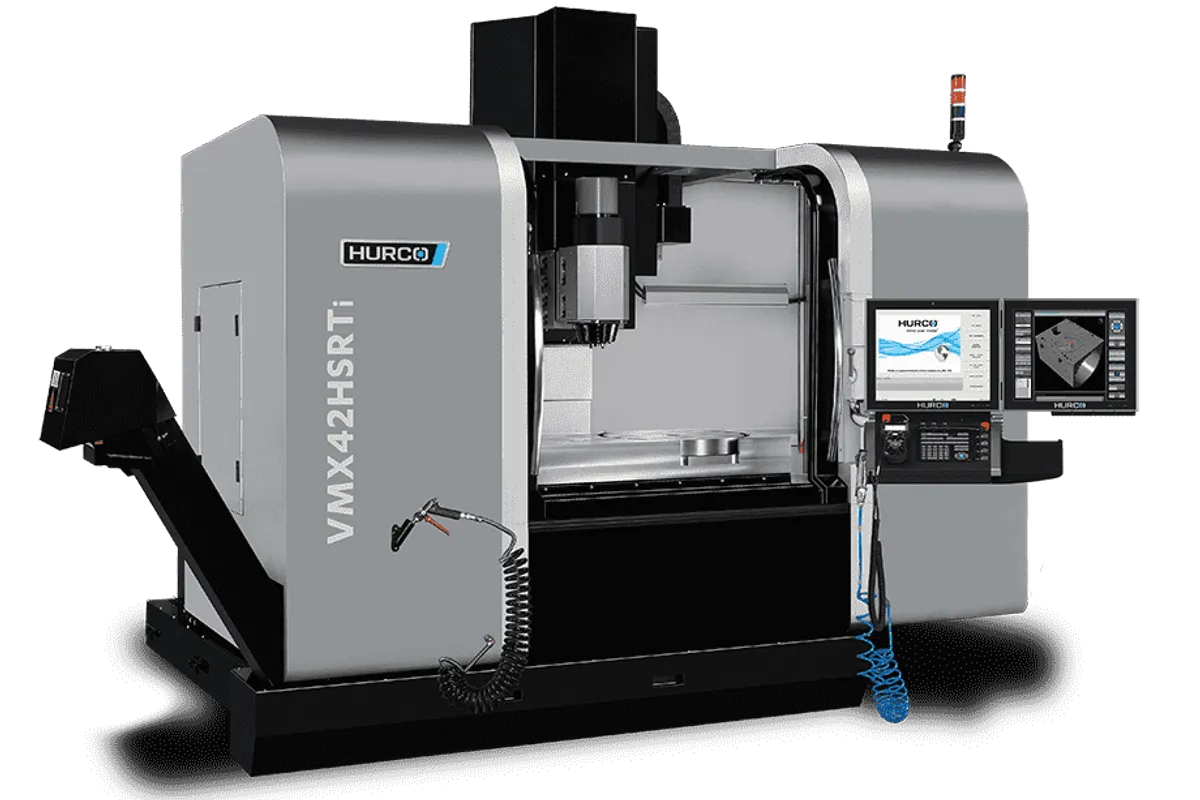

Hurco VMX42HSRTi

$300,000 - $400,000 (new) | $180,000 - $280,000 (used) Updated 2025-03-15

Key Specifications

X Travel

1,067 mm (42 in)

Y Travel

610 mm (24 in)

Z Travel

610 mm (24 in)

Max Spindle

24,000 RPM

Spindle Taper

HSK 63

Tool Capacity

Overview

The Hurco VMX42HSRTi is the high-speed variant of Hurco's swivel-head rotary table 5-axis platform. It combines a 24,000 RPM HSK 63 spindle with a B/C swivel-head rotary table configuration, creating one of the fastest and most versatile machines in Hurco's 5-axis lineup. Where trunnion machines tilt the part, the SRT design tilts the spindle head and rotates the table — giving you full 5-axis access to large parts that won't fit on a trunnion.

Travels are 1,067 x 610 x 610 mm (42 x 24 x 24 in) with a fixed table of 1,270 x 610 mm (50 x 24 in) rated for 1,360 kg (3,000 lb). An integrated 599 mm (23.6 in) diameter rotary table handles 500 kg (1,100 lb). The B-axis swivels +/-92 degrees and the C-axis rotates 360 degrees, providing excellent angular access for complex contoured surfaces.

The 24,000 RPM HSK 63 spindle delivers 37 kW (49.6 hp) of peak power with 82.9 Nm (61.2 ft-lbs) of torque at 4,260 RPM. This is a true high-speed machining spindle — at 24K RPM, you're in diamond-finish territory for aluminum. HSK 63 face-contact toolholding maintains grip at these extreme speeds where CAT 40 tapers would loosen.

Rapids are the fastest in the VMX42 family at 45 m/min (1,771 ipm) on X/Y and 40 m/min (1,575 ipm) on Z. B-axis rapids at 50 RPM and C-axis at 100 RPM provide quick repositioning. The 40-tool ATC handles HSK 63 tooling with 76 mm max diameter and 249 mm max length.

At 8,400 kg (18,520 lb), this is a heavy machine with serious rigidity. Floor space is 4,954 x 3,772 mm (195 x 149 in) and power draw is 70 KVA. WinMax control with full simultaneous 5-axis support is standard.

New pricing runs $300,000-$400,000. This machine targets high-speed aerospace aluminum machining and precision mold work where cycle time and surface finish are paramount.

Full Specifications

Parameter	Value
X-Axis Travel	1,067 mm (42 in)
Y-Axis Travel	610 mm (24 in)
Z-Axis Travel	610 mm (24 in)
B Axis Range	+/- 92°
C Axis Range	360°
Max Spindle Speed	24,000 RPM
Spindle Taper	HSK 63
Spindle Motor Power	49.6 hp (37 kW)
Spindle Torque	61.2 ft lbs @ 4,260 rpm (82.9 Nm @ 4,260 rpm)
Tool Capacity	40
Table Size	50 x 24 in (1,270 x 610 mm)
Rotary Table Diameter	599 mm (23.6 in)
Max Table Load	1,360 kg (3,000 lb)
Max Rotary Table Load	500 kg (1,100 lb)
Rapid Traverse Xy	45 m/min (1,771 ipm)
Rapid Traverse Z	40 m/min (1,575 ipm)
Rotary Axis Rapid B	50 RPM
Rotary Axis Rapid C	100 RPM
Max Tool Diameter	3.0 in (76 mm)
Max Tool Length	9.8 in (249 mm)
Max Tool Weight	15.4 lbs (7 kg)
Machine Weight	8,400 kg (18,520 lb)
Floor Space	4,954 x 3,772 mm (195 x 149 in)
CNC Control	Hurco WinMax
Travels Capacityx Y Z Axis Travel	42.01 x 24.02 x 24.02 in (1,067 x 610 x 610 mm)
B C Axis Travel	+/- 92°, 360°
Spindle Nose To Table	.1 / 24.1 in (25 / 612 mm)
Max Weight On Table	3,000 lb (1,360 kg)
Max Weight On Rotary Trunnion Table	1,100 lb (500 kg)
T Slot Size	5 x .71 in (5 x 18 mm)
Spindlemax Spindle Speed	24,000 rpm
Tool Changertool Type	HSK63
Feedratesrapid Traverse Xyz Axis	1,771, 1,771, 1,575 in/min (45, 45, 40 m/min)
Max Programmable Feedrate	1,575 in/min (40 m/min)
Rapid Traverse B C Axis	50, 100 rpm
Sizemax Operating Floor Space	195.0 x 148.5 in (4,954 x 3,772 mm)
Machine Weight	18,520 lb (8,400 kg)
Electricalpower Rating Full Load Kva	70 KVA

Specifications sourced from hurco.com — verified 2026-03-28

Strengths & Limitations

Strengths

24,000 RPM HSK 63 spindle is the fastest in Hurco's lineup, delivering diamond-quality finishes on aluminum
Swivel-head design provides 5-axis access to large parts that won't fit on trunnion tables
1,360 kg (3,000 lb) fixed table load handles heavy workpieces that trunnion machines can't support
100 RPM C-axis rapid repositioning is 4x faster than trunnion models, cutting cycle time on indexed work
37 kW (49.6 hp) spindle power handles aggressive roughing despite the high-speed focus
610 mm Z-axis travel provides extra clearance for tall parts and long-reach tooling

Limitations

70 KVA power requirement is substantial and may require dedicated electrical service
$300-400K pricing approaches premium European 5-axis territory from Hermle and GF Machining
82.9 Nm torque at 4,260 RPM limits heavy roughing in steel — this is primarily an aluminum machine
HSK 63 tooling investment is significantly higher than CAT 40, especially for high-speed balanced holders
Swivel-head design is more complex than trunnion, with higher maintenance costs for the B-axis mechanism

Best For

Aerospace shops running high-speed aluminum structural component machining with tight surface finish specs Mold manufacturers machining large cores and cavities requiring 5-axis high-speed contouring Shops producing large, heavy parts that exceed trunnion table weight limits but need 5-axis access Production environments where 24K RPM cycle time reduction directly impacts per-part profitability Die shops needing swivel-head access to deep cavities from multiple angles with long-reach tooling Contract manufacturers serving aerospace primes with strict surface roughness requirements

Frequently Asked Questions

01 What does a Hurco VMX42HSRTi cost?

New pricing runs $300,000-$400,000 depending on options. This is Hurco's most expensive 42-inch 5-axis platform, reflecting the 24K RPM HSK 63 spindle and swivel-head mechanism. Used machines are rare due to low production volume.

02 What's the difference between the HSRTi and the standard SRTi?

The HSRTi runs a 24,000 RPM HSK 63 spindle with 37 kW (49.6 hp), while the standard VMX42SRTi runs a 12,000 RPM CAT 40 spindle with 30 kW (40 hp). The HSRTi is faster with higher rapids (45/40 vs 38/32 m/min) but has less low-end torque. Choose HSRTi for aluminum high-speed finishing, SRTi for general-purpose steel and aluminum work.

03 Why would I choose a swivel-head over a trunnion table?

Swivel-head machines (SRT) can handle much heavier parts because the workpiece stays on a fixed table — the spindle head provides the 4th and 5th axes. The VMX42HSRTi handles 1,360 kg on the fixed table versus 250 kg on the VMX42Ui trunnion. If your parts are heavy or too large for a trunnion table, swivel-head is the answer.

04 Can I use the 24K RPM spindle for steel?

You can machine steel, but you'll run at much lower RPMs and the 61.2 ft-lbs of torque limits your depth of cut. For occasional steel work it's adequate. For production steel machining, the standard VMX42SRTi with its 40 hp / 98.9 Nm spindle at 12K RPM is better suited.

05 What's the B-axis accuracy on the swivel head?

Hurco specs the B-axis positioning accuracy at ±5 arc-seconds with repeatability of ±3 arc-seconds. The +/-92 degree range provides access to undercuts and steep-wall features that are difficult or impossible with straight 3+2 positioning.
