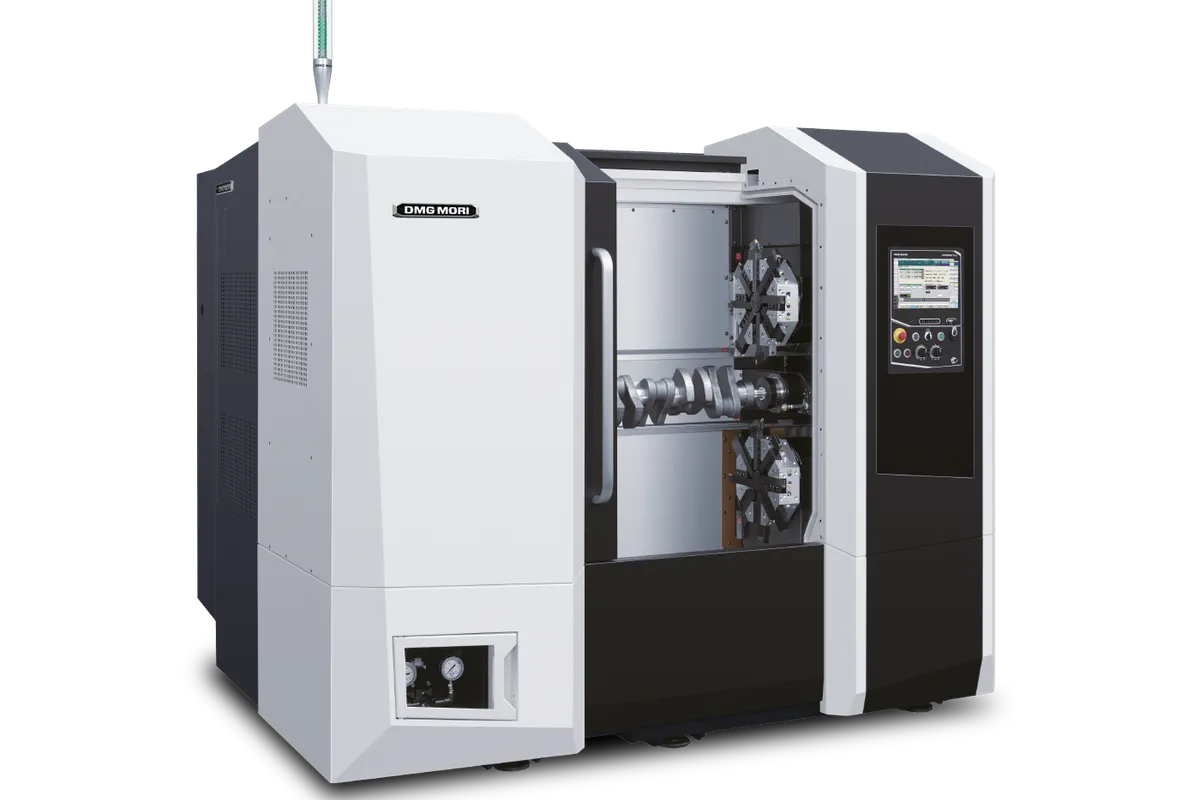

DMG Mori NZX-S 2500

$250,000 - $380,000 Updated 2026-03-19

Key Specifications

Max Spindle

5,000 RPM

Spindle Power

18.5 kW (25 HP)

Max Workpiece ⌀

200 mm (7.9 in)

max workpiece length

700 mm (27.6 in)

x axis travel

120 mm (4.7 in)

z axis travel

770 mm (30.3 in)

Overview

The DMG Mori NZX-S 2500 is the larger member of the space-saving NZX-S turning center family, handling workpieces up to 200 mm (7.9 in) diameter and 700 mm (27.6 in) length. It delivers twin-turret productivity in a compact footprint, bridging the gap between the smaller NZX-S 1500 and the full-size NZX 2500.

X-axis travel is 120 mm (4.7 in) and Z-axis travel is 770 mm (30.3 in), providing a practical work envelope for medium-sized production parts. The increased X-travel compared to the NZX-S 1500 (60 mm) enables larger facing operations and more flexibility on chucked workpieces. Two turret positions enable simultaneous cutting operations for reduced cycle times.

The machine runs on a FANUC control with DMG MORI's COMPACTline operation system featuring MAPPS Pro on a 12.1-inch multi-touch screen. This provides an intuitive interface for programming and operation while maintaining the familiar FANUC programming environment that operators know.

The NZX-S 2500 targets production shops that need the turning capacity of a 10-inch class lathe but cannot justify the floor space of a standard NZX 2500. The compact design enables lean manufacturing cells with multiple machines running side by side, maximizing production density per square foot.

New NZX-S 2500 machines price between $250,000 and $380,000. The NZX-S 2500 competes with the Nakamura-Tome SC-200, Mazak QUICK TURN 200MSY, and other compact twin-turret production lathes in the 200 mm workpiece class. Specs sourced from DMG Mori published data.

Full Specifications

Parameter	Value
Max Workpiece Diameter	200 mm (7.9 in)
Max Workpiece Length	700 mm (27.6 in)
X Axis Travel	120 mm (4.7 in)
Z Axis Travel	770 mm (30.3 in)
Turrets	2
Max Spindle Speed	5,000 RPM
Spindle Motor Power	18.5 kW (25 HP)
Chuck Size	254 mm (10 in)
CNC Control	FANUC with MAPPS Pro (COMPACTline)
Display	12.1-inch multi-touch screen
Machine Weight	6,500 kg (14,330 lb)
200 Mm	7.9 in.
700 Mm	27.6 in.
120 Mm	4.7 in.
770 Mm	30.3 in.
Customer Benefits	Functionality - Selection of the cycle by pressing the associated key on the operating panel

Specifications sourced from us.dmgmori.com — verified 2026-03-28

Strengths & Limitations

Strengths

200 mm workpiece diameter and 120 mm X-travel handle medium-sized production parts that the NZX-S 1500 cannot accommodate
Twin turrets enable simultaneous cutting operations that reduce cycle time by 30-40% versus single-turret lathes
Compact footprint delivers NZX-class twin-turret productivity without the floor space requirements of the full-size NZX 2500
18.5 kW spindle provides adequate power for production roughing and finishing on steel, stainless, and aluminum
COMPACTline operation system with 12.1-inch multi-touch screen provides an intuitive modern interface on a FANUC platform
Space-saving design enables lean manufacturing cell layouts with multiple machines in minimal floor space

Limitations

200 mm max workpiece diameter is smaller than the full-size NZX 2500 (370 mm), limiting part size range
770 mm Z-axis travel restricts maximum workpiece length compared to the standard NZX 2500 (up to 1,000 mm)
Compact design means trade-offs in chip evacuation area and coolant capacity versus full-size NZX models
5,000 RPM spindle speed may limit surface speed optimization on very small diameter work

Best For

Automotive production shops running mid-size turned parts where twin-turret productivity matters in a compact footprint Oil and gas component shops producing fittings, couplings, and small valve bodies from 2-3 inch bar stock Contract manufacturers needing versatile twin-turret capability without dedicating excess floor space Lean manufacturing facilities designing tight production cells with multiple turning machines and automated loading Shops upgrading from single-turret lathes that want twin-turret productivity without the footprint of a full-size NZX

Frequently Asked Questions

01 What does a new DMG Mori NZX-S 2500 cost?

New pricing runs $250,000-$380,000 depending on options. Adding milling capability on both turrets, sub-spindle, Y-axis, and bar feeder integration pushes toward the higher end. The NZX-S 2500 costs less than the full-size NZX 2500 due to its compact design.

02 NZX-S 2500 vs NZX 2500 — what do I give up?

The NZX-S 2500 trades work envelope (200 mm vs 370 mm diameter, 700 mm vs 1,000 mm length) and Z-travel (770 mm vs 1,050 mm) for a significantly smaller footprint. If your parts fit within the NZX-S envelope, you get the same twin-turret productivity in less floor space.

03 What is COMPACTline?

COMPACTline is DMG Mori's simplified operation system for the NZX-S series, featuring MAPPS Pro on a 12.1-inch multi-touch screen. It provides an intuitive touchscreen interface while maintaining full FANUC programming capability. It is simpler than the full CELOS system but covers all essential production functions.

04 Can the NZX-S 2500 run with automation?

Yes. The machine supports bar feeder integration and robotic loading. The compact footprint combined with automation makes it an efficient production cell. DMG Mori offers automation packages specifically designed for the NZX-S series.
