Sodick Sodick AL600P
Key Specifications
X Travel
Y Travel
Z Travel
u axis
v axis
max taper angle
Overview

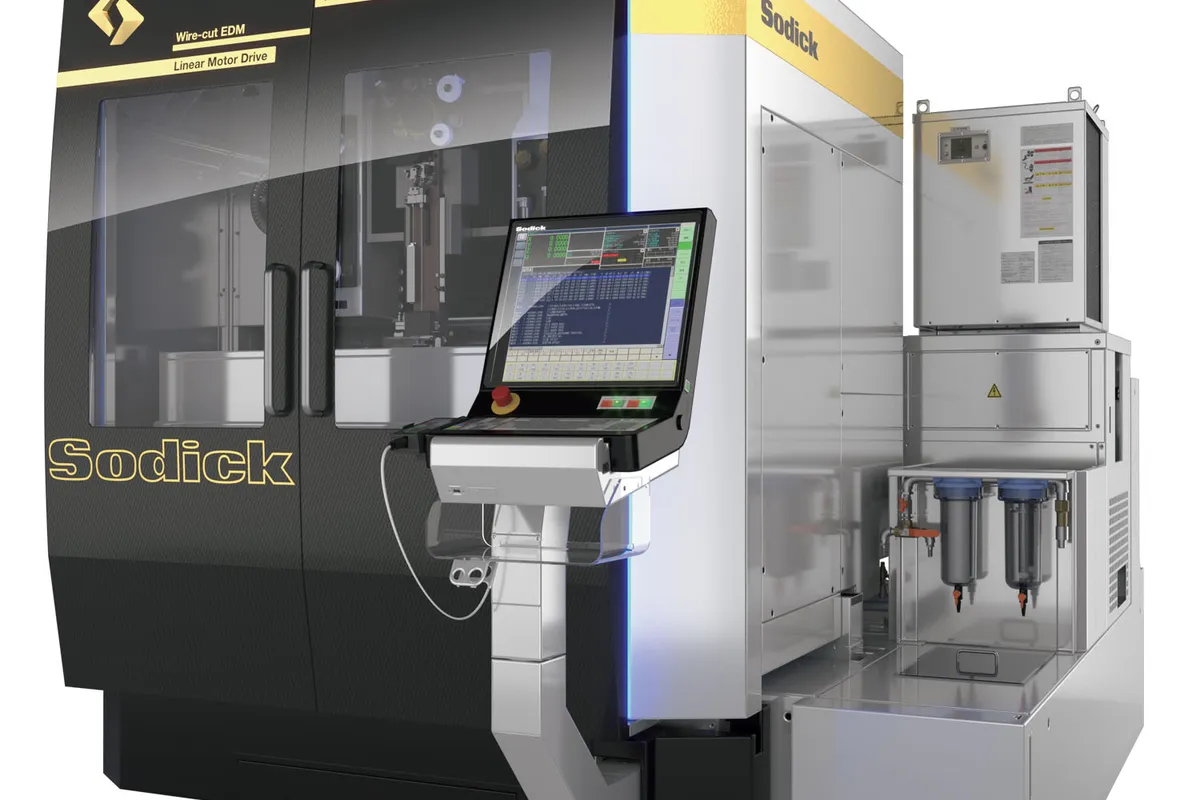

The Sodick AL600P i Groove+ Edition is a mid-large format linear motor wire EDM with 600 x 400 x 350 mm (23.6 x 15.75 x 13.78 in) X/Y/Z travel, a 1,000 kg (2,205 lb) workpiece capacity, and Sodick’s premium Smart Pulse generator. The AL600P steps up from the AL400P in every dimension that matters for larger die and mold work: 50% more X-travel, 33% more Y-travel, 40% more Z-travel, and double the workpiece weight capacity.
The four-axis linear motor drive system on X, Y, U, and V axes delivers zero-backlash, zero-wear positioning. At the AL600P’s larger travel scale, the advantages of linear motors over ball screws become more pronounced. Sodick backs the positioning accuracy with a 10-year guarantee.
The i Groove+ wire deflection compensation system maintains dimensional accuracy through direction changes and tight corners across the full 600 mm X-travel envelope. The +/-25 degree taper capability at 130 mm plate thickness covers standard requirements for progressive die, extrusion die, and mold component wire EDM applications.
With a 1,050 x 710 mm (41.3 x 28.0 in) work tank accommodating workpieces up to 800 x 570 x 340 mm, the AL600P handles die plates and mold components that mid-range 400mm-class machines cannot. At 4,600 kg (10,141 lb) and a 2,575 x 2,960 mm footprint, the AL600P remains practical for most toolroom installations.
Pricing typically falls in the $145,000-$210,000 range. The AL600P competes with the Mitsubishi MV2400R, Makino U6, and GF AgieCharmilles CUT E 600.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 600 mm (23.6 in) |
| Y-Axis Travel | 400 mm (15.75 in) |
| Z-Axis Travel | 350 mm (13.78 in) |
| U Axis | +/-75 mm (+/-2.95 in) |
| V Axis | +/-75 mm (+/-2.95 in) |
| Max Taper Angle | ±25°(plate thickness：130mm) |
| Max Workpiece Size Flushing | 800 x 570 x 340 mm (31.5 x 22.4 x 13.4 in) |
| Max Workpiece Size Submerged | 800 x 570 x 280 mm (31.5 x 22.4 x 11.0 in) |
| Max Workpiece Weight | 1,000 kg (2,205 lb) |
| Work Tank Dimensions | 1,050 x 710 mm (41.3 x 28.0 in) |
| Wire Diameter Range | 0.05 - 0.30 mm (0.002 - 0.012 in) |
| Wire Tension | 3 ～ 23 |
| Max Wire Feed Rate | 420 mm/sec |
| Drive System | 4-axis linear motor (X, Y, U, V) |
| CNC Control | Sodick SPW control with i Groove+ |
| Power Input | 3-phase 50/60 Hz, 9 kVA normal / 13 kVA max |
| Machine Dimensions | 2,575 x 2,960 x 2,345 mm (101.4 x 116.5 x 92.3 in) |
| Machine Weight | 4,600 kg (10,141 lb) |
| Accuracy Guarantee | 10-year positioning accuracy guarantee |
| Work Tank Inner Dimensions W X D | 1050 x 710 |
| Axis Stroke Xyz | 600 x 400 x 350 |
| U X V Axis Travel | 150 x 150 |
| Max Workpiece Dimensionsduring Flushing Machiningw X D X H | 800 x 570 x 340 |
| Max Workpiece Dimensionsduring Submerged Machiningw X D X H | 800 x 570 x 280 |
| Max Weight Of Workpieceduring Flushing Machiningkg | 1000 |
| Max Weight Of Workpieceduring Submerged Machiningkg | 1000 |
| Wire Electrode Diameter | 0.05 ～ 0.3*1 |
| Maximum Wire Feed Rate | 420 |
| Distance From Floor Surface To Upper Surface Of Table | 995 |
| Machine Tool Dimensions W X D X H | 2575 x 2960 x 2345 |
| Machine Installation Dimensions W X D | 3860 x 4245 |
| Total Unit Weightkg | 4600 |
| Total Power Input | 3-phase 50/60 Hz Normal Use 9 kVA Maximum Use 13 kVA*2 |
Specifications sourced from sodick.co.jp — verified 2026-03-28
Strengths & Limitations
Strengths
- 600 x 400 x 350 mm travel handles medium-to-large die plates that 400mm-class wire EDMs cannot accommodate
- Linear motor drives on all four axes eliminate backlash and wear, backed by 10-year positioning guarantee
- Smart Pulse generator delivers faster cutting speeds over the standard AL600G variant
- i Groove+ corner control maintains dimensional accuracy across the full 600 mm X-travel
- 1,000 kg workpiece capacity supports heavy die plates and large mold components
- Wire diameter range from 0.05 to 0.30 mm covers fine detail through standard production
Limitations
- At 4,600 kg and 2,575 x 2,960 mm footprint, requires significantly more floor space than 400mm-class machines
- Premium pricing over the AL600G may not be justified if Smart Pulse speed is not needed
- North American service network is smaller than Mitsubishi MC Machinery in some regions
- 350 mm Z-axis may still limit shops cutting very tall workpieces
Best For
Frequently Asked Questions
01
The AL600P features the premium Smart Pulse generator for faster cutting. The AL600G uses the standard Digital HF generator with the same travel and linear motor drives.
02
The AL600P has 600 vs 400 mm X, 400 vs 300 mm Y, 350 vs 250 mm Z, and 1,000 vs 500 kg capacity. Both share Smart Pulse and i Groove+.
03
Yes. Supports +/-25 degree tapers at 130 mm plate thickness with 150 x 150 mm U/V travel.
04
Lead times typically range from 8-16 weeks depending on configuration and dealer stock.
