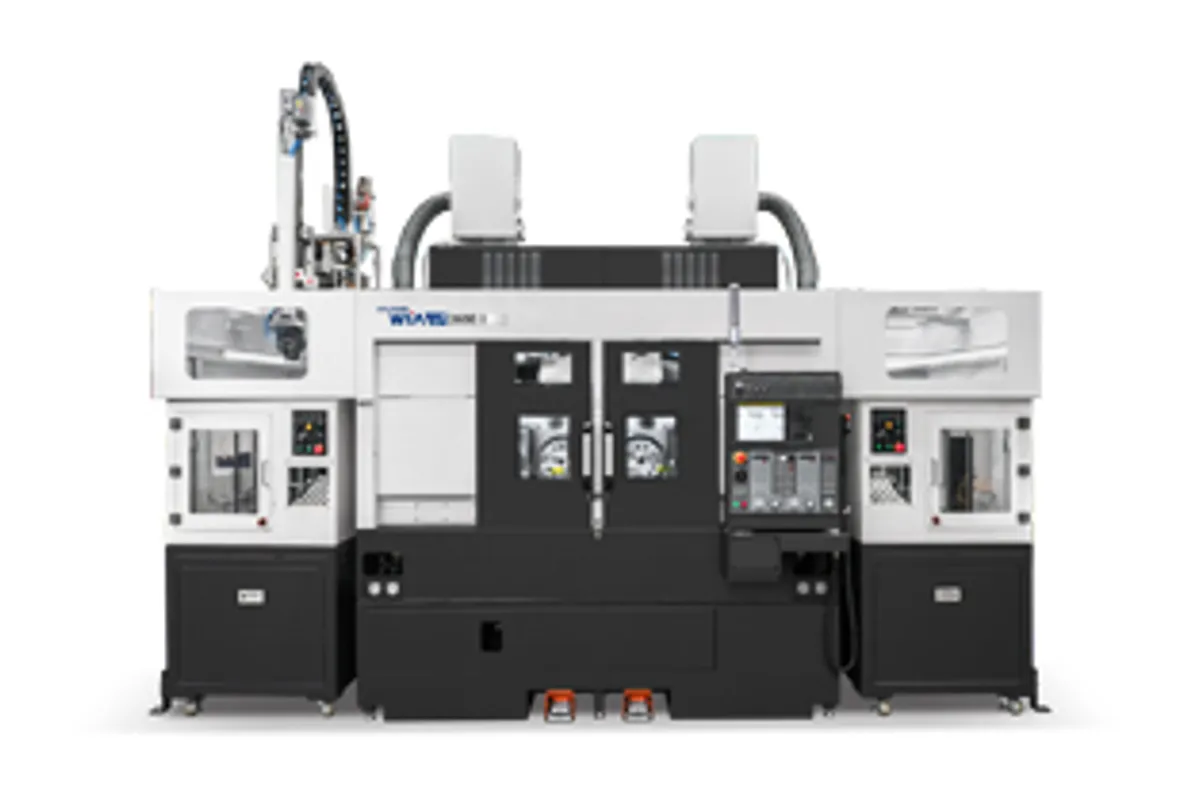

Hyundai WIA LF2600 II Series
Key Specifications
X Travel
Z Travel
Max Spindle
Rapid Traverse
Spindle Power
Max Turn Length
Overview
The Hyundai WIA LF2600 II Series is a front-loading CNC turning center designed for high-volume production of medium-diameter chucked parts. The LF designation indicates a front-loading configuration where the workpiece is loaded from the front of the machine, enabling integration with gantry loaders and robotic automation for unmanned production. With a 10-inch chuck, 360 mm (14.2 in) maximum turning diameter, and twin 10-station turrets, the LF2600 II is engineered for high-throughput production cells.
The spindle delivers 3,500 RPM with 15/11 kW (20/15 hp) via belt drive, providing solid torque for medium-diameter turning of steel, stainless, and cast iron components. The twin turret configuration with 2 x 10 tool stations allows simultaneous cutting operations on the same workpiece, dramatically reducing cycle times compared to single-turret machines. Box way construction on the slide provides the rigidity and vibration damping necessary for consistent surface finishes during production runs.
The LF2600 II features an improved Z-axis structure for increased rigidity compared to the previous generation, and offers a choice between roller LM guide and box guideway configurations depending on application requirements. Rapid traverse rates of 24 m/min (945 ipm) on both X and Z axes keep non-cutting time short. The machine runs on Fanuc's latest controller, maintaining operator familiarity across the Hyundai WIA fleet.
Positioned for automotive tier suppliers, hydraulic component manufacturers, and production shops running high-volume turning operations, the LF2600 II Series competes with the Emag VL series and Okuma 2SP-V turning centers. New machines typically price between $150,000 and $220,000 depending on automation configuration.
Full Specifications
| Parameter | Value |
|---|---|
| Max Turning Diameter | 360 mm (14.2 in) |
| Max Turning Length | mm |
| Chuck Size | inch |
| Max Spindle Speed | 3,500 RPM |
| Spindle Motor Power | 15/11 kW (20/15 hp) |
| Spindle Torque | N.m |
| Turret Stations | 2 x 10 (twin turret) |
| Tool Size | mm |
| Guideway Type | Box ways (LM guide option available) |
| Rapid Traverse Rate | 24/24 m/min (945 ipm) X/Z |
| Spindle Drive | Belt |
| X-Axis Travel | 190 mm (7.5 in) |
| Z-Axis Travel | 200 mm (7.9 in) |
| Loading Type | Front loading |
| CNC Control | Fanuc 0i-TF Plus |
| Description | Unit |
| Max Turning Dia | mm |
| Spindle Rpm | r/min |
| Spindle Output | kW |
| Travel | mm |
| Rapid Travel | m/min |
| No Of Tools | EA |
| Milling Tool Speed | r/min |
| Type Of Business | Business Type 1VehiclesIT/ElectronicsMachinery/ShipbuildingComplex & Precise PartsDie&Mold IndustryEnergyOthersBusiness Type 2 |
| E Mail | @ |
Specifications sourced from wiamachine.com — verified 2026-03-28
Strengths & Limitations
Strengths
- Twin turret with 2 x 10 tool stations enables simultaneous cutting on both sides of the workpiece, reducing cycle times by up to 40% versus single-turret machines
- Front-loading configuration integrates seamlessly with gantry loaders and robotic automation for unmanned production shifts
- Box way construction delivers superior vibration damping and rigidity for consistent surface finishes in production turning
- Improved Z-axis structure in the II generation provides measurably better rigidity than the original LF2600
- Choice between roller LM guide and box guideway lets shops optimize for speed or rigidity depending on application
- Fanuc control maintains operator familiarity and access to the industry's largest pool of qualified CNC programmers
Limitations
- 200 mm maximum turning length limits the machine to short, disc-shaped parts -- not suited for shaft-type workpieces
- Front-loading configuration adds complexity and cost compared to standard turning centers when automation is not planned
- 3,500 RPM maximum spindle speed is lower than compact lathes, limiting surface speed on very small diameter finishing passes
- Hyundai WIA's North American dealer network is smaller than Mazak, Haas, or DMG MORI for field service response
Best For
Frequently Asked Questions
01
New LF2600 II Series machines typically price between $150,000 and $220,000 depending on turret configuration, automation integration (gantry loader, parts conveyor), and options. A fully automated cell with gantry loader can approach $275,000-$300,000. The machine is competitively priced against European front-loading VTL alternatives from Emag and Index.
02
LF stands for Front Loading -- the workpiece is loaded from the front of the machine rather than through the spindle bore or from the side. This configuration is optimized for automated production where a gantry loader or robot picks parts from a conveyor and loads them directly into the chuck from the front.
03
The LF2600 II has two independent turrets, each with 10 tool stations. Both turrets can engage the workpiece simultaneously -- for example, one turret rough-turning the OD while the other faces or bores the ID. This parallelism reduces cycle time significantly. The Fanuc control manages multi-channel programming to coordinate both turrets without collision.
04
No. The LF2600 II has a maximum turning length of only 200 mm (7.9 in), making it suited exclusively for short, disc-shaped, or flanged parts. For shaft-type workpieces requiring longer turning lengths, the Hyundai WIA L-series horizontal turning centers (L200A, L300A, L400A) are the appropriate choice.
