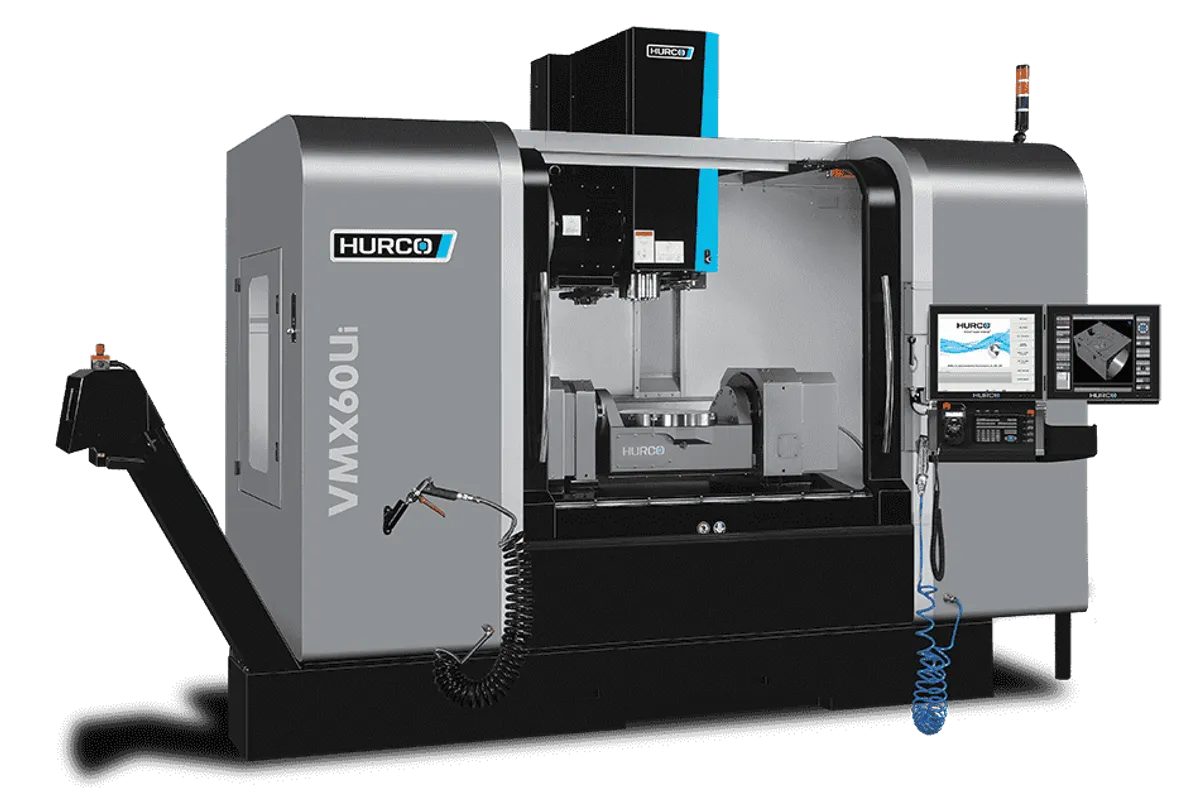

Hurco VMX60Ui

$250,000 - $330,000 (new) | $140,000 - $210,000 (used) Updated 2025-03-15

Key Specifications

X Travel

1,524 mm (60 in)

Y Travel

660 mm (26 in)

Z Travel

520 mm (20.5 in)

Max Spindle

12,000 RPM

Spindle Taper

CAT 40 / Big Plus

Tool Capacity

Overview

The Hurco VMX60Ui is the largest trunnion-table 5-axis machine in Hurco's lineup. With 60 inches of X travel and a 500 mm (19.7 in) diameter trunnion table rated for 400 kg (880 lb), this machine handles the kind of large, heavy parts that force smaller 5-axis machines to make multiple setups.

Travels are 1,524 x 660 x 520 mm (60 x 26 x 20.5 in) with A-axis tilt of +30/-110 degrees and full 360-degree C-axis rotation. The 500 mm table diameter is double the VMX30Ui's 248 mm and well-suited for large aerospace brackets, manifold bodies, and die components. At 400 kg capacity, you can fixture substantial steel and aluminum parts with room for workholding hardware.

The spindle runs 12,000 RPM through a CAT 40 / Big Plus taper, delivering 18 kW (24 hp) of peak power and 237 Nm (175 ft-lbs) of torque at 720 RPM. That's the most powerful standard spindle in Hurco's trunnion lineup, matched to the machine's ability to handle larger, heavier cuts. The 40-tool ATC provides ample cutter storage.

Rapids are necessarily slower than the smaller VMX models due to the longer travel distances: 32 m/min (1,260 ipm) on X/Y and 24 m/min (945 ipm) on Z. Rotary axis rapids split between 16.6 RPM on A and 20.8 RPM on C — reflecting the heavier trunnion table that needs more controlled acceleration.

At 8,546 kg (18,800 lb), this is a substantial machine requiring a proper foundation. Floor space is 5,455 x 4,590 mm (215 x 181 in) — plan your shop layout carefully. Power draw is 34 KVA. WinMax control handles the full range from conversational programming to simultaneous 5-axis from CAM.

New pricing runs $250,000-$330,000. Used VMX60Ui machines trade in the $140,000-$210,000 range. This machine competes with the Mazak VARIAXIS i-700 and DMG MORI DMU 80 P in the large-format 5-axis segment.

Full Specifications

Parameter	Value
X-Axis Travel	1,524 mm (60 in)
Y-Axis Travel	660 mm (26 in)
Z-Axis Travel	520 mm (20.5 in)
A Axis Range	+30° / -110°
C Axis Range	360°
Max Spindle Speed	12,000 RPM
Spindle Taper	CAT 40 / Big Plus
Spindle Motor Power	18 kW (24 hp) peak
Spindle Torque	175 ft. lbs @ 720 rpm (237 Nm @ 720 rpm)
Tool Capacity	40
Rotary Table Diameter	500 mm (19.7 in)
Max Table Load	400 kg (880 lb)
Rapid Traverse Xy	32 m/min (1,260 ipm)
Rapid Traverse Z	24 m/min (945 ipm)
Rotary Axis Rapid A	16.6 RPM
Rotary Axis Rapid C	20.8 RPM
Max Tool Diameter	3 in (76 mm)
Max Tool Length	11.8 in (300 mm)
Max Tool Weight	15.4 lb (7 kg)
Machine Weight	8,546 kg (18,800 lb)
Floor Space	5,455 x 4,590 mm (215 x 181 in)
CNC Control	Hurco WinMax
Travels Capacityx Y Z Axis Travel	60 x 26 x 20.5 in (1524 x 660 x 520 mm)
A Axis Travel	+30°/-110°
C Axis Travel	360°
Spindle Nose To Table	3.5 in / 24 in (90 mm / 610 mm)
Table Diameter	19.7 in (500 mm)
Max Weight On Rotary Trunnion Table	880 lbs (400 kg)
T Slot Size	5 x .71 in (5 x 18 mm)
Spindlemax Spindle Speed	12000 rpm
Peak Spindle Motor	24 hp (18 kW)
Tool Changertool Type	CAT, BT, DIN 40 (CAT/BT 40)
Feedratesrapid Traverse Xyz Axis	1260, 1260, 945 in/min (32, 32, 24 m/min)
Max Programmable Feedrate	945 in/min (24 m/min)
Rapid Traverse A C Axis	16.6, 20.8 rpm
Sizemax Operating Floor Space	214.8 x 180.7 in (5,455 x 4,590 mm)
Machine Height	123 in (3,124 mm)
Machine Weight	18,800 lbs (8,545.5 kg)
Electricalpower Rating Full Load Kva	34 KVA

Specifications sourced from hurco.com — verified 2026-03-28

Strengths & Limitations

Strengths

60-inch X travel with a 500 mm trunnion table handles large parts that won't fit on any smaller Hurco 5-axis
400 kg (880 lb) table capacity supports heavy steel parts and substantial fixturing combinations
237 Nm (175 ft-lbs) of torque at 720 RPM drives through heavy cuts in steel and stainless without stalling
8,546 kg machine weight provides excellent vibration damping and thermal stability for heavy-duty work
WinMax conversational 5-axis programming remains standard even on this large-format platform
40-tool ATC is generous for a machine this size, reducing interruptions on complex multi-tool jobs

Limitations

5,455 x 4,590 mm footprint demands significant floor space that many shops cannot accommodate
32/24 m/min rapids are noticeably slower than smaller VMX models, adding non-cutting time on complex programs
CAT 40 taper may be under-gunned for the heaviest cuts this machine's envelope could support — some shops want 50-taper
34 KVA power and 8,546 kg weight require proper electrical and foundation infrastructure
Lower rotary axis rapids (16.6/20.8 RPM) slow down repositioning between indexed positions

Best For

Aerospace manufacturers machining large structural brackets and wing components in aluminum and titanium Die and mold shops producing large die sets requiring 5-axis access from multiple angles Energy sector shops machining large turbine components, manifolds, and valve bodies Contract manufacturers handling oversized parts that exceed the envelope of standard 5-axis machines Shops producing large fixtures and tooling that benefit from single-setup 5-axis machining Agricultural and heavy equipment manufacturers needing 5-axis capability for large castings and forgings

Frequently Asked Questions

01 What does a Hurco VMX60Ui cost?

New pricing runs $250,000-$330,000 depending on options. With through-spindle coolant, probing, chip conveyor, and coolant chiller, expect the upper end. Used VMX60Ui machines from 2016-2021 sell for $140,000-$210,000 depending on hours and condition.

02 Should I get a 50-taper spindle for a machine this size?

Hurco designed the VMX60Ui with CAT 40 to maintain versatility and keep tooling costs lower. For most work this machine handles, 40-taper is adequate. If you're routinely hogging large volumes of steel or titanium, consider the VMX60SWi (swivel head) or look at 50-taper horizontal machining centers instead.

03 How does the VMX60Ui compare to the Mazak VARIAXIS i-700?

The VARIAXIS i-700 offers a more integrated design with Mazak's SmoothX control, higher spindle speeds (up to 18K RPM), and better thermal compensation. It's priced at $350-500K. The Hurco saves $100-200K and offers conversational programming, but the Mazak is the more refined production machine.

04 What foundation does the VMX60Ui require?

A reinforced concrete pad at least 200 mm thick, designed for the machine's 8,546 kg distributed load plus dynamic forces during cutting. Anchor bolts are essential — Hurco provides a foundation plan with the machine. Improper foundations directly cause accuracy and repeatability problems.

05 Can the 19.7-inch trunnion table handle large tombstone fixtures?

The 500 mm diameter and 400 kg capacity support small-to-medium tombstone setups. For tall tombstones, verify the A-axis clearance envelope — the +30/-110 degree range limits how tall your fixture can be before it contacts the spindle head or guarding. Hurco's sales team can provide clearance diagrams.
