Haas VF-6/40TR

$185,000 - $240,000 Updated 2026-03-19

Key Specifications

X Travel

1,626 mm (64 in)

Y Travel

813 mm (32 in)

Z Travel

762 mm (30 in)

Max Spindle

8,100 RPM

Spindle Taper

CT40 / BT40 / HSK-A63

Tool Capacity

30+1 SMTC

Overview

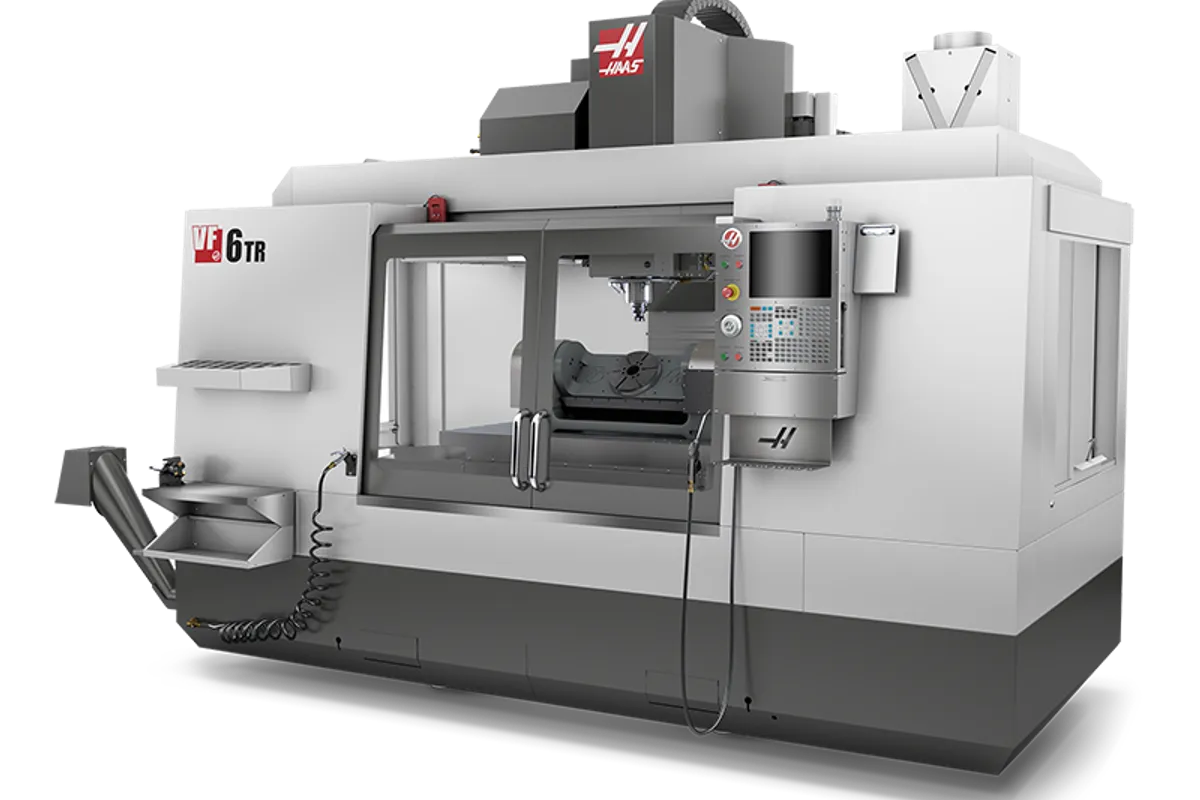

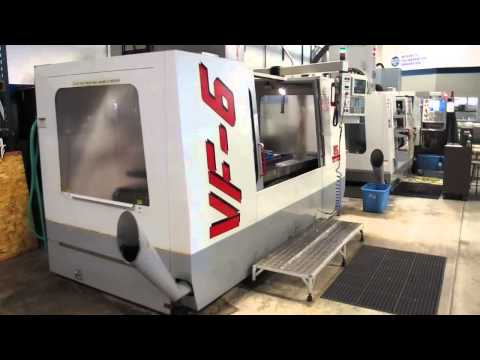

The Haas VF-6/40TR is a 5-axis machining center built on the large-frame VF-6 platform with an integrated dual-axis trunnion table. It brings simultaneous 5-axis capability to the 1,626 mm (64 in) X-travel envelope, giving shops the ability to machine complex multi-axis features on large parts without repositioning. The TR designation means the trunnion is factory-integrated into the machine geometry and calibrated at the factory.

The base VF-6 platform provides 1,626 x 813 x 762 mm (64 x 32 x 30 in) of travel, which is far more than any Haas UMC model offers. The 22.4 kW (30 hp) inline direct-drive spindle runs at 8,100 RPM with 122 Nm (90 ft-lbf) of torque at 2,000 RPM. The CT40/BT40/HSK-A63 taper accepts standard 40-taper tooling.

The trunnion adds a tilting A-axis with +120 to -35 degrees of rotation and a full 360-degree C-axis. The trunnion table diameter is approximately 311 mm (12.25 in) with a 91 kg (200 lb) load capacity on the platter, matching the VF-3TR specifications. The 1,829 x 660 mm (72 x 26 in) main table with 2,041 kg (4,500 lb) capacity gives room to fixture parts alongside the trunnion or use the full table for 3-axis work.

The 30+1 SMTC posts 2.8-second tool-to-tool and 3.6-second chip-to-chip times. Rapid traverse runs at 15.2 m/min (600 ipm). At approximately 9,072 kg (20,000 lb), the VF-6/40TR provides solid rigidity across the large work envelope. For shops that need 5-axis access on parts up to 64 inches long but with smaller 5-axis features, the VF-6/40TR delivers that combination without requiring a purpose-built large 5-axis machine costing $400K or more. Specs derived from Haas Automation published data for the VF-6 and TR platform.

Full Specifications

Parameter	Value
X-Axis Travel	1,626 mm (64 in)
Y-Axis Travel	813 mm (32 in)
Z-Axis Travel	762 mm (30 in)
Spindle Nose To Table Max	864 mm (34 in)
Spindle Nose To Table Min	102 mm (4 in)
Max Spindle Speed	8,100 RPM
Spindle Taper	CT40 / BT40 / HSK-A63
Spindle Motor Power	30.0 hp
Spindle Torque Max	122 Nm (90 ft-lbf) @ 2,000 RPM
Spindle Torque With Gearbox	339 Nm (250 ft-lbf) @ 450 RPM (optional)
Spindle Drive	Inline Direct-Drive
Spindle Cooling	Liquid Cooled
Trunnion Table Diameter	311 mm (12.25 in)
Trunnion Max Weight	91 kg (200 lb)
A Axis Travel	+120° / -35°
C Axis Travel	360° continuous
Trunnion Rapids	80 deg/sec
Tool Capacity	30+1 SMTC
Tool To Tool	2.80 s
Chip To Chip	3.60 s
Max Tool Diameter	2.5 in
Max Tool Weight	12.0 lb
Table Size	1,829 x 660 mm (72 x 26 in)
Table Load Max	2,041 kg (4,500 lb)
T Slots	5 slots, 125 mm (4.92 in) center distance
Max Cutting Feedrate	12.7 m/min (500 ipm)
Rapid Traverse X	15.2 m/min (600 ipm)
Rapid Traverse Y	15.2 m/min (600 ipm)
Rapid Traverse Z	15.2 m/min (600 ipm)
Machine Weight	9,072 kg (20,000 lb)
CNC Control	Haas Next Generation Control (NGC)
Coolant Capacity	95 gal
Air Required	4 scfm @ 100 psi
Electrical Low	220 VAC 3-phase, 70 A
Electrical High	440 VAC 3-phase, 35 A
Travels	S.A.E
X Axis	64.00 in
Y Axis	32.00 in
Z Axis	30.00 in
A Axis Tilt	± 120 °
B Axis Rotation	360 °
Spindle Nose To Platter	11.0- in
Spindle Nose To Table	4.0 in
Trunnion	S.A.E
Platter Diameter	12.20 in
Max Weight On Platter	500 lb
Max Part Swing	31 in
T Slot Width	0.626 in to 0.630 in
Number Of Std T Slots	5
Rapids On A	50 °/sec
Rapids On B	50 °/sec
Max Cutting A	33 °/sec
Max Cutting B	33 °/sec
Spindle	S.A.E
Max Rating	30.0 hp
Max Speed	8100 rpm
Max Torque	90.0 ft-lbf @ 2000 rpm
Max Torque W Opt Gearbox	250 ft-lbf @ 450 rpm
Drive System	Inline Direct-Drive
Taper	CT40 \| BT40 \| HSK-A63
Bearing Lubrication	Air / Oil Injection
Cooling	Liquid Cooled
Table	S.A.E
Length	64.0 in
Width	28.0 in
T Slot Center Distance	4.92 in
Max Weight On Table	4000 lb
Feedrates	S.A.E
Max Cutting	500 ipm
Rapids On X	600 ipm
Rapids On Y	600 ipm
Rapids On Z	600 ipm
Axis Motors	S.A.E
Max Thrust X	3400 lbf
Max Thrust Y	3400 lbf
Max Thrust Z	5600 lbf
Tool Changer	S.A.E
Type	SMTC
Capacity	30+1
Max Tool Diameter Large	5.0 in
Max Tool Length	16.00 in
General	S.A.E
Air Requirements	S.A.E
Inline Air Hose	3/8 in
Coupler	3/8 in
Air Pressure Min	80 psi
Electrical Specification	S.A.E
Input Ac Voltage Low	220 VAC
Full Load Amps Low	70 A
Input Ac Voltage High	440 VAC
Full Load Amps High	35 A
Dimensions Shipping	S.A.E
Domestic Pallet	195.0 in x 102.0 in x 135.0 in
Export Crate	195.0 in x 105.5 in x 138.5 in
Machine Weight	26100 lb
Domestic Pallet W Ec Option	195 in x 102 in x 141 in
Export Crate W Ec Option	195 in x 106 in x 144 in
Weight W Ec Option	26380 lb

Specifications sourced from haascnc.com — verified 2026-03-28

Strengths & Limitations

Strengths

1,626 mm (64 in) X-travel with integrated trunnion brings 5-axis capability to large parts that no UMC model can reach
Factory-integrated trunnion eliminates the alignment headaches of bolting an aftermarket rotary onto a VF-6
Full 72 x 26-inch table with 4,500 lb capacity still available for 3-axis work alongside the trunnion
Same proven 30 HP spindle and NGC control as the entire VF line with no new learning curve
Significantly lower cost than purpose-built large 5-axis machines from DMG Mori, Hermle, or Matsuura
91 kg (200 lb) trunnion capacity is double the VF-2TR, handling medium-sized 5-axis workpieces

Limitations

91 kg (200 lb) trunnion load limits 5-axis work to medium-sized parts despite the large machine envelope
311 mm (12.25 in) trunnion platter is small relative to the machine size, restricting 5-axis part dimensions
8,100 RPM spindle limits high-speed finishing in aluminum; no SS variant available for the VF-6TR
Trunnion accuracy and rigidity do not match purpose-built 5-axis platforms for production 5-axis work

Best For

Aerospace shops machining large structural parts with localized 5-axis features like pockets, flanges, and undercuts Mold shops needing 5-axis access on large mold bases for undercut machining and electrode clearance Job shops that need both large-format 3-axis VMC capability and occasional 5-axis work on one machine Shops machining long parts with complex end features that require 5-axis access at specific locations Companies evaluating large 5-axis capability without committing to a $400K+ purpose-built machine

Frequently Asked Questions

01 What does a new Haas VF-6/40TR cost?

Base price starts around $185,000. With through-spindle coolant, probing, chip conveyor, and common options, expect $210,000-$240,000. That is roughly half the price of a dedicated large 5-axis machine.

02 How does the VF-6/40TR compare to a Haas UMC-1250?

The UMC-1250 is a purpose-built 5-axis machine with a larger trunnion, higher rigidity, and better accuracy for 5-axis production work. The VF-6/40TR offers more X-travel (64 vs 50 in) and the versatility of a full VMC table for 3-axis work. Choose the UMC-1250 for dedicated 5-axis; the VF-6/40TR for versatility.

03 Can the VF-6/40TR do simultaneous 5-axis machining?

Yes. The integrated A and C axes support full simultaneous 5-axis contouring through the NGC control with RTCP compensation. The machine accepts standard 5-axis G-code from CAM systems like Mastercam, Fusion 360, and NX.

04 What is the maximum part weight on the trunnion?

Maximum weight on the platter is 91 kg (200 lb). The trunnion platter is 311 mm (12.25 in) in diameter. Parts must fit within these constraints when fixtured, though the 72-inch main table can hold additional workpieces for 3-axis operations.
