Haas UMC-1500-Duo

$210,000 - $280,000 Updated 2026-03-12

Key Specifications

X Travel

1,542 mm (60 in)

Y Travel

508 mm (20 in)

Z Travel

508 mm (20 in)

Max Spindle

8100 rpm

Spindle Taper

CT/BT 40 (HSK-A63 optional)

Tool Capacity

30+1 side-mount

Overview

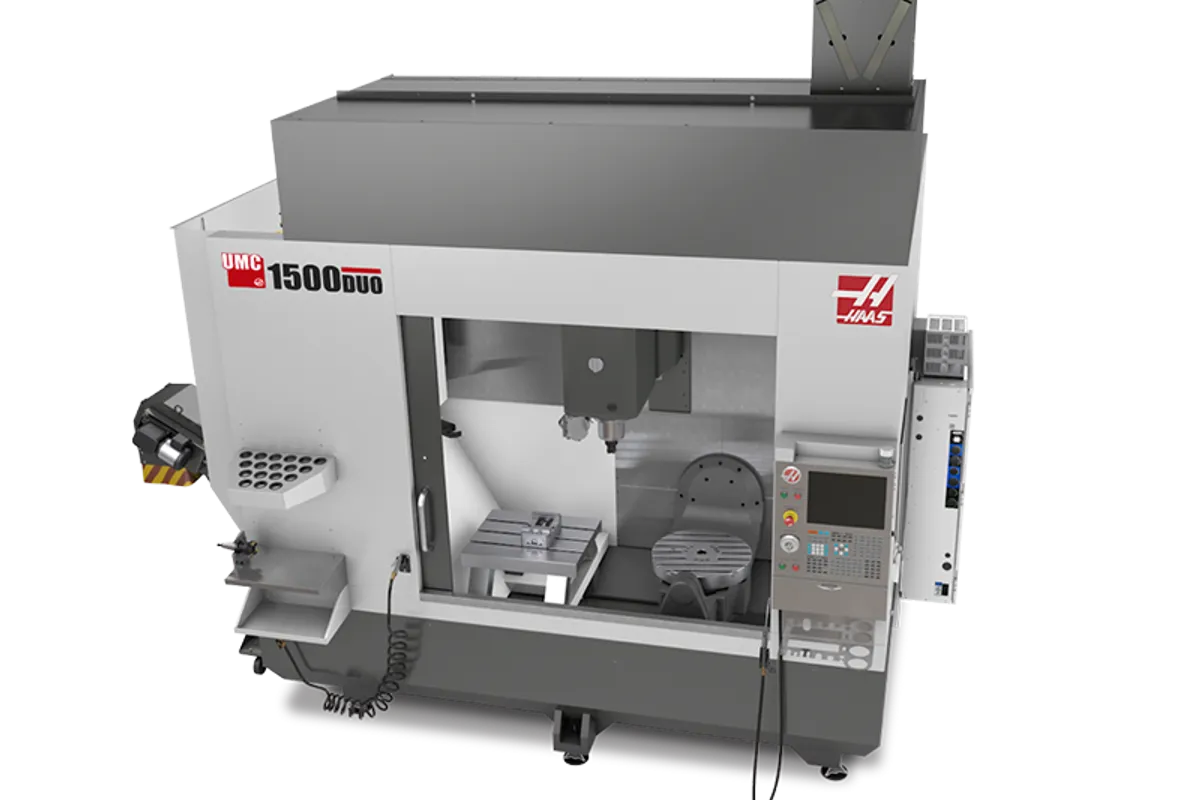

The Haas UMC-1500-Duo puts two machines in one footprint: a full 5-axis universal machining center on the right and a rigid 3-axis T-slot table on the left. The 1,542 mm (60 in) X-travel spans both stations, giving you simultaneous access to a 500 mm (19.7 in) trunnion table rated for 300 kg (660 lb) and a 813 x 457 mm (32 x 18 in) stationary T-slot table for heavy 3-axis work. Set up a vise on the left for roughing prismatic parts while the trunnion runs 5-axis contoured components on the right.

The inline direct-drive spindle delivers 22.4 kW (30 hp) and 122 Nm (90 ft-lb) of torque at 2,000 RPM, topping out at 8,100 RPM standard with a 12,000 RPM option available. The trunnion tilts +120 to -35 degrees and rotates a full 360 degrees at 50 degrees per second, supporting both 3+2 positioning and simultaneous 5-axis contouring. A 30+1 side-mount toolchanger keeps tool-to-tool times at 2.8 seconds average.

The dual-station concept is where the UMC-1500-Duo earns its keep. Shops that run a mix of 3-axis and 5-axis work no longer need two separate machines. The T-slot table accepts standard vises and fixtures for heavy material removal where rigidity matters more than rotary capability. Meanwhile, the trunnion handles complex multi-angle parts. One operator, one control, one machine footprint.

Haas runs the NGC control across the entire lineup, so programmers familiar with any Haas mill or lathe can step onto the UMC-1500-Duo without retraining. The 22.9 m/min (900 ipm) rapid traverse is slower than dedicated 5-axis platforms from Makino or DMG Mori, but the dual-station flexibility and Haas pricing offset that gap for shops prioritizing versatility over raw cycle time.

At roughly $210,000-$280,000 configured, the UMC-1500-Duo costs less than buying separate 3-axis and 5-axis machines. For job shops running mixed work that spans simple vise setups and complex 5-axis contours, this machine consolidates two capital expenditures into one. Specs sourced from Haas Automation published data.

Full Specifications

Parameter	Value
X-Axis Travel	1,542 mm (60 in)
Y-Axis Travel	508 mm (20 in)
Z-Axis Travel	508 mm (20 in)
B Axis Tilt	S.A.E
C Axis Rotation	S.A.E
B C Axis Speed	50°/sec
Max Spindle Speed	8100 rpm
Spindle Taper	CT/BT 40 (HSK-A63 optional)
Spindle Motor Power	30.0 hp
Spindle Torque	122 Nm (90 ft-lb) @ 2,000 RPM
Tool Capacity	30+1 side-mount
Tool Change Time	2.8 sec tool-to-tool / 3.6 sec chip-to-chip
Trunnion Table Diameter	500 mm (19.7 in)
Trunnion Table Load	300 kg (660 lb)
T Slot Table	813 x 457 mm (32 x 18 in)
Rapid Traverse Rate	22.9 m/min (900 ipm)
Max Cutting Feedrate	16.5 m/min (650 ipm)
Coolant Capacity	55 gal
CNC Control	Haas Next Generation Control (NGC)
Travels	S.A.E
X Axis	60.00 in
Y Axis	20.00 in
Z Axis	20.00 in
Spindle Nose To Platter	4.0 in
Spindle	S.A.E
Max Rating	30.0 hp
Max Speed	50 °/sec
Max Torque	90.0 ft-lbf @ 2000 rpm
Drive System	Inline Direct-Drive
Taper	CT40 \| BT40 \| HSK-A63
Bearing Lubrication	Air / Oil Injection
Cooling	Liquid Cooled
Travel	360 °
Torque	1854 ft-lbf
Brake Torque	900 ft-lbf
Max Part Swing	27.0 in
Platter	S.A.E
Platter Diameter	19.70 in
Max Weight On Platter	660 lb
T Slot Width	0.626 in to 0.630 in
Number Of Std T Slots	3
T Slot Center Distance	4.92 in
Table	S.A.E
Length	32.0 in
Width	18.0 in
Feedrates	S.A.E
Max Cutting	650 ipm
Rapids On X	900 ipm
Rapids On Y	900 ipm
Rapids On Z	900 ipm
Axis Motors	S.A.E
Max Thrust X	2750 lbf
Max Thrust Y	2750 lbf
Max Thrust Z	3400 lbf
Tool Changer	S.A.E
Type	SMTC
Capacity	30+1
Max Tool Diameter	2.5 in
Max Tool Diameter Large	5.0 in
Max Tool Length	12.00 in
Max Tool Weight	12.0 lb
Tool To Tool	2.80 s
Chip To Chip	3.60 s
General	S.A.E
Air Requirements	S.A.E
Air Required	4 scfm @ 100 psi
Inline Air Hose	3/8 in
Coupler	3/8 in
Air Pressure Min	80 psi
Electrical Specification	S.A.E
Input Ac Voltage Low	220 VAC
Full Load Amps Low	70 A
Input Ac Voltage High	440 VAC
Full Load Amps High	35 A
Dimensions Shipping	S.A.E
Domestic Pallet	188.0 in x 91.0 in x 109.0 in
Export Pallet	185.0 in x 91.0 in x 101.0 in
Machine Weight	20100 lb
Domestic Pallet W 701 Smtc	188.0 in x 91.0 in x 125.0 in
Weight W 701 Smtc	20,120 lb
Export Crate For Sheet Metal	114 in x 69 in x 43 in
Weight For Sheet Metal Crate	1400 lb

Specifications sourced from haascnc.com — verified 2026-03-28

Strengths & Limitations

Strengths

Dual-station design combines 5-axis trunnion and 3-axis T-slot table in one machine, eliminating the need for two separate machines
60-inch X-travel provides full access to both work stations without repositioning, enabling mixed 3-axis and 5-axis production runs
Same 30 hp inline direct-drive spindle and 500 mm trunnion table proven in the UMC-750 platform
Costs less than purchasing separate 3-axis VMC and 5-axis UMC, saving floor space and capital
Familiar Haas NGC control means zero retraining for shops already running Haas equipment
Stationary T-slot table provides rigid fixturing for heavy roughing operations that would stress a trunnion setup

Limitations

22.9 m/min rapid traverse is slower than dedicated 5-axis machines from Makino, Hermle, and DMG Mori running at 40-60 m/min
300 kg trunnion table load capacity is modest compared to larger 5-axis platforms with 500+ kg capacity
30+1 tool capacity can feel limiting when running complex jobs on both stations that require different tool sets
No Heidenhain or Siemens control option limits appeal for shops standardized on European control platforms
BT/CT 40 taper limits cutting rigidity for aggressive roughing compared to HSK-A63 or CAT 50 alternatives

Best For

Job shops running a mix of 3-axis prismatic work and 5-axis contoured parts who want both capabilities in one footprint Aerospace subcontractors machining aluminum structural components on the T-slot table and complex brackets on the trunnion Shops consolidating a 3-axis VMC and a separate 5-axis machine into a single capital purchase Production environments where one operator needs to run multiple part families with different fixturing requirements Haas ecosystem shops adding 5-axis capability without sacrificing existing 3-axis vise-work capacity Educational facilities teaching both 3-axis and 5-axis machining on a single platform

Frequently Asked Questions

01 What does a Haas UMC-1500-Duo cost?

Base price starts around $210,000. Adding the 12,000 RPM spindle, HSK-A63 taper, through-spindle coolant, wireless probing, and high-speed machining options pushes the configured price to $250,000-$280,000. The UMC-1500SS-Duo variant with faster rapids and higher spindle speed commands an additional premium. Used UMC-1500-Duo machines from 2021-2023 sell in the $140,000-$200,000 range.

02 How does the UMC-1500-Duo compare to the standard UMC-750?

The UMC-1500-Duo uses the same trunnion table and spindle as the UMC-750 but adds a stationary T-slot table and extends X-travel to 1,542 mm (60 in). The trade-off is a larger footprint and higher price for the dual-station flexibility. If all your work fits on the trunnion, the standard UMC-750 is more cost-effective. The Duo makes sense when you need both 3-axis and 5-axis capability without buying two machines.

03 Can both stations run simultaneously?

No. The spindle serves one station at a time. The benefit is setup flexibility: load a vise job on the T-slot table while the trunnion runs a 5-axis cycle, then swing the spindle over to the other station. This reduces setup time between different job types but does not provide simultaneous cutting on both tables.

04 What is the UMC-1500SS-Duo?

The SS (Super Speed) variant offers faster rapid traverse rates, higher trunnion feed rates, and optimized servo tuning for improved surface finish during simultaneous 5-axis contouring. The SS commands a $20,000-$30,000 premium over the standard UMC-1500-Duo and is worth considering for shops where cycle time and surface finish quality justify the added cost.

05 Is the T-slot table rigid enough for heavy roughing?

Yes. The stationary T-slot table is bolted directly to the base casting, providing more rigidity than the trunnion for heavy material removal. Shops use it for roughing operations with standard vises and fixtures where rigidity matters more than rotary positioning. It accepts standard T-slot fixtures and can handle aggressive face milling and slotting operations.
