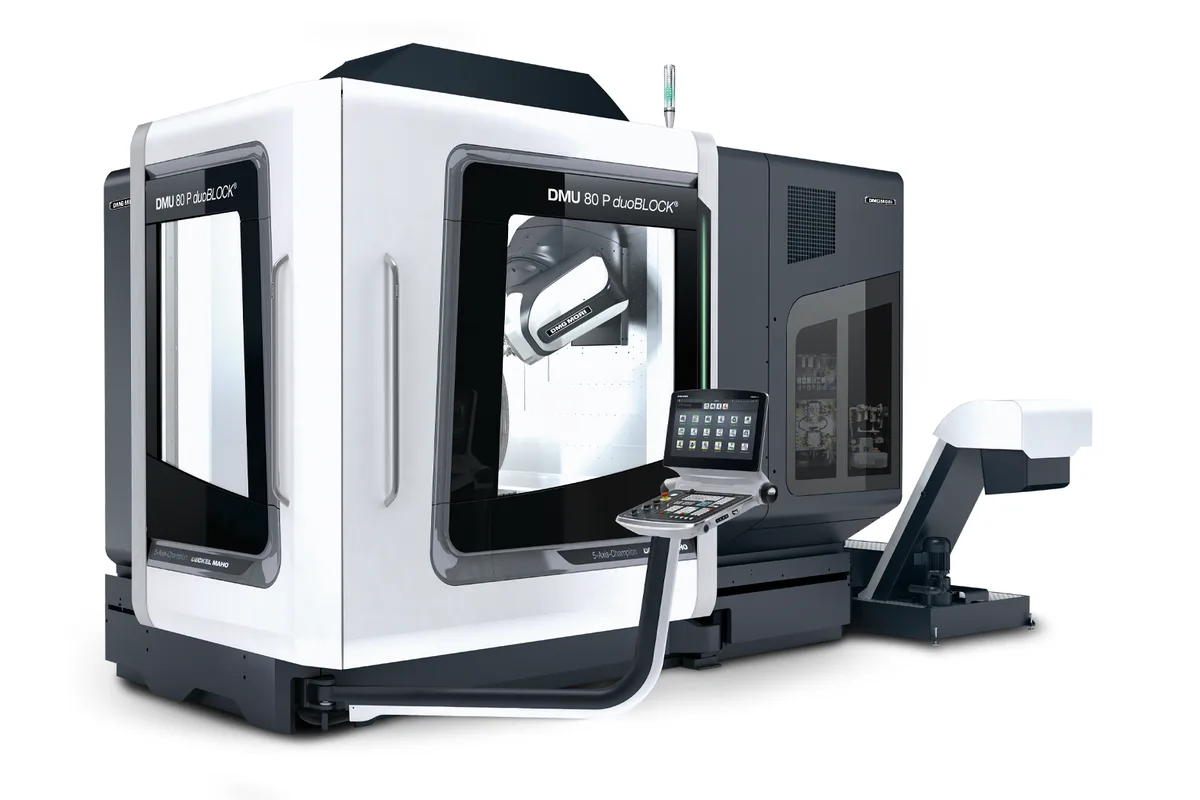

DMG Mori DMU 80P duoBLOCK

$450,000 - $700,000+ Updated 2026-03-11

Key Specifications

X Travel

800 mm (31.5 in)

Y Travel

1,050 mm (41.3 in)

Z Travel

850 mm (33.5 in)

Max Spindle

15,000 RPM (20,000 RPM optional)

Spindle Taper

HSK-A63

Tool Capacity

60 (expandable to 120/363)

Overview

The DMG Mori DMU 80P duoBLOCK is the entry point into DMG Mori's premium duoBLOCK family, and it earns that badge with a construction philosophy that puts rigidity above everything else. The split-bed duoBLOCK design bolts the headstock column and table support as two independent cast-iron blocks onto a shared base, which gives the machine a stiffness-to-footprint ratio that monoBLOCK and C-frame designs simply cannot match. That rigidity pays off when you push hard into titanium, Inconel, or hardened tool steel at full depth of cut.

Axis travels sit at 800 x 1,050 x 850 mm (31.5 x 41.3 x 33.5 in), giving you a generous Y-stroke for tall parts and deep cavities. The swivel rotary table handles workpieces up to 950 mm (37.4 in) in diameter, 1,450 mm (57.1 in) tall, and 1,800 kg (3,968 lb). That table capacity alone puts it in a different weight class from the DMU 50 or Hermle C 250.

The standard speedMASTER spindle delivers 15,000 RPM through an HSK-A63 taper with 28 kW (37.5 hp), suitable for general 5-axis work in aluminum, steel, and stainless. Shops cutting aerospace alloys all day can spec the powerMASTER motor spindle at 77 kW (103 hp) and 1,000 Nm of torque, or the 5X torqueMASTER at 1,300 Nm (959 ft-lb) and 37 kW (50 hp) for heavy hogging in hard metals. Rapid traverse hits 60 m/min (2,362 ipm) across all linear axes.

The 4th generation duoBLOCK brought a 30 percent increase in overall rigidity through size 55 linear guideways in the Y-axis and larger YRT bearings in the B and C axes. Water-cooled ball screws and feed drives, plus DMG Mori's SGS (Spindle Growth Sensor), keep thermal drift in check across long production runs. Machine accuracy lands at 4 microns with the standard package.

The compact wheel magazine starts at 60 pockets and scales to 120 or even 363 tools with the CTS (Central Tool Storage) option, with tool-to-tool change times under 0.5 seconds. The FD (Flat Direct) table variant adds mill-turn capability with DirectDrive rotational speeds up to 800 RPM, letting you consolidate turning and milling in a single setup.

Control options include Siemens Sinumerik One and Heidenhain TNC7, both running under CELOS X with a 24-inch multi-touch panel. At roughly 13,000 kg (28,660 lb) and a 3,400 x 5,400 mm footprint, you need solid floor prep and rigging, but the machine availability rate of 96 percent keeps it earning once it is installed. Pricing for a new 4th generation DMU 80P duoBLOCK starts around $450,000 and can push past $700,000 with the powerMASTER spindle, expanded magazine, pallet automation, and full probe package. Used 3rd generation machines from 2015-2019 trade in the $200,000-$350,000 range. Specs sourced from DMG Mori published data and verified dealer listings.

Full Specifications

Parameter	Value
X-Axis Travel	800 mm (31.5 in)
Y-Axis Travel	1,050 mm (41.3 in)
Z-Axis Travel	850 mm (33.5 in)
Max Spindle Speed	15,000 RPM (20,000 RPM optional)
Spindle Taper	HSK-A63
Spindle Motor Power	28 kW (37.5 hp) standard; 77 kW (103 hp) powerMASTER
Spindle Torque	121 Nm standard; 1,000 Nm powerMASTER; 1,300 Nm torqueMASTER
Table Diameter	800 mm (31.5 in)
Table Load Capacity	1,800 kg (3,968 lb)
Max Workpiece Diameter	950 mm (37.4 in)
Max Workpiece Height	1,450 mm (57.1 in)
B Axis Range	-30° to +180°
C Axis Range	360° (endless with DirectDrive)
Tool Capacity	60 (expandable to 120/363)
Rapid Traverse Rate	60 m/min (2,362 ipm)
Positioning Accuracy	4 µm
Machine Weight	13,000 kg (28,660 lb)
Floor Space	3,400 x 5,400 mm (133.9 x 212.6 in)
CNC Control	Siemens Sinumerik One / Heidenhain TNC7 (CELOS X)
Developer	Apple
Popularity	4.2\|3419Votes

Strengths & Limitations

Strengths

DuoBLOCK split-bed construction delivers 30 percent more rigidity than monoBLOCK designs, directly translating to heavier cuts and tighter tolerances in hard metals
1,800 kg table load capacity and 950 mm workpiece diameter handle mid-size aerospace and energy components that smaller 5-axis machines cannot touch
Three spindle tiers from 15,000 RPM speedMASTER to 1,300 Nm torqueMASTER let you configure the machine for aluminum speed work or titanium hogging
Wheel magazine scales from 60 to 363 tools with sub-0.5-second chip-to-chip times, supporting lights-out production without manual intervention
FD variant adds mill-turn with 800 RPM DirectDrive table, consolidating turning and milling setups on a single machine
Water-cooled ball screws, feed drives, and SGS spindle growth sensor maintain 4-micron accuracy through long production runs
4th generation improvements include size 55 guideways and larger B/C axis bearings for measurably better surface finish under heavy loads

Limitations

Starting at $450K and commonly configured above $600K, it is a significant capital investment that smaller job shops may struggle to justify without dedicated high-value work
At 13,000 kg and a 3.4 x 5.4 meter footprint, installation requires serious floor prep, a crane, and careful rigging planning
DMG Mori service responsiveness varies significantly by region; Practical Machinist users report wait times from days to weeks depending on local support quality
German-built duoBLOCK machines have more complex cooling and compensation systems than Japanese-built DMG Mori models, adding maintenance overhead

Best For

Aerospace manufacturers cutting titanium, Inconel, and aluminum structural components up to 1,800 kg in simultaneous 5-axis Energy sector shops machining turbine blades, impellers, and blisks that demand high rigidity and torque at depth Die and mold shops running complex 3D contour finishing where the duoBLOCK stiffness delivers superior surface quality Production environments needing mill-turn consolidation on the FD variant to eliminate secondary lathe operations Shops stepping up from a DMU 50 or monoBLOCK that need a larger work envelope and heavier cutting capability without jumping to a gantry

Frequently Asked Questions

01 What does a DMG Mori DMU 80P duoBLOCK cost new?

A 4th generation DMU 80P duoBLOCK starts around $450,000 with the standard 15K RPM speedMASTER spindle and 60-tool magazine. Most production configurations land between $550,000 and $700,000 with the powerMASTER or torqueMASTER spindle, expanded magazine, through-spindle coolant, probe package, and glass scales. The FD mill-turn variant adds another premium. Used 3rd generation machines from 2015-2019 sell in the $200,000-$350,000 range depending on hours and condition.

02 What is the difference between duoBLOCK and monoBLOCK?

The duoBLOCK design uses two independent cast-iron blocks (headstock column and table support) bolted to a shared base, while the monoBLOCK is a single-piece cast bed. The duoBLOCK delivers roughly 30 percent higher stiffness, handles heavier workpieces (1,800 kg vs 600 kg on the DMU 65 monoBLOCK), and offers a larger work envelope. The trade-off is size, weight, cost, and complexity. If your parts fit in a monoBLOCK, the monoBLOCK is the more practical choice. When you outgrow it, the duoBLOCK is where you go.

03 Which spindle should I choose for the DMU 80P?

Match the spindle to your primary material. The standard 15,000 RPM / 28 kW speedMASTER handles aluminum and general steel work well. For production titanium and Inconel, the powerMASTER at 77 kW / 1,000 Nm gives you the torque and power to hold aggressive depths of cut. The 5X torqueMASTER at 1,300 Nm is purpose-built for heavy roughing in hard metals where torque matters more than speed. Most aerospace shops spec the powerMASTER as a balanced all-rounder.

04 How does the DMU 80P compare to the DMU 50?

The DMU 80P plays in a completely different league. It offers 800 mm X-travel vs 650 mm, 1,050 mm Y-travel vs 520 mm, 1,800 kg table capacity vs 300 kg, and spindle options up to 1,300 Nm vs 200 Nm. The duoBLOCK construction is fundamentally stiffer than the DMU 50's design. But it costs roughly 2-3x more, weighs 2.5x more, and takes up significantly more floor space. The DMU 50 remains the right first 5-axis machine for most shops; the DMU 80P is what you step up to when part size and cutting forces demand it.

05 Can the DMU 80P do mill-turn operations?

Yes, but only the FD (Flat Direct) variant. The DMU 80P FD duoBLOCK mounts a DirectDrive table capable of 800 RPM continuous rotation, enabling turning operations alongside 5-axis milling. This lets you consolidate what would otherwise be a separate lathe setup. The standard DMU 80P without the FD option has a clamped C-axis that positions but does not rotate continuously for turning.
