Haas EC-1600ZT
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
Overview

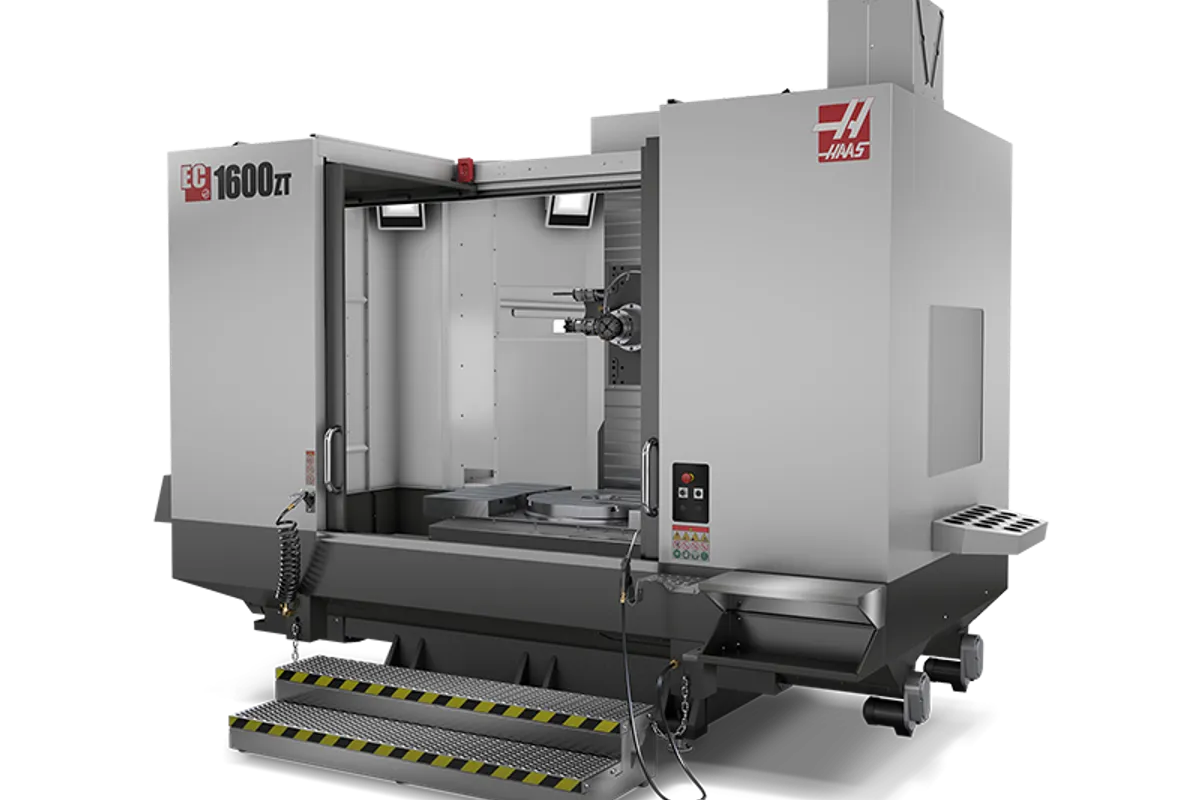

The Haas EC-1600ZT is a large-frame 50-taper horizontal machining center with a zero-turn (ZT) table configuration. With 1626 x 1270 x 813 mm (64 x 50 x 32 in) of travel and a 1626 x 813 mm (64 x 32 in) table that handles up to 4,536 kg (10,000 lb), this machine is built for big, heavy parts that don't fit on pallet-changing HMCs.
The ZT designation means the table doesn't rotate — it's a fixed horizontal table like you'd find on a large VMC, but with the spindle mounted horizontally. This gives you the chip evacuation and four-sided access advantages of horizontal machining without the complexity and limitations of a rotary table. For shops machining large plates, blocks, and structural components, the ZT configuration is often more practical than a rotating pallet.
The 2-speed gearbox spindle delivers 460 Nm (340 ft-lbf) at 700 RPM with 22.4 kW (30 hp) and a max speed of 7,500 RPM. The 50+1 SMTC handles tools up to 13.6 kg (30 lb), 254 mm (10 in) diameter with adjacent empty, and 508 mm (20 in) max length. Tool-to-tool averages 8.0 seconds and chip-to-chip averages 12.6 seconds — slower than smaller EC machines, reflecting the larger tool changer and heavier tools.
An integrated A-axis with 30 degrees of tilt in each direction and 2,712 Nm (2,000 ft-lbf) of continuous torque is available, enabling angled machining without refixturing. The A-axis handles the full 4,536 kg table load, uses a 500:1 gear ratio, and tilts at 36 degrees per second.
At 13,472 kg (29,700 lb) and a base price around $430,000, the EC-1600ZT delivers large-frame horizontal machining at a fraction of the cost of comparable machines from Mazak, Okuma, or DMG Mori. Specs sourced from Haas Automation published data.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 1,626 mm (64 in) |
| Y-Axis Travel | 1,270 mm (50 in) |
| Z-Axis Travel | 813 mm (32 in) |
| Max Spindle Speed | 7,500 RPM |
| Spindle Taper | CT50 / BT50 |
| Spindle Motor Power | 30.0 hp |
| Spindle Torque Max | 460 Nm (340 ft-lbf) @ 700 RPM |
| Spindle Drive | 2-Speed Gearbox |
| Table Size | 1,626 x 813 mm (64 x 32 in) |
| Table Load Max | 4,536 kg (10,000 lb) |
| T Slots | 5 slots, 145 mm (5.70 in) center distance |
| A Axis Tilt | ±30 degrees |
| A Axis Torque Continuous | 2,712 Nm (2,000 ft-lbf) |
| A Axis Brake Torque | 5,423 Nm (4,000 ft-lbf) |
| A Axis Gear Ratio | 500:1 |
| A Axis Rapids | 36 deg/sec |
| A Axis Indexing Accuracy | ± 30 arc-sec |
| A Axis Repeatability | 15 arc-sec |
| Tool Capacity | 50+1 SMTC |
| Tool To Tool | 8.00 s |
| Chip To Chip | 12.60 s |
| Max Tool Diameter | 4.0 in |
| Max Tool Length | 20.00 in |
| Max Tool Weight | 30.0 lb |
| Max Cutting Feedrate | 12.7 m/min (500 ipm) |
| Rapid Traverse X | 18.0 m/min (710 ipm) |
| Rapid Traverse Y | 18.0 m/min (710 ipm) |
| Rapid Traverse Z | 18.0 m/min (710 ipm) |
| Machine Weight | 13,472 kg (29,700 lb) |
| CNC Control | Haas Next Generation Control (NGC) |
| Coolant Capacity | 95 gal |
| Air Required | 9 scfm @ 100 psi |
| Electrical Low | 220 VAC 3-phase, 70 A |
| Electrical High | 440 VAC 3-phase, 35 A |
| Travels | S.A.E |
| X Axis | 64.00 in |
| Y Axis | 50.00 in |
| Z Axis | 40.00 in |
| Spindle Centerline To Table | 5.75 in |
| Spindle | S.A.E |
| Max Rating | 5.0 hp |
| Max Speed | 7500 rpm |
| Max Torque | 340.0 ft-lbf @ 700 rpm |
| Drive System | 2-Speed Gearbox |
| Taper | CT or BT 50 |
| Table | 64 in x 32 in |
| Length | 64.0 in |
| Width | 36.0 in |
| T Slot Width | 0.626 in to 0.630 in |
| T Slot Center Distance | 4.92 in |
| Number Of Std T Slots | 7 |
| Max Weight On Table | 10000 lb |
| Integrated 4th Axis | S.A.E |
| Platter Diameter | 30.00 in |
| Travel | 360 ° |
| Max Part Swing | 78.0 in |
| Max Weight On Platter | 10000 lb |
| Rotational Torque | 2000 ft-lbf |
| Backlash | 30 arc-sec |
| Gear Ratio | 500:1 |
| Brake Torque | 4000 ft-lbf |
| Min Resolution | 0.001 ° |
| Indexing Accuracy | ± 30 arc-sec |
| Repeatability | 15 arc-sec |
| Rapids On A | 36 °/sec |
| Max Cutting A | 36 °/sec |
| Feedrates | S.A.E |
| Max Cutting | 500 ipm |
| Rapids On X | 600 ipm |
| Rapids On Y | 600 ipm |
| Rapids On Z | 600 ipm |
| Axis Motors | S.A.E |
| Max Thrust X | 4000 lbf |
| Max Thrust Y | 8000 lbf |
| Max Thrust Z | 8000 lbf |
| General | S.A.E |
| Tool Changer | S.A.E |
| Type | SMTC |
| Capacity | 50+1 |
| Max Tool Diameter Large | 10.0 in |
| Air Requirements | S.A.E |
| Inline Air Hose | 3/8 in |
| Coupler | 3/8 in |
| Air Pressure Min | 80 psi |
| Electrical Specification | S.A.E |
| Input Ac Voltage Low | 220 VAC |
| Full Load Amps Low | 70 A |
| Input Ac Voltage High | 440 VAC |
| Full Load Amps High | 35 A |
| Dimensions Shipping | S.A.E |
| Domestic Pallet | 192.0 in x 166.0 in x 136.0 in |
| Export Crate | 192.0 in x 166.0 in x 140.0 in |
| Machine Weight | 29700 lb |
| Weight Export Crate | 31,400 lb |
| Domestic Pallet W 701 Smtc | 207.5 in x 163.0 in x 140.0 in |
| Weight W 701 Smtc | 31,279 lb |
| Domestic Pallet W Conveyor 701 Smtc | 207.5 in x 163.0 in x 140.0 in |
| Weight W Conveyor 701 Smtc | 32,320 lb |
| Haas Rotary | HAAS MACHINE |
| Ha2ts | EC-1600ZT |
| Ha5c | EC-1600ZT |
| Ha5c T | EC-1600ZT |
| Ha5c2 | EC-1600ZT |
| Ha5c2 T | EC-1600ZT |
| Ha5c3 | EC-1600ZT |
| Ha5c3 T | EC-1600ZT |
| Ha5c4 | EC-1600ZT |
| Ha5c4 T | EC-1600ZT |
| Ha5cs | EC-1600ZT |
| Hqda5 | EC-1600ZT |
| Hrc160 | EC-1600ZT |
| Hrc210 | EC-1600ZT |
| Hrt160 | EC-1600ZT |
| Hrt160 2 | EC-1600ZT |
| Hrt160sp | EC-1600ZT |
| Hrt160ss | EC-1600ZT |
| Hrt200hs | EC-1600ZT |
| Hrt210 | EC-1600ZT |
| Hrt210 2 | EC-1600ZT |
| Hrt210ht | EC-1600ZT |
| Hrt210m | EC-1600ZT |
| Hrt210sp | EC-1600ZT |
| Hrt210ss | EC-1600ZT |
| Hrt210vm | EC-1600ZT |
| Hrt310 | EC-1600ZT |
| Hrt310sp | EC-1600ZT |
| Hrt310ss | EC-1600ZT |
| Hrt450 | EC-1600ZT |
| Hrt630 | EC-1600ZT |
| Hrta5 | EC-1600ZT |
| Hrta6 | EC-1600ZT |
| Lt260 | EC-1600ZT |
| Lt350 | EC-1600ZT |
| T5c | EC-1600ZT |
| T5c2 | EC-1600ZT |
| T5c3 | EC-1600ZT |
| T5c4 | EC-1600ZT |
| Th240 | EC-1600ZT |
| Th450 | EC-1600ZT |
| Tr160 | EC-1600ZT |
| Tr160 2 | EC-1600ZT |
| Tr200y | EC-1600ZT |
| Tr210 | EC-1600ZT |
| Tr310 | EC-1600ZT |
| Tr500ss | EC-1600ZT |
| Trt100 | EC-1600ZT |
| Trt160 | EC-1600ZT |
| Trt210 | EC-1600ZT |
| Trt310 | EC-1600ZT |
| Trt70 | EC-1600ZT |
Specifications sourced from haascnc.com — verified 2026-03-28
Strengths & Limitations
Strengths
- 4,536 kg (10,000 lb) table load handles the heaviest workpieces in the Haas HMC lineup
- 1626 x 1270 x 813 mm travel envelope accommodates large plates, blocks, and structural components
- Zero-turn table simplifies fixturing for large parts that don't need rotary indexing
- Integrated A-axis with 2,712 Nm continuous torque enables angled machining up to 30 degrees
- 50+1 SMTC with 508 mm max tool length handles long boring bars and extended-reach tools
- Base price around $430K is a fraction of comparable large-frame HMCs from Mazak or Okuma
Limitations
- 12.6 sec chip-to-chip is the slowest of any Haas mill, reflecting the large tool changer
- No pallet changer — the ZT is a single-table machine, limiting unattended operation flexibility
- 30 hp spindle may feel underpowered for a machine this size in heavy roughing applications
- 29,700 lb weight requires substantial floor reinforcement and heavy rigging for installation
- Zero-turn table limits access to parts requiring full rotary indexing — consider the EC-1600 for that
Best For
Frequently Asked Questions
01
Base price starts around $430,000. With through-spindle coolant, probing, and other options, expect $480,000-$520,000. The 5-axis EC-1600ZT-5AX starts around $510,000.
02
The EC-1600 is a pallet-changing HMC with a full rotary B-axis. The EC-1600ZT has a fixed zero-turn table with an optional tilt A-axis. The ZT handles 10,000 lb versus the EC-1600's table load, and the ZT's fixed table provides more rigidity for very heavy parts.
03
Zero-turn means the table doesn't rotate. Unlike conventional HMCs with a B-axis rotary table, the EC-1600ZT has a fixed table. The optional A-axis provides tilt capability up to 30 degrees in each direction. This configuration is ideal for large, heavy parts where a rotating table adds unnecessary complexity.
04
The standard EC-1600ZT with A-axis tilt provides 4-axis capability (X, Y, Z plus tilt). For 5-axis, Haas offers the EC-1600ZT-5AX which adds a rotary HRT310 mounted on the tilting table, enabling full simultaneous 5-axis machining.
05
At 13,472 kg before workpieces, plus up to 4,536 kg of part weight, you need reinforced concrete rated for roughly 25,000 kg point loading. Professional rigging and a structural engineering review are essential before installation.
