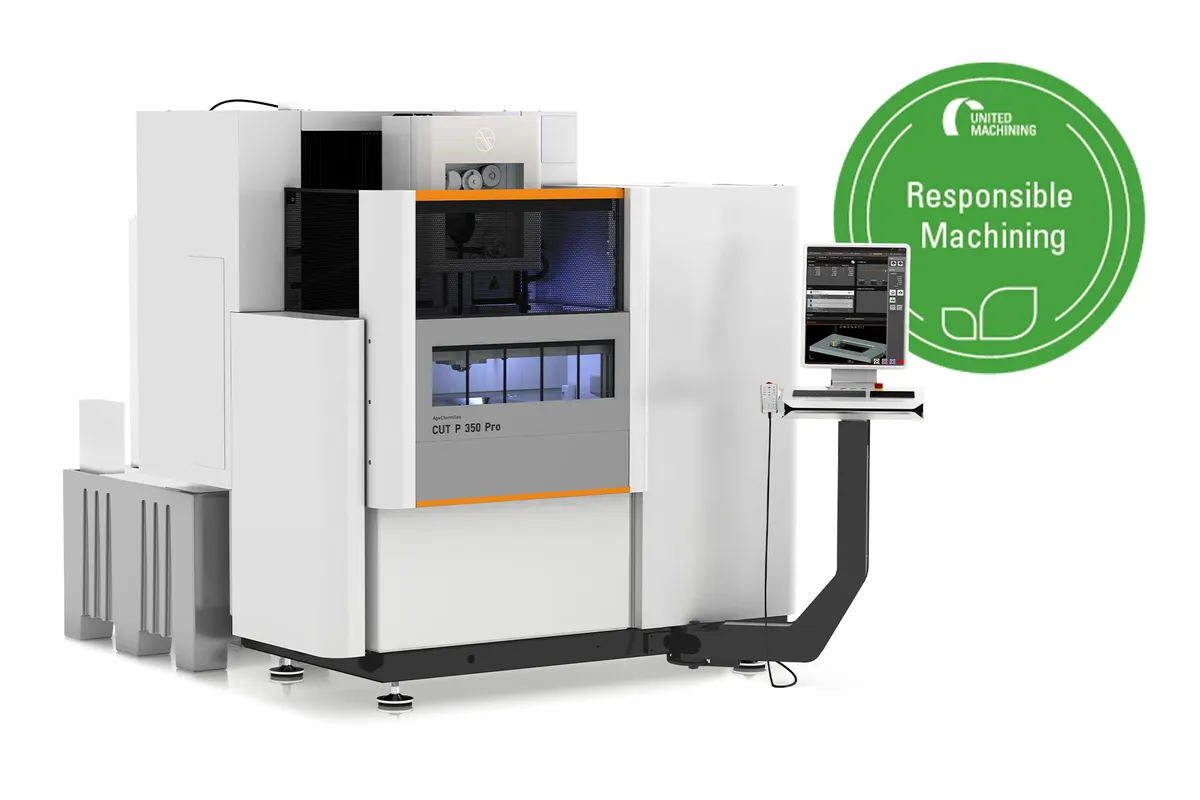

GF Machining AgieCharmilles CUT P 350 Pro
Key Specifications
X / Y / Z Travel
U / V Travel
Max Workpiece Dimensions
Max Workpiece Weight
Wire Diameter Range
Min Surface Finish Ra
Overview
The GF Machining Solutions AgieCharmilles CUT P 350 Pro is the latest-generation compact production wire EDM in GF's CUT P Pro series, built around the next-generation Intelligent Power Generator (IPG) for higher cutting efficiency and up to 30% daily energy reduction compared to prior-generation machines. The CUT P 350 Pro targets high-throughput precision cutting of mold inserts, stamping dies, and aerospace components in a compact footprint.
With X/Y/Z travels of 350 x 250 x 220 mm, the CUT P 350 Pro handles the most common precision tooling sizes. The 750 kg maximum workpiece weight is a substantial increase over the CUT 2000/3000 series (200-400 kg), enabling the machine to handle heavier die components and fixture assemblies. Maximum workpiece dimensions of 1000 x 550 x 220 mm provide a generous work envelope relative to the axis travel.
The latest IPG generator achieves surface finishes down to Ra 0.08 µm with multi-pass skim cutting, while the SMART consumables system monitors wire, filter, and resin status for predictive maintenance. Wire diameter support ranges from 0.15 to 0.33 mm standard, with optional micro-wire capability down to 0.07-0.10 mm. Taper cutting reaches ±30° over the full 220 mm Z-height, with an optional ±45° capability.
The CUT P 350 Pro is designed for production environments where uptime, energy efficiency, and consistent unattended operation are paramount. Its advanced HMI with touchscreen guidance simplifies setup, and the automatic wire threading system ensures reliable restart after wire breaks or new-hole threading during lights-out runs.
Full Specifications
| Parameter | Value |
|---|---|
| X / Y / Z Travel | 350 x 250 x 220 mm (13.8 x 8.7 x 8.7 in) |
| U / V Travel | 350 x 220 mm (13.8 x 8.7 in) |
| Max Workpiece Dimensions | 1000 x 550 x 220 mm (39.4 x 21.7 x 8.7 in) |
| Max Workpiece Weight | 750 kg (1,653 lb) |
| Wire Diameter Range | 0.15 - 0.33 mm (0.07-0.10 mm optional) |
| Min Surface Finish Ra | 0.08 µm |
| Max Taper Angle | ±30° / 220 mm (±45° optional) |
| Max Wire Spool Weight | 8 kg (25 kg optional) |
| Control System | Advanced HMI with SMART consumables |
| Generator | Intelligent Power Generator (IPG) — latest generation |
| Dielectric | Deionized water |
| Travel X Y Z | 1250 x 850 x 100-800 mm49.2 x 33.5 x 3.9-27.56 in |
| Min Surface Roughness Ra | 0.2 μm |
| Max Taper Angle Height | 30°/800 mm30°/31.5 in |
| Max Workpiece Dimensions | 1300 x 950 x 510 mm51.18 x 21.65 x 20.07 in |
| Max Workpiece Weight | 6000 kg13228 lbs |
| Travel U V | 1250 x 850 mm49.2 x 33.5 in |
| Wire Diameters | 0.15-0.33 mm0.006-0.013 |
| Max Wire Spool Weight | 25-45 kg55-100 lbs |
Specifications sourced from gfms.com — verified 2026-03-28
Strengths & Limitations
Strengths
- Latest-generation IPG delivers up to 30% daily energy reduction versus prior CUT P models
- Ra 0.08 µm surface finish capability meets precision mold and die requirements
- 750 kg workpiece capacity handles heavier die components than compact wire EDMs
- SMART consumables system enables predictive maintenance and reduces unplanned downtime
- Optional ±45° taper cutting extends capability for complex clearance-angle geometries
- Reliable AWT ensures confident lights-out production on multi-feature jobs
Limitations
- 220 mm Z-travel is shorter than some competitors in this class
- Standard 8 kg wire spool limits run time — 25 kg option recommended for production
- 0.15 mm minimum wire (standard) excludes finest micro-detail work without optional package
- Premium pricing reflects GF's production-grade engineering and IPG technology
Best For
Frequently Asked Questions
01
The CUT P Pro features a latest-generation IPG with up to 30% energy savings, SMART consumables monitoring for predictive maintenance, and an updated HMI interface. The core wire EDM performance — surface finish, accuracy, and cutting capability — builds on the proven CUT P platform with improved efficiency.
02
SMART consumables monitors the condition of wire spools, dielectric filters, and deionization resin in real time. The system tracks usage rates and predicts when consumables will need replacement, allowing operators to schedule maintenance during planned downtime rather than experiencing unexpected interruptions during cutting.
03
Yes. The CUT P 350 Pro is designed for lights-out production. The AWT system handles wire breaks and new-hole threading automatically, SMART consumables monitors supply levels, and the IPG maintains stable cutting conditions. With a 25 kg wire spool (optional), the machine can run extended unattended shifts.
04
The CUT P 550 Pro offers larger travel (550 x 350 x 400 mm vs 350 x 250 x 220 mm), higher workpiece weight (1,500 kg vs 750 kg), and taller Z-travel for thicker workpieces. Choose the 550 Pro when your parts exceed the 350 Pro envelope; choose the 350 Pro for compact precision work at lower investment.
