Matsuura MAM72-52V PC15

$900,000 - $1,400,000 Updated 2026-03-19

Key Specifications

X Travel

730 mm (28.7 in)

Y Travel

620 mm (24.4 in)

Z Travel

620 mm (24.4 in)

Max Spindle

12,000 RPM (optional 20,000 RPM)

Spindle Taper

BT40 (HSK-A63 optional)

Tool Capacity

130 standard matrix (up to 530 tools)

Overview

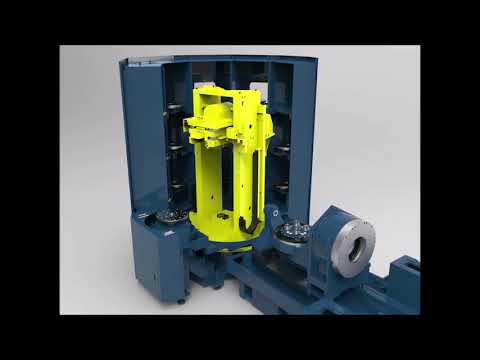

The Matsuura MAM72-52V PC15 is the standard production configuration of the MAM72-52V, equipped with a 15-pallet tower stocker designed for automated 5-axis machining of medium-to-large precision components up to 520 mm diameter. The 15-pallet count reflects the larger pallet size at 520 mm diameter, each pallet takes significantly more stocker volume than the 350 mm or 420 mm pallets used in smaller MAM72 variants. Despite the lower pallet count, 15 stations provide ample capacity for multi-day unattended production runs.

Axis travel measures 730 x 620 x 620 mm (28.7 x 24.4 x 24.4 in), providing a generous work envelope for the larger parts this machine targets. Max workpiece dimensions are 520 mm diameter by 400 mm tall (20.5 x 15.7 in). Table load capacity is 300 kg (661 lb) per pallet, a dramatic step up from the 42V PC32 that opens the door to heavy fixtures and larger workpieces in steel and titanium.

The standard spindle runs a BT40 taper at 12,000 RPM with 30 kW (40 hp) of power, with 20,000 RPM and HSK-A63 options. The 4th and 5th axes use direct-drive motors with cutting torques of 373 Nm (tilting) and 255 Nm (rotating), providing the rigidity needed for aggressive cutting on larger parts. The matrix magazine starts at 130 tools in BT40 configuration and scales to 530 tools for full high-mix production support.

The operator door opens 700 mm wide with the spindle center positioned just 134 mm from the machine front and pallets at a comfortable 1,050 mm height from the floor. The MIMS cell controller manages the full pallet queue, and CAMplete TruePath comes standard.

Full Specifications

Parameter	Value
X-Axis Travel	730 mm (28.7 in)
Y-Axis Travel	620 mm (24.4 in)
Z-Axis Travel	620 mm (24.4 in)
A Axis Range	+30° to -120°
C Axis Range	360° (continuous)
Max Spindle Speed	12,000 RPM (optional 20,000 RPM)
Spindle Taper	BT40 (HSK-A63 optional)
Spindle Motor Power	30 kW (40 hp)
Tilting Axis Torque	373 Nm (direct drive)
Rotating Axis Torque	255 Nm (direct drive)
Tool Capacity	130 standard matrix (up to 530 tools)
Pallet Capacity	15 pallets (tower stocker)
Table Diameter	520 mm (20.5 in)
Max Workpiece Size	520 mm dia x 400 mm H (20.5 x 15.7 in)
Table Load Capacity	300 kg (661 lb) per pallet
Rapid Traverse Xyz	50 m/min (1,969 ipm)
Machine Weight	20,000 kg (44,100 lb)
Floor Space Required	3,500 x 4,800 mm (with pallet stocker)
CNC Control	Matsuura G-Tech 31i (FANUC 31i-B5 based, touch screen)
Drive System	DD
Feed Rate	50min-1
Allowable Cutting Torque	373N・m
Brake Torque	4150N・m
Max Work Dimensions	Φ520×H400mm（Φ20.47×H15.74）
Loading Capacity	300kg（661lb.）
1 Distance Flom Machine Front To Spindle Center	134mm (5.27in)
2 Operator Door Opening Width	700mm (27.55in)
3 Distance Flom Machine Front To Pallet Center	564mm (22.20in)
4 Height Flom Floor To Pallet Top	1,050mm (41.33in)
Standard	Tower Pallet System PC15
Option	Matrix Magazine BT40170/210/250/290/330370/410/450/490/530

Specifications sourced from matsuura.co.jp — verified 2026-03-28

Strengths & Limitations

Strengths

520 mm workpiece diameter and 300 kg per-pallet load capacity handle medium-to-large aerospace and industrial components
30 kW spindle with direct-drive rotary axes (373/255 Nm torque) provides serious cutting capability
15-pallet tower stocker enables multi-day unattended production campaigns with diverse part families
Matrix magazine scaling to 530 tools supports full tooling variety across 15 pallet setups
Ergonomic operator interface with 700 mm door opening and 1,050 mm pallet height
MIMS cell controller with sister-tool management ensures autonomous operation

Limitations

Capital investment of $900K-$1.4M requires rigorous production volume to justify
15-pallet capacity is lower than MAM72-35V and MAM72-42V PC32 configurations
Machine and stocker footprint of 3.5 x 4.8 m requires careful facility planning
Matsuura service network is smaller than DMG Mori or Mazak in North America

Best For

Aerospace tier-1 suppliers machining medium-to-large structural components Medical device OEMs producing large implant families with automation Defense manufacturers producing complex housings and enclosures Precision tooling and mold manufacturers running large cavity inserts High-value contract manufacturers needing maximum unattended spindle utilization

Frequently Asked Questions

01 What does a Matsuura MAM72-52V PC15 cost?

New MAM72-52V PC15 pricing typically ranges from $900,000 to $1,400,000 depending on configuration. Fully configured with 530-tool matrix magazines, costs can exceed $1.5 million.

02 Why does the MAM72-52V have fewer pallets than the MAM72-42V?

The 52V uses 520 mm pallets versus 420 mm, with each larger pallet requiring more stocker volume. 15 pallets still provide 7-45 hours of unattended runtime.

03 How does the 300 kg pallet load compare to the MAM72-42V?

The 300 kg capacity is nearly 4x the MAM72-42V PC32 80 kg limit, enabling heavy steel and titanium fixtures and tombstone setups.

04 What spindle should I choose?

For mixed materials, the standard BT40 at 12,000 RPM with 30 kW is versatile. For aluminum, the 20,000 RPM option provides better surface finish at higher feed rates.
