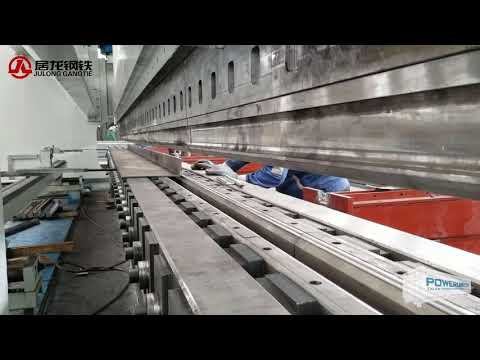

LVD CADMAN-B 6m Press Brake

$600,000 - $1,200,000 Updated 2026-03-16

Key Specifications

Bending Force

1,000 ton (9,800 kN)

Drive Type

Hydraulic

Bending Length

6,000 mm

Daylight Opening

600 mm

Throat Depth

500 mm

Ram Stroke

250 mm

Overview

The LVD CADMAN-B 6m is a heavy-duty hydraulic CNC press brake designed for large-format bending of structural steel, thick-gauge stainless, and heavy plate components in the construction, agriculture, and heavy equipment sectors. The 6-meter bending length and 1,000-ton capacity handle the largest bending jobs that most press brake facilities encounter, including box sections for structural steel work, agricultural equipment frames, and heavy vehicle body components. LVD's CADMAN-B incorporates the Touch-B control with CADMAN offline programming software that handles 3D part unfolding and bend sequencing. Automatic crowning compensation ensures consistent bend angle across the full 6-meter length despite beam deflection under heavy load. The large-format CADMAN-B is typically installed in heavy fabrication shops that also run LVD's laser cutting and punching lines.

Full Specifications

Parameter	Value
Bending Force	1,000 ton (9,800 kN)
Drive Type	Hydraulic
Bending Length	6,000 mm
Daylight Opening	600 mm
Throat Depth	500 mm
Ram Stroke	250 mm
Backgauge Axes	6-axis CNC
Crowning	Automatic CNC crowning
Control	LVD Touch-B + CADMAN offline
Tooling	Hydraulic clamping, Promecam/Euro-style
Manufacturer	Sea Doo
Model	1250
Maximum Thickness	6.35 mm
Horsepower	1,818 hp
Hours	215 h
Mileage	82,500 mi
Tire Size	ST145 / R12D

Specifications sourced from machinio.com — verified 2026-03-28

Strengths & Limitations

Strengths

1,000-ton capacity for the heaviest plate and structural bending
6-meter length for large-format structural components
Automatic crowning compensation for consistent angle over full length
CADMAN offline 3D programming for complex part sequencing
LVD strong European and global service network

Limitations

Massive footprint requires purpose-built bay with overhead crane
Very high capital cost
Hydraulic system requires fluid maintenance (vs servo-electric)
Operator safety management challenging at extreme tonnages

Best For

Heavy fabrication shops, structural steel contractors, and agricultural equipment manufacturers requiring large-format bending of thick plate and long structural profiles.

Frequently Asked Questions

01 Why is automatic crowning necessary on a 6-meter press brake?

Under heavy load, the beam of a long press brake deflects (bows) slightly in the center, which would cause the bend angle to be less in the middle than at the ends. Automatic crowning introduces a controlled pre-bend in the lower beam that exactly compensates for this deflection, ensuring consistent bend angle from one end to the other on long parts.
