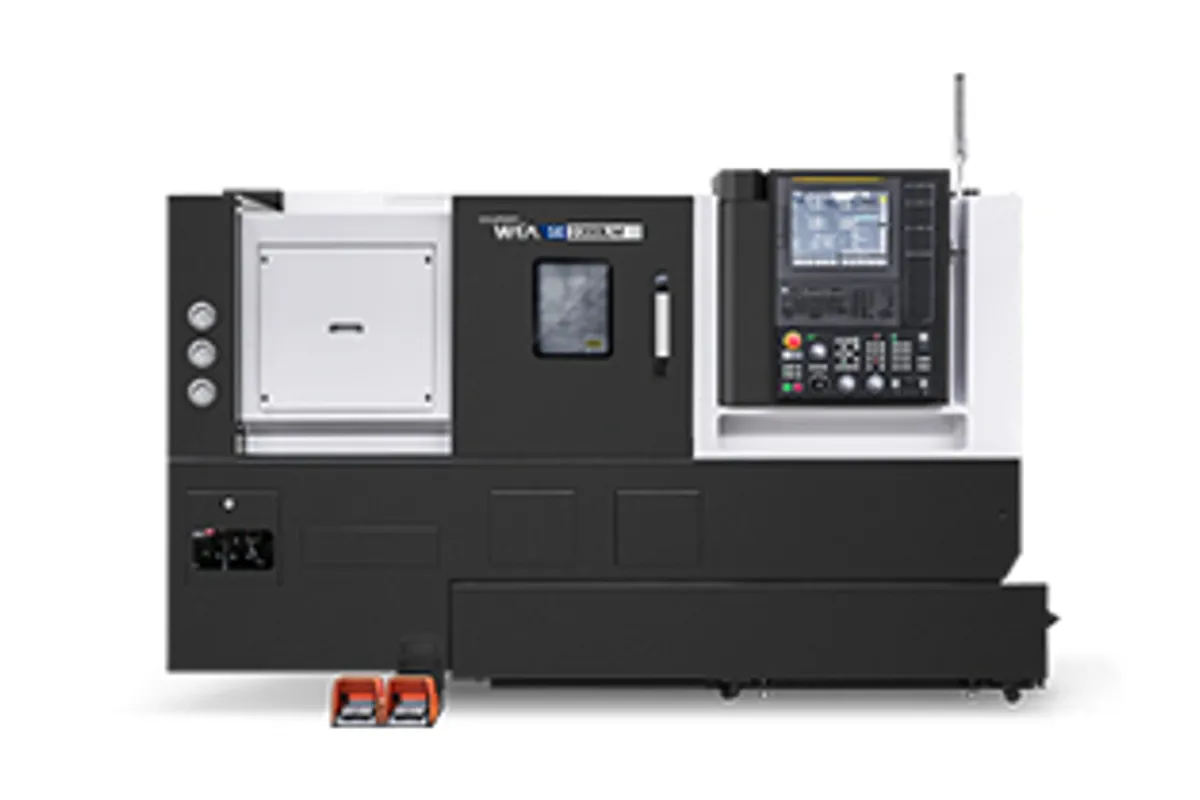

Hyundai WIA SE2200 Series
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
max turning diameter
chuck size
spindle torque
Overview
The Hyundai WIA SE2200 Series is a family of four CNC turning centers — SE2200, SE2200L, SE2200M, and SE2200LM — built on a 30-degree slant bed with roller guideways and an 8-inch chuck. The series provides a step up from the 6-inch SE2200A Series for shops needing more clamping force and larger part capability while retaining the same high-speed, high-rigidity platform architecture.
All SE2200 variants feature a 15/11 kW (20/15 hp) belt-driven spindle running at 4,500 RPM with 167/92 Nm torque. The standard models (SE2200, SE2200M) offer maximum turning diameter of 350 mm (13.8 in) and turning length of 307 mm (12.1 in), while the long-bed variants (SE2200L, SE2200LM) extend Z-axis travel to 560 mm (22 in) with turning length of 558 mm (22 in). Milling variants reduce the max turning diameter to 300 mm (11.8 in) and add 6,000 RPM live tooling.
The 12-station turret accepts 25/40 mm tooling on standard models and 20/32 mm on milling variants. Rapid traverse rates of 30 m/min on X and 36 m/min on Z keep non-cutting time to a minimum. The roller guideway system on the one-piece cast 30-degree bed delivers the rigidity and damping characteristics needed for consistent surface finish quality across production runs.
Pricing for the SE2200 Series ranges from approximately $60,000-$95,000 new. The series competes directly with the DN Solutions Lynx 2100B/MB family, Haas ST-15/ST-20, and similar 8-inch chuck production lathes. It provides excellent value for shops standardizing on a versatile turning platform with optional live tooling capability.
Full Specifications
| Parameter | Value |
|---|---|
| Max Turning Diameter | 350 mm (13.8 in) / 300 mm (11.8 in) M-variants |
| Max Turning Length | mm |
| Chuck Size | inch |
| Max Spindle Speed | 4,500 RPM |
| Spindle Motor Power | 15/11 kW (20/15 hp) |
| Spindle Torque | N.m |
| X Axis Travel | 210 mm (8.3 in) |
| Z Axis Travel | 340 mm (13.4 in) / 560 mm (22 in) L-variants |
| Rapid Traverse X | 30 m/min (1,181 ipm) |
| Rapid Traverse Z | 36 m/min (1,417 ipm) |
| Turret Stations | 12 |
| Tool Size | mm |
| Milling Tool Speed | r/min |
| Guideway Type | Roller guideways |
| Bed Angle | 30 degrees |
| Spindle Drive | Belt driven |
| CNC Control | Fanuc 0i-TF Plus |
| Description | Unit |
| Max Turning Dia | mm |
| Spindle Rpm | r/min |
| Spindle Output | kW |
| Travel | mm |
| Rapid Travel | m/min |
| No Of Tools | EA |
| Type Of Business | Business Type 1VehiclesIT/ElectronicsMachinery/ShipbuildingComplex & Precise PartsDie&Mold IndustryEnergyOthersBusiness Type 2 |
| E Mail | @ |
Specifications sourced from wiamachine.com — verified 2026-03-28
Strengths & Limitations
Strengths
- 8-inch chuck provides more clamping force and larger part capacity than the 6-inch SE2200A Series
- Four variants allow standardization across standard/long-bed and turning/milling configurations
- Roller guideways deliver superior rigidity and vibration damping for consistent surface finish
- 167 Nm spindle torque handles aggressive roughing on medium-diameter steel components
- Long-bed variants extend turning length to 558 mm for shaft and bar-type components
- 36 m/min Z-axis rapid traverse keeps non-cutting time low on production programs
Limitations
- 4,500 RPM spindle speed is lower than the 6,000 RPM SE2200A — limits surface speed on small-diameter finishing
- Standard model turning length of 307 mm is shorter than some competitors in the 8-inch class
- Milling variants reduce max turning diameter from 350 mm to 300 mm
- Roller guideways require more maintenance attention than standard linear guides
Best For
Frequently Asked Questions
01
SE2200 is standard 2-axis with 307 mm turning length. SE2200L adds long bed (558 mm). SE2200M adds 6,000 RPM live tooling. SE2200LM combines long bed with live tooling. All share the 8-inch chuck, 15 kW spindle, and 12-station turret.
02
The SE2200 uses roller LM guideways while the HD2200 uses box ways. The HD2200 has a more powerful 18.5 kW spindle and larger turning diameter (380 mm vs 350 mm). The SE2200 is faster with 36 m/min Z rapid versus the HD2200's 30 m/min. Choose the SE2200 for speed and the HD2200 for heavy-duty rigidity.
03
Pricing ranges from $60,000-$95,000 new. The base SE2200 is at the lower end, while the SE2200LM with long bed and live tooling reaches the upper range. Used machines (2020+) are available for $38,000-$60,000.
04
Yes, all SE2200 variants support bar feeder integration for automated production. The 8-inch chuck spindle bore accommodates standard bar stock. Compatible with LNS, FMB, and Edge Technologies bar feeders.
