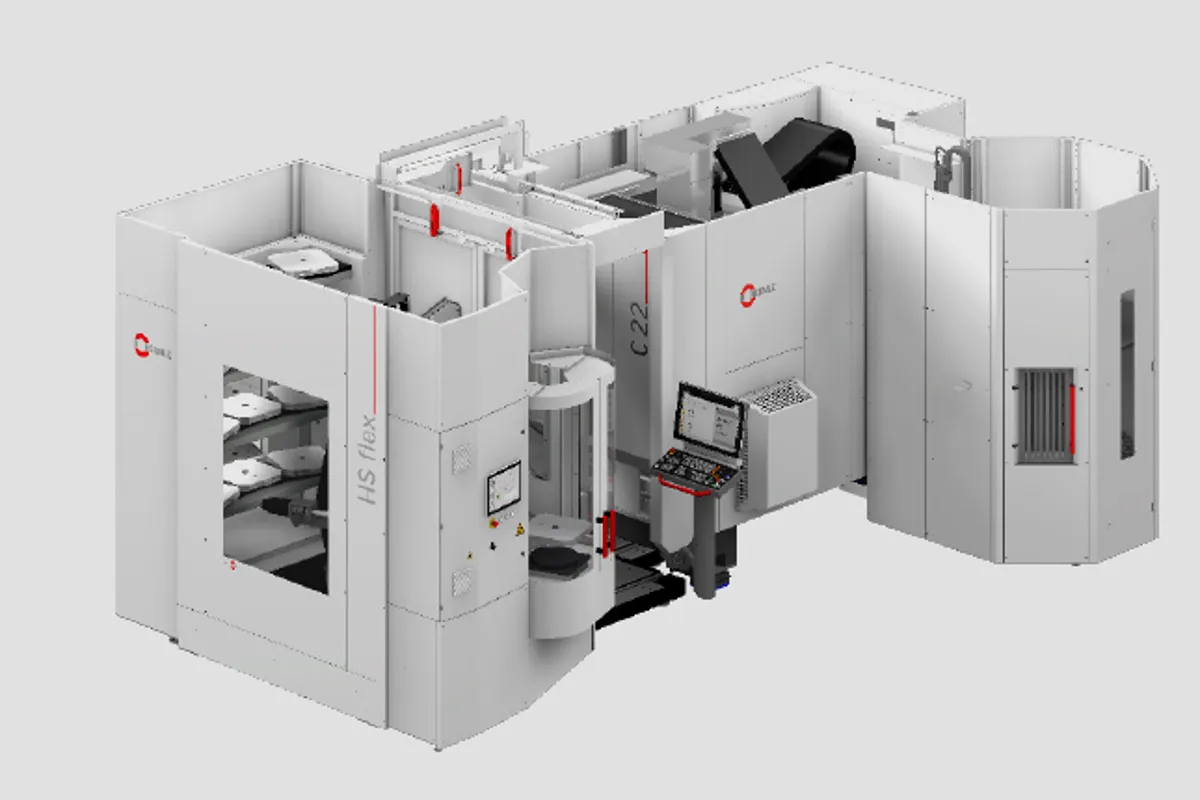

Hermle C 22 U GEN2

$380,000 - $550,000 Updated 2026-03-19

Key Specifications

Spindle Taper

HSK-A63

Rapid Traverse

30 m/min (1,181 ipm) standard; 50 m/min (1,969 ipm) optional

Accuracy

+/- 0.005 mm (0.0002 in)

Repeatability

+/- 0.003 mm (0.00012 in)

x axis travel

450 mm (17.7 in)

y axis travel

600 mm (23.6 in)

Overview

The Hermle C 22 U GEN2 is the updated generation of Hermle's compact High-Performance Line 5-axis machining center, stepping up from the C 12 U GEN2 with significantly more travel and triple the table load capacity. The GEN2 ships with a choice of Heidenhain TNC7 or Siemens SINUMERIK ONE controls — the first Hermle to offer the new Siemens platform.

X/Y/Z travels are 450 x 600 x 330 mm (17.7 x 23.6 x 13.0 in) with a 320 mm (12.6 in) diameter swiveling rotary table rated for 300 kg (661 lb). The collision circle measures 610 mm (24.0 in) and vertical table clearance reaches 470 mm. The generous Y-axis travel at 600 mm makes the C 22 U particularly capable for its size class, and the machine can be transported without dismantling and set up without a foundation.

Spindle options span from 15,000 to 42,000 rpm including 16,000, 20,000, 25,000, and 30,000 rpm variants — all on HSK-A63 tooling. Rapid traverse is 30 m/min (1,181 ipm) standard with a 50 m/min (1,969 ipm) option. The mineral-cast base provides the vibration damping that Hermle machines are known for.

The dual control option is significant: shops standardized on Heidenhain get the latest TNC7, while shops running Siemens can now buy a Hermle with SINUMERIK ONE — a control that brings digital twin capability, enhanced collision avoidance, and seamless integration with Siemens PLM software.

The C 22 U GEN2 competes with the DMG Mori DMU 50 and Mazak Variaxis C-600. It fills the gap between the compact C 12 U GEN2 and the larger C 32 U GEN2. New pricing runs $380,000-$550,000.

Full Specifications

Parameter	Value
X Axis Travel	450 mm (17.7 in)
Y Axis Travel	600 mm (23.6 in)
Z Axis Travel	330 mm (13.0 in)
A Axis Swivel	+/- 115 degrees (230 degrees total)
C Axis	360 degrees continuous
Collision Circle	Ø 610 mm
Table Diameter	320 mm (12.6 in)
Table Load Capacity	300 kg (661 lb)
Vertical Clearance	470 mm (18.5 in) max
Spindle Speed	15,000 / 16,000 / 20,000 / 25,000 / 30,000 / 42,000 rpm
Spindle Taper	HSK-A63
Tool Magazine	36 positions (expandable to 55)
Rapid Traverse Rate	30 m/min (1,181 ipm) standard; 50 m/min (1,969 ipm) optional
Positioning Accuracy	+/- 0.005 mm (0.0002 in)
Repeatability	+/- 0.003 mm (0.00012 in)
Machine Base	Mineral cast
CNC Control	Heidenhain TNC7 or Siemens SINUMERIK ONE
Machine Weight	8,500 kg (18,739 lb)
Power Supply	400V, 3-phase, 50/60 Hz
Traverse Path	450 x 600 x 330 mm
Body	Ø 450 / H 370
Vertical Table Clearance	max. 470 mm
Rotational Speed	15000/16000/20000/25000/30000/42000 1/min
Rapid Traverse Linear X Y Z	30 (50) m/min.
Swivelling Rotary Table	ø 320 mm
Max Table Loading	300 kg

Specifications sourced from hermle.de — verified 2026-03-28

Strengths & Limitations

Strengths

Choice of Heidenhain TNC7 or Siemens SINUMERIK ONE control — first Hermle with new Siemens platform
300 kg table load is triple the C 12 U, handling heavier fixtures and workpieces
Spindle options from 15,000 to 42,000 rpm on HSK-A63 cover the full application range
600 mm Y-axis travel provides generous depth for a compact 5-axis machine
No foundation required — can be transported without dismantling for quick installation
Mineral-cast base delivers exceptional vibration damping for surface finish quality

Limitations

330 mm Z-travel limits tall workpiece machining compared to larger machines
320 mm table diameter is compact — shops needing larger clamping should look at C 32 U GEN2
Premium pricing at $380K-$550K exceeds most competitors in this size class
30 m/min standard rapids are moderate — the 50 m/min option adds cost

Best For

Medical device manufacturers producing medium-sized implants and instruments in titanium Mold and die shops machining electrodes and precision inserts up to 300 kg Aerospace component production of small to medium structural fittings and brackets Shops standardized on Siemens controls wanting Hermle build quality for the first time Precision job shops needing a versatile compact 5-axis platform with multiple spindle options

Frequently Asked Questions

01 What changed from the original C 22 U to the GEN2?

The GEN2 adds the Siemens SINUMERIK ONE control option alongside the Heidenhain TNC7, introduces new 16,000 and 25,000 rpm spindle options, and includes updated drive technology. The work envelope remains the same.

02 What does a Hermle C 22 U GEN2 cost?

New machines run $380,000-$550,000 depending on control choice, spindle, and options. The Siemens SINUMERIK ONE option may carry a premium over the Heidenhain TNC7.

03 Should I choose Heidenhain or Siemens?

Choose based on your shop's existing control platform and operator training. The TNC7 excels at 5-axis programming and shop-floor usability. The SINUMERIK ONE offers digital twin capability and integrates with Siemens PLM ecosystems.

04 How does the C 22 U GEN2 compare to the C 12 U GEN2?

The C 22 U offers 100 mm more X-travel, 160 mm more Y-travel, triple the table load at 300 kg, and the Siemens control option. Choose the C 12 U if parts fit within 320 mm and 100 kg and you need the smallest footprint.
