Hermle C 650 GEN2

$680,000 - $950,000 Updated 2026-03-19

Key Specifications

Spindle Taper

HSK-A63

Rapid Traverse

35 m/min (1,378 ipm)

Accuracy

+/- 0.005 mm (0.0002 in)

Repeatability

+/- 0.003 mm (0.00012 in)

x axis travel

1,050 mm (41.3 in)

y axis travel

900 mm (35.4 in)

Overview

The Hermle C 650 GEN2 is the updated generation of the largest machine in Hermle's Performance Line, now featuring the Heidenhain TNC7 control and a significant upgrade to 3,000 kg (6,614 lb) table load capacity — up from 2,000 kg on the original C 650. This increase opens the machine to heavier aerospace forgings, large steel mold bases, and energy sector components that previously required stepping up to the High-Performance Line.

X/Y/Z travels remain 1,050 x 900 x 600 mm (41.3 x 35.4 x 23.6 in) with a collision circle of 1,100 mm (43.3 in) and vertical table clearance of 775 mm. The table surface measures 1,250 x 982 mm, providing generous fixturing area for large workpieces up to 900 mm diameter. The A-axis swivels +/- 115 degrees with 360-degree continuous C-axis rotation.

Spindle options include 15,000, 16,000, and 20,000 rpm on HSK-A63 with 29 kW (39 hp) continuous power. Rapid traverse is 35 m/min (1,378 ipm) on all linear axes. The 60-tool standard magazine is expandable to 156 positions for complex multi-operation programs.

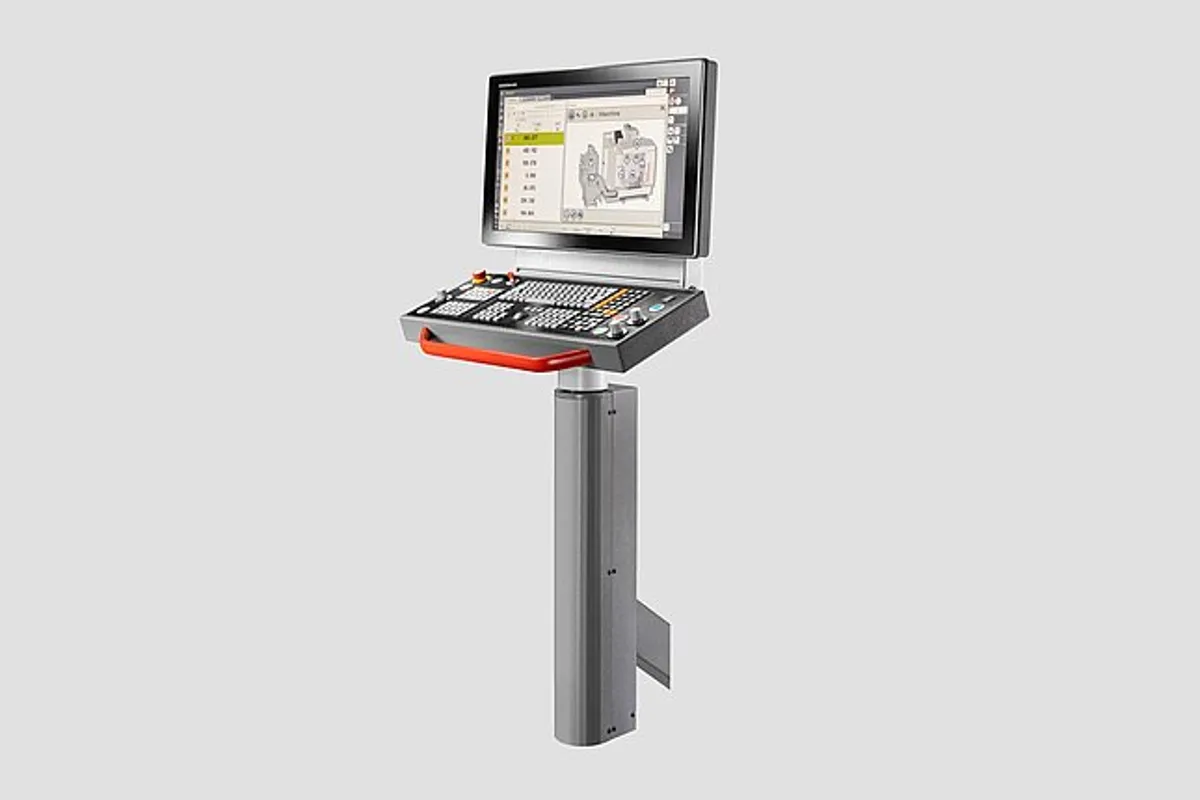

The mineral-cast base at approximately 16,500 kg total machine weight provides the mass and vibration damping that Hermle machines are known for. The TNC7 control brings a modern touchscreen interface, improved Dynamic Precision features, and enhanced kinematic calibration. Positioning accuracy is +/- 0.005 mm with repeatability of +/- 0.003 mm.

The C 650 GEN2 is the top of the Performance Line and bridges the gap to the High-Performance Line C 52 U and C 62 U. New pricing runs $680,000-$950,000 depending on configuration.

Full Specifications

Parameter	Value
X Axis Travel	1,050 mm (41.3 in)
Y Axis Travel	900 mm (35.4 in)
Z Axis Travel	600 mm (23.6 in)
A Axis Swivel	+/- 115 degrees (230 degrees total)
C Axis	360 degrees continuous
Collision Circle	Ø 1100 mm
Table Surface	1,250 x 982 mm (49.2 x 38.7 in)
Table Diameter	900 mm (35.4 in)
Table Load Capacity	3,000 kg (6,614 lb)
Vertical Clearance	775 mm (30.5 in) max
Spindle Speed	15,000 / 16,000 / 20,000 rpm
Spindle Motor	29 kW (39 hp) continuous
Spindle Taper	HSK-A63
Tool Magazine	60 positions (expandable to 156)
Rapid Traverse Rate	35 m/min (1,378 ipm)
Positioning Accuracy	+/- 0.005 mm (0.0002 in)
Repeatability	+/- 0.003 mm (0.00012 in)
Machine Base	Mineral cast
CNC Control	Heidenhain TNC7
Machine Weight	16,500 kg (36,376 lb)
Power Supply	400V, 3-phase, 50/60 Hz
Traverse Path	1050 x 900 x 600 mm
Body	Ø 900 / H 600 mm
Vertical Table Clearance	max. 775 mm
Rotational Speed	15000 / 16000 / 20000 1/min
Rapid Traverse Linear X Y Z	35 m/min.
Rigid Clamping Table	1250 x 982 mm
Tischzuladung Max	3000 kg

Specifications sourced from hermle.de — verified 2026-03-28

Strengths & Limitations

Strengths

3,000 kg table load capacity is a major upgrade from the 2,000 kg original C 650
Largest work envelope in the Performance Line at 1,050 x 900 x 600 mm
Heidenhain TNC7 control with modern touchscreen and advanced Dynamic Precision
29 kW spindle handles aggressive roughing in titanium and hardened steels
60-tool magazine expandable to 156 covers complex multi-operation programs
Mineral-cast base at 16,500 kg provides outstanding vibration damping at scale

Limitations

Premium pricing exceeds $680,000 — significant capital investment
16,500 kg machine weight requires substantial foundation planning
35 m/min rapids are moderate for a machine of this size class
Hermle North American service network is thinner than DMG Mori or Makino

Best For

Aerospace structural components requiring 5-axis contouring on large aluminum or titanium parts Heavy mold bases and injection mold cavities exceeding C 400 GEN2 capacity Energy sector turbine components and large impeller bodies Shops needing Hermle precision on workpieces up to 3,000 kg Automated production cells using HS-flex heavy pallet systems

Frequently Asked Questions

01 What changed from the original C 650 to the GEN2?

The GEN2 increases table load capacity from 2,000 kg to 3,000 kg, ships with the Heidenhain TNC7 control, adds the 16,000 rpm spindle option, and features updated drive technology. The work envelope remains the same.

02 What does a Hermle C 650 GEN2 cost?

New machines run $680,000-$950,000 depending on spindle, tool magazine, and automation options.

03 How does the C 650 GEN2 compare to the C 52 U?

The C 650 GEN2 offers more X-travel (1,050 vs 1,000 mm) and 50% more table load (3,000 vs 2,000 kg), but the C 52 U has more Y-travel (1,100 vs 900 mm) and Z-travel (750 vs 600 mm). The C 52 U also offers higher spindle speed options up to 42,000 rpm.

04 Can the C 650 GEN2 be automated?

Yes. Hermle offers the HS-flex heavy pallet system for automated large-workpiece handling, plus robotic loading integration. The TNC7 control integrates with HACS automation management software.
