Haas Automation Mill-Turn / Multi-Tasking Machines

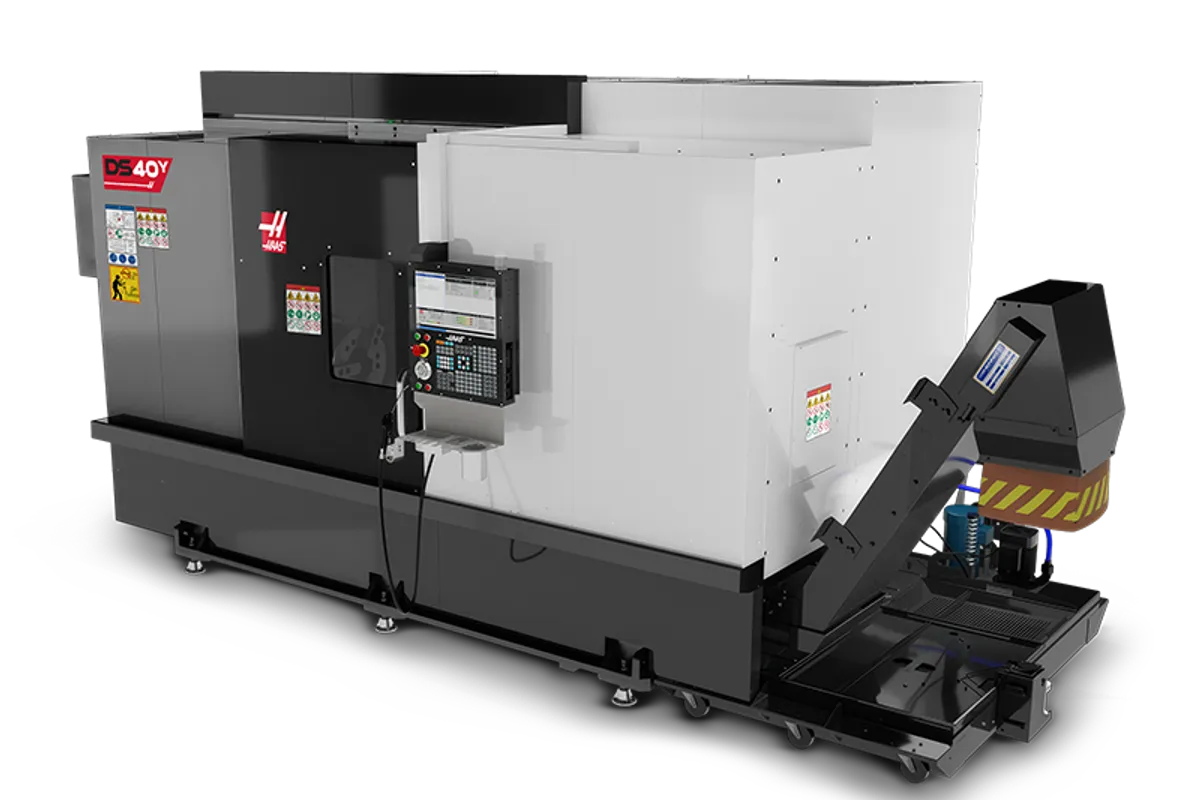

Haas DS-40Y

List US$290,995 Specs verified 2026-10-02 · haascnc.com Updated 2026-10-02

Key Specifications

X Travel

20 in (508 mm)

Y Travel

± 3 in (± 76 mm)

Z Travel

44 in (1,118 mm)

Max Spindle

2,400 rpm

Spindle Power

40 hp (29.8 kW)

Max Turn Length

44 in (1,118 mm)

How much does the Haas DS-40Y cost?

Manufacturer list price

US$290,995

As published by Haas Automation, verified 2026-10-02. Options, tooling, freight and installation are extra.

Overview

A 15 in (381 mm) chuck, a two-speed gearbox and 1,400 ft-lbf (1,898 N·m) of spindle torque at 150 rpm put the Haas DS-40Y in a different class from the smaller DS lathes. It turns parts up to 27.5 in (699 mm) in diameter and 44 in (1,118 mm) long, passes 4 in (102 mm) bar through a 4.62 in (117.3 mm) spindle bore, and adds a Y axis, live tooling and a second spindle to finish the back of the part.

The main spindle is geared, not belted. Rated 40 hp (29.8 kW) with a 2,400 rpm top speed, it is built for large-diameter steel at low surface speeds. Haas also lists an XP option on the same gearbox with 55 hp (41 kW) and 2,100 ft-lbf (2,847 N·m) at 150 rpm. It is an option, and it raises the supply requirement to 105 A at 220 VAC or 53 A at 440 VAC, against 70 A and 35 A for the base machine.

The sub-spindle is a serious spindle in its own right: a 10 in (254 mm) chuck on an A2-6 nose, 30 hp (22.4 kW) and 300 ft-lbf (406.7 N·m) at 500 rpm. It runs to 3,400 rpm alone and synchronizes with the main spindle at up to 2,400 rpm. Its drawbar bore is Ø 3.03 in × 35.8 in deep (Ø 77 mm × 909.3 mm), so a shaft can be drawn well into the second spindle for work on its far end.

Milling runs through a 12-station BMT75 turret that indexes in 2 s, with live tools to 4,000 rpm and ±3 in (±76 mm) of Y. The main C axis positions to 0.01° and its 21.5 in (546 mm) brake holds 450 ft-lbf (610 N·m). Z thrust is 9,000 lbf (40,034 N) for large drills on centre; Y thrust is 2,300 lbf (10,231 N).

This is a heavy installation. The export crate weighs 22,880 lb (10,378 kg) and measures 216.5 × 98 × 120 in (550 × 249 × 305 cm), the coolant tank holds 95 gal (360 L), and Haas's starting price is US$290,995.

Full Specifications

Parameter	Value
Chuck Size	15 in (381 mm)
Max Swing	35.5 in (902 mm)
Max Turning Diameter	27.5 in (699 mm)
Max Turning Length	44 in (1,118 mm)
Bar Capacity	4 in (102 mm)
X-Axis Travel	20 in (508 mm)
Y-Axis Travel	± 3 in (± 76 mm)
Z-Axis Travel	44 in (1,118 mm)
Rapid Traverse X	472 ipm (12 m/min)
Rapid Traverse Y	472 ipm (12 m/min)
Rapid Traverse Z	710 ipm (18 m/min)
Max Thrust X	5,500 lbf (24,465 N)
Max Thrust Y	2,300 lbf (10,231 N)
Max Thrust Z	9,000 lbf (40,034 N)
Spindle Nose	A2-8
Spindle Drive	2-Speed Gearbox
Spindle Motor Power	40 hp (29.8 kW)
Max Spindle Speed	2,400 rpm
Spindle Torque	1,400 ft-lbf @ 150 rpm (1,898 N·m @ 150 rpm)
Spindle Bore	4.62 in (117.3 mm)
Xp Option Drive System	2-Speed Gearbox
Xp Option Max Rating	55 hp (41 kW)
Xp Option Max Speed	2,400 rpm
Xp Option Max Torque	2,100 ft-lbf @ 150 rpm (2,847 N·m @ 150 rpm)
Xp Option Input AC Voltage Low	220 VAC
Xp Option Full Load Amps Low	105 A
Xp Option Input AC Voltage High	440 VAC
Xp Option Full Load Amps High	53 A
C Axis Max Rating	5 hp (3.7 kW)
C Axis Speed	49 rpm
C Axis Positioning	0.01 °
C Axis Brake Diameter	21.5 in (546 mm)
C Axis Brake Holding Torque	450 ft-lbf (610 N·m)
C Axis Control Type	Interpolated Motion and Positioning
Sub Spindle Chuck Size	10 in (254 mm)
Sub Spindle Nose	A2-6
Sub Spindle Drive System	Direct Speed, Belt Drive
Sub Spindle Power	30 hp (22.4 kW)
Sub Spindle Speed	3,400 rpm
Sub Spindle Max Sync Speed with Main Spindle	2,400 rpm
Sub Spindle Torque	300 ft-lbf @ 500 rpm (406.7 N·m @ 500 rpm)
Sub Spindle Drawbar Bore	Ø 3.03 in × 35.8 in DEEP (Ø 77 mm × 909.3 mm DEEP)
Sub Spindle Spindle Bore	3.5 in (88.9 mm)
Sub Spindle C Axis Max Rating	5 hp (3.7 kW)
Sub Spindle C Axis Max Speed	60 rpm
Sub Spindle C Axis Positioning	0.01 °
Sub Spindle C Axis Brake Diameter	13.9 in
Sub Spindle C Axis Brake Holding Torque	250 ft-lbf (339 N·m)
Sub Spindle Positioning Positioning	0.25 °
Sub Spindle Positioning Brake Diameter	13.9 in (353 mm)
Sub Spindle Positioning Control Type	Positioning Only
Turret Stations	12
Turret OD Vs ID Tools	Any Combination (will vary with turret)
Turret Index Time	2 s
Turret Boring Bar Rear Clearance From Turret Face	4.5 in (114 mm)
Turret Tooling	BMT75
Live Tool Speed	4,000 rpm
Live Tooling	BMT75
Coolant Capacity	95 gal (360 L)
Air Required	4 scfm @ 100 psi (113 L/min @ 6.9 bar)
Inline Air Hose	3/8 in
Air Coupler	3/8 in
Air Pressure Min	80 psi (5.5 bar)
Electrical Service (low voltage)	220 VAC 3-phase, 70 A
Electrical Service (high voltage)	440 VAC 3-phase, 35 A
Shipping Domestic Pallet	216.5 × 94.3 × 110 in (550 × 239 × 279 cm)
Shipping Export Pallet	216.5 × 98 × 120 in (550 × 249 × 305 cm)
Machine Weight Export Crate	22,880 lb (10,378 kg)

Specifications sourced from haascnc.com — verified 2026-10-02

Strengths & Limitations

Strengths

Geared main spindle with 1,400 ft-lbf (1,898 N·m) at 150 rpm and 40 hp (29.8 kW) for large-diameter roughing
27.5 in (699 mm) maximum turning diameter and 44 in (1,118 mm) turning length on a 15 in (381 mm) chuck
4 in (102 mm) bar capacity through a 4.62 in (117.3 mm) spindle bore
Sub-spindle with a 10 in (254 mm) chuck, 30 hp (22.4 kW) and 300 ft-lbf (406.7 N·m), enough for real cutting on the second operation
BMT75 live-tool turret with 12 stations, a 2 s index time and ±3 in (±76 mm) of Y travel
9,000 lbf (40,034 N) of Z thrust for large-diameter drilling on centre

Limitations

Main spindle is limited to 2,400 rpm, so small-diameter work runs below its ideal surface speed; the DS-30Y reaches 4,500 rpm
The 55 hp (41 kW), 2,100 ft-lbf (2,847 N·m) XP spindle is an option and needs 105 A at 220 VAC or 53 A at 440 VAC
Z rapid is 710 ipm (18 m/min), slower than the 945 ipm (24 m/min) of the DS-30Y, over a longer 44 in (1,118 mm) stroke
The export crate is 22,880 lb (10,378 kg) and 216.5 in (550 cm) long, which calls for rigging and floor planning ahead of delivery
Y-axis thrust is 2,300 lbf (10,231 N), about a quarter of the Z thrust, so heavy milling off centre is limited

Best For

Large flanges, hubs and rings up to 27.5 in (699 mm) in diameter Heavy steel roughing that needs 1,400 ft-lbf (1,898 N·m) at low rpm Bar and shaft work up to 4 in (102 mm) through the spindle Long parts to 44 in (1,118 mm) finished on both ends using the 10 in (254 mm) sub-spindle chuck Big turned parts with milled features within ±3 in (±76 mm) of Y

Frequently Asked Questions

01 What does the XP option change on the DS-40Y?

The XP option keeps the two-speed gearbox and the 2,400 rpm top speed but raises the main spindle to 55 hp (41 kW) and 2,100 ft-lbf (2,847 N·m) at 150 rpm, from 40 hp (29.8 kW) and 1,400 ft-lbf (1,898 N·m). It also raises the electrical supply to 105 A at 220 VAC or 53 A at 440 VAC. It is an option, so the base figures apply unless it is ordered.

02 How big is the sub-spindle on the DS-40Y?

It carries a 10 in (254 mm) chuck on an A2-6 nose with a 3.5 in (88.9 mm) spindle bore. The belt-driven spindle is rated 30 hp (22.4 kW) and 300 ft-lbf (406.7 N·m) at 500 rpm, with a 3,400 rpm top speed and a 2,400 rpm limit when synchronized with the main spindle. The sub-spindle C axis positions to 0.01° and its brake holds 250 ft-lbf (339 N·m).

03 How does the DS-40Y compare with the DS-30Y?

The DS-40Y is the larger machine in every dimension. It has a 15 in (381 mm) chuck, 4 in (102 mm) bar capacity, 27.5 in (699 mm) turning diameter, 44 in (1,118 mm) turning length and Y travel of ±3 in (±76 mm). The DS-30Y has a 10 in (254 mm) chuck, 3 in (76 mm) bar capacity, 13.75 in (349 mm) turning diameter, 32.5 in (826 mm) turning length and ±2 in (±51 mm) of Y. The DS-30Y spins faster, at 4,500 rpm against 2,400 rpm.

04 What tooling does the DS-40Y turret use?

BMT75, on a 12-station turret with a 2 s index time. Live tools run to 4,000 rpm. OD and ID tools can be fitted in any combination, depending on the turret, and boring bars have 4.5 in (114 mm) of rear clearance from the turret face.

05 What do I need to plan for delivery of a DS-40Y?

Haas lists the export crate at 22,880 lb (10,378 kg) and 216.5 × 98 × 120 in (550 × 249 × 305 cm); the domestic pallet is 216.5 × 94.3 × 110 in (550 × 239 × 279 cm). The base machine needs 70 A at 220 VAC or 35 A at 440 VAC three-phase, and 4 scfm of air at 100 psi (113 L/min at 6.9 bar) with at least 80 psi (5.5 bar). The coolant tank holds 95 gal (360 L).
