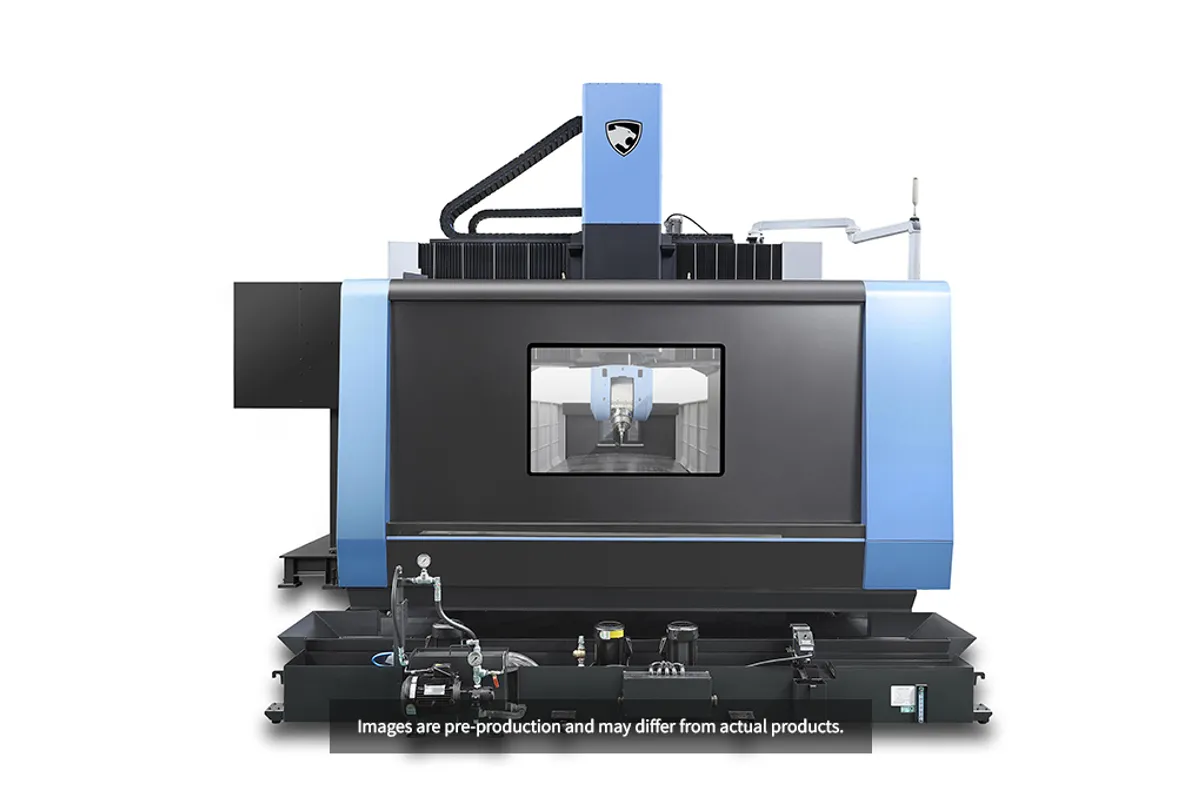

DN Solutions BM 2035 U

$800,000 - $1,200,000 Updated 2026-03-19

Key Specifications

X Travel

3,500 mm (137.8 in)

Y Travel

2,050 mm (80.7 in)

Z Travel

800 mm (31.5 in)

Max Spindle

15,000 RPM

Spindle Taper

HSK-A100

Table Size

3,500 x 1,600 mm (137.8 x 63.0 in)

Overview

The DN Solutions BM 2035 U is a bridge-type 5-axis vertical machining center built for shops cutting large dies, molds, and structural components. It's part of DN Solutions' heavy-iron double-column lineup, designed to handle workpieces that smaller trunnion-style 5-axis machines can't touch. With a 3,500 x 2,050 x 800 mm working envelope and a 10,000 kg table capacity, this machine targets the die/mold sector where big parts and tight tolerances meet demanding surface finish requirements.

The spindle runs at 15,000 RPM through an HSK-A100 taper, pushing 45.9 kW (61.5 hp) and 146.1 Nm (107.8 ft-lbs) of torque. That's a solid mid-range spec for die/mold work — enough speed for aluminum roughing and enough torque for harder tool steels. The universal head provides full 5-axis positioning, letting you reach undercuts and complex contours without re-fixturing. DN Solutions uses a dual-contact spindle design that minimizes vibration at the tool tip, which matters when you're chasing Ra 0.4 finishes on large mold surfaces.

The bridge construction gives the BM 2035 U inherent thermal stability advantages over C-frame machines. Both columns absorb heat symmetrically, and DN Solutions backs that up with ball screw bearing and nut cooling plus thermal displacement compensation for the spindle and structure. Linear scales come standard on all axes, so you're not relying on ballscrew pitch error maps for positioning accuracy.

Rapid traverse runs 16 m/min on X and Y, 12 m/min on Z. Those aren't blistering speeds, but on a 40,000 kg machine cutting large mold blocks, positioning speed is rarely the bottleneck — it's metal removal rate and surface finish that drive cycle time. The table measures 3,500 x 1,600 mm, giving you a generous clamping area for oversized workpieces.

At 40,000 kg (88,185 lb), the BM 2035 U needs a serious foundation. The overall footprint runs 5,150 x 11,350 x 5,150 mm, so floor space planning is critical. Covers are standard to minimize ambient temperature impact on accuracy — a detail that matters in shops without climate control.

Full Specifications

Parameter	Value
X-Axis Travel	3,500 mm (137.8 in)
Y-Axis Travel	2,050 mm (80.7 in)
Z-Axis Travel	800 mm (31.5 in)
Table Size	3,500 x 1,600 mm (137.8 x 63.0 in)
Max Workpiece Weight	10,000 kg (22,046 lb)
Max Spindle Speed	15,000 RPM
Spindle Motor Power	45.9 kW (61.5 hp)
Spindle Torque	146.1 Nm (107.8 ft-lbs)
Spindle Taper	HSK-A100
Rapid Traverse X	16 m/min (630 ipm)
Rapid Traverse Y	16 m/min (630 ipm)
Rapid Traverse Z	12 m/min (472 ipm)
Machine Dimensions	5,150 x 11,350 x 5,150 mm (203 x 447 x 203 in)
Machine Weight	40,000 kg (88,185 lb)
X Axis Travel Distance	3500 mm
Y Axis Travel Distance	2050 mm
Z Axis Travel Distance	800 mm
Metric	IMPERIAL
Capacity	Table to spindle nose
Travels	X-Axis Travel DistanceY-Axis Travel DistanceZ-Axis Travel Distance
Feed Rates	X-Axis Rapid TraverseY-Axis Rapid TraverseZ-Axis Rapid Traverse
Main Spindle	Max. Spindle SpeedMax. Spindle PowerMax. Spindle TorqueTool Taper
Table	Table LengthTable WidthMaximum Workpiece weight
Dimensions	LengthHeightWidthWeight
Favorites	BM 2740U

Specifications sourced from dn-solutions.com — verified 2026-03-28

Strengths & Limitations

Strengths

Bridge-type construction delivers symmetrical thermal stability that C-frame designs can't match on large parts
HSK-A100 taper with 15,000 RPM gives a solid blend of speed and rigidity for die/mold finishing and roughing
10,000 kg table capacity handles large die blocks and mold bases without derating concerns
Linear scales standard on all axes eliminate ballscrew pitch error from the accuracy equation
Dual-contact spindle design reduces vibration at the tool tip, improving surface finish on large sweeping mold surfaces
Thermal displacement compensation for both spindle and structure keeps parts on-size during long unattended cycles
Ball screw bearing and nut cooling prevents thermal growth from degrading positioning accuracy over extended runs

Limitations

40,000 kg machine weight demands significant foundation preparation — not a drop-in for most existing shop floors
800 mm Z-travel is limited compared to some competitors that offer 1,000+ mm for deeper cavity work
Rapid traverse speeds of 16/16/12 m/min are modest — shops doing high-volume production may feel the positioning time
Bridge design means the entire machine footprint is large relative to the working envelope

Best For

Die and mold shops machining large automotive stampings, bumper molds, and instrument panel tools Aerospace structural component manufacturers cutting oversized aluminum and titanium parts with complex 5-axis contours Pattern and prototype shops working with large-format parts that exceed the capacity of trunnion-style 5-axis machines Heavy equipment manufacturers producing large cast and forged components requiring 5-axis access Energy sector shops cutting turbine components, generator housings, and other large precision parts

Frequently Asked Questions

01 What's the difference between the BM 2035 U and BM 2035 M?

The 'U' designation means it's equipped with a universal head for full 5-axis positioning capability. The 'M' variant is a 3-axis bridge mill without the universal head. If you need to machine complex contours, undercuts, or angled features without re-fixturing, the U model is the right call. The M model costs less and works well for straightforward 3-axis die/mold roughing and semi-finishing.

02 How does the BM 2035 U compare to similar machines from other builders?

Direct competitors include the Okuma MCR-A5CII, DMG Mori DMU 210 P, and Parpas Diamond series. The BM 2035 U slots in at a competitive price point with solid thermal management and a proven universal head design. European builders like Parpas and Waldrich Coburg offer similar or larger machines at higher price points. The DN Solutions offering gives you strong value if you don't need the extreme precision specs of a Yasda or Mitsui Seiki.

03 What kind of foundation does the BM 2035 U need?

At 40,000 kg, you'll need a reinforced concrete foundation designed specifically for this machine. DN Solutions provides foundation drawings with the machine order. Most shops budget $30,000-$80,000 for foundation work depending on existing floor conditions. The foundation typically needs to be isolated from the rest of the shop floor to prevent vibration transmission.

04 Can the BM 2035 U handle hardened tool steel?

Yes. The 146.1 Nm spindle torque through an HSK-A100 taper gives you enough grunt for semi-finishing and finishing passes in hardened tool steels up to 60 HRC. For heavy roughing in hard materials, the torque is adequate but you'll be taking lighter depths of cut compared to a dedicated roughing machine. Most die/mold shops use the BM 2035 U primarily for finishing and semi-finishing after rough machining on a cheaper 3-axis platform.
