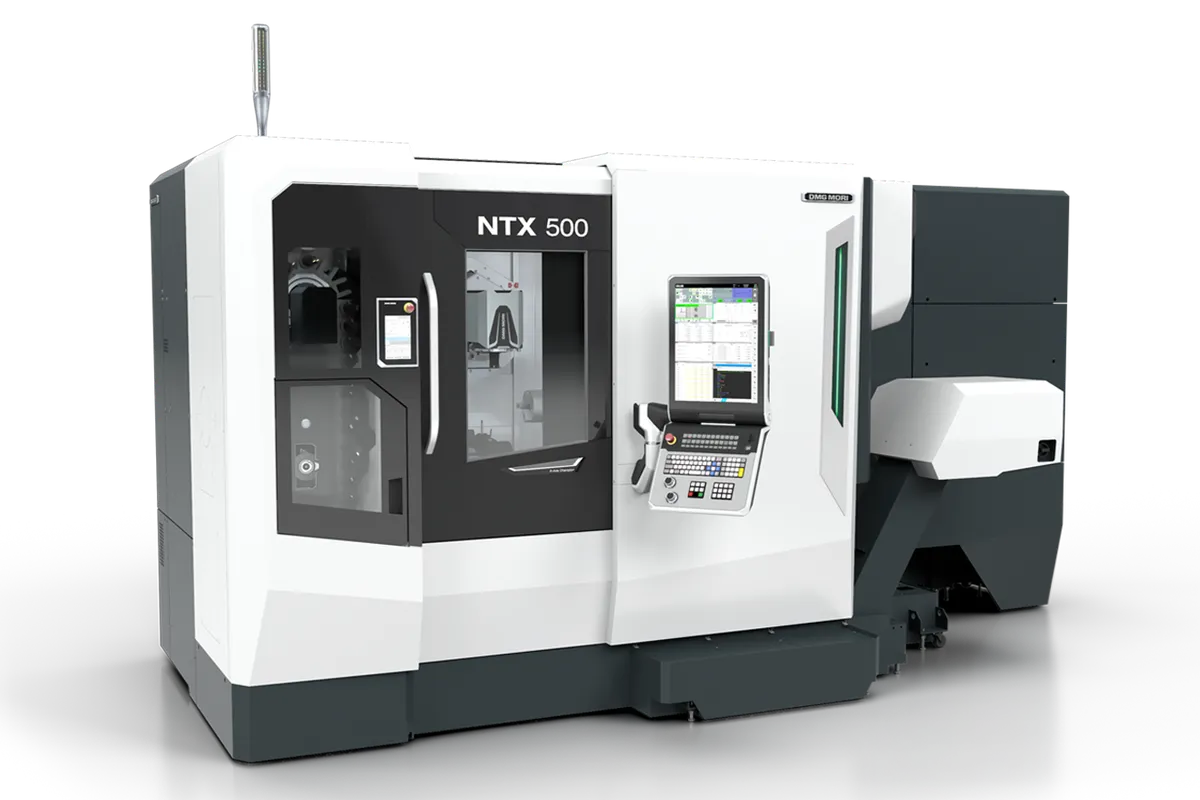

DMG Mori NTX 500

$280,000 - $400,000 Updated 2026-03-13

Key Specifications

Weight

5,500 kg (12,125 lb)

Max Turn Length

311 mm (12.2 in)

max turning diameter

120 mm (4.7 in)

max x axis travel

125 mm (4.9 in)

max y axis travel

100 mm (3.9 in) / +/-50 mm

max z axis travel

560 mm (22 in)

Overview

The DMG Mori NTX 500 is the smallest machine in the NTX turn-mill lineup, designed as a compact multitasking platform for shops producing small, complex parts in a single setup. Think medical implants, watch components, aerospace fasteners, and precision instruments. It brings NTX-level 5-axis turn-mill capability to parts that were previously done on Swiss-type lathes or required multiple setups across a turning center and a small VMC.

The main spindle delivers 11 kW (15 hp) at 10,000 RPM with 36 Nm of torque through a 6-inch chuck. The high spindle speed is optimized for small-diameter work, and the sub-spindle matches at 7.5 kW and 10,000 RPM for backworking. Bar capacity is 38 mm (1.5 in), covering the most common small bar stock sizes.

The compactMASTER turn-mill spindle runs at 12,000 RPM with 7.1 kW (9.5 hp) through a Capto C4 interface. A 20,000 RPM high-speed option is available. The B-axis swivels through 240 degrees (plus/minus 120 degrees) via Direct Drive Motor, same range as the larger NTX machines.

Axis travels are tight but appropriate: 125 mm (4.9 in) in X, 100 mm (3.9 in) in Y (plus/minus 50 mm), and 560 mm (22 in) in Z. Maximum turning diameter is 120 mm (4.7 in) with a turning length of 311 mm (12.2 in). Rapids hit 36 m/min on X and Y, 40 m/min on Z. The standard tool magazine holds 38 stations, generous for this size class. Control is Fanuc 31iB5 with MAPPS. The machine weighs approximately 5,500 kg (12,125 lb) and occupies just 2,380 x 2,028 mm. Pricing starts around $280,000.

Specs sourced from DMG Mori published data and dealer documentation.

Full Specifications

Parameter	Value
Max Turning Diameter	120 mm (4.7 in)
Max Turning Length	311 mm (12.2 in)
Max X Axis Travel	125 mm (4.9 in)
Max Y Axis Travel	100 mm (3.9 in) / +/-50 mm
Max Z Axis Travel	560 mm (22 in)
Bar Capacity	38 mm (1.5 in)
Chuck Size	6 in (152 mm)
Main Spindle Speed	10,000 RPM
Main Spindle Power	11 kW (15 hp)
Main Spindle Torque	36 Nm
Sub Spindle Speed	10,000 RPM
Sub Spindle Power	7.5 kW (10 hp)
Turn Mill Spindle Speed	12,000 RPM (20,000 RPM optional)
Turn Mill Spindle Power	7.1 kW (9.5 hp)
Turn Mill Spindle Interface	Capto C4
B Axis Swivel	+/-120 deg (240 deg total), Direct Drive Motor
Tool Magazine	38 standard
Rapid Traverse Xy	36 m/min (1,417 ipm)
Rapid Traverse Z	40 m/min (1,575 ipm)
CNC Control	Fanuc 31iB5 with MAPPS
Machine Weight	5,500 kg (12,125 lb)
Floor Space	2,380 x 2,028 mm
350 Mm	13.8 in.
580 Mm	22.8 in.
65 Mm	2.6 in.
375 Mm	14.8 in.
150 Mm	5.9 in.
610 Mm	24 in.
Customer Benefits	Before the actual machining, the machining status can be checked by using a graphic

Specifications sourced from us.dmgmori.com — verified 2026-03-28

Strengths & Limitations

Strengths

Full 240-degree B-axis range with Direct Drive Motor brings NTX-level 5-axis turn-mill capability to a compact platform optimized for small parts
10,000 RPM main and sub spindles are optimized for high-speed small-diameter turning, faster than the 4,000-5,000 RPM on larger NTX machines
38-tool standard magazine is extremely generous for this size class, supporting complex parts without manual tool changes
Incredibly compact 2,380 x 2,028 mm footprint lets shops fit NTX multitasking capability into Swiss-machine-sized floor space
Dual spindles enable true done-in-one processing for small parts, eliminating refixturing errors on miniature components
38 mm bar capacity covers the most common small bar stock sizes for medical, watch, and precision instrument production
5,500 kg machine weight makes installation and rigging significantly simpler and cheaper than larger NTX models

Limitations

120 mm turning diameter and 311 mm turning length limit this strictly to small parts; anything beyond 5 inches needs an NTX 1000 or larger
7.1 kW milling spindle is modest; do not expect heavy milling performance in tough materials like Inconel or hardened tool steel
11 kW / 36 Nm main spindle lacks the torque for heavy interrupted cuts; this is a precision machine, not a hogging machine
38 mm bar capacity is tight compared to the NTX 1000 65 mm; larger bar stock production requires stepping up
Capto C4 tooling interface limits tool selection compared to HSK-A63 on larger NTX machines

Best For

Medical device manufacturers producing bone screws, dental implants, spinal cages, and surgical instruments requiring 5-axis turn-mill capability Watch and precision instrument manufacturers needing Swiss-type-quality turning with full B-axis milling in a single setup Aerospace fastener and small component producers running high-mix, tight-tolerance parts from bar stock up to 38 mm Shops consolidating Swiss-type lathe and small VMC operations into a single multitasking platform Electronics and connector manufacturers producing precision-turned components with cross-holes, pockets, and milled features

Frequently Asked Questions

01 What does a DMG Mori NTX 500 cost?

A new NTX 500 starts around $280,000 base. Adding the 20,000 RPM milling spindle, high-pressure coolant, bar feeder, and parts catcher pushes to $340,000-$400,000. Used NTX 500s from 2016-2020 sell in the $120,000-$220,000 range.

02 How does the NTX 500 compare to a Swiss-type lathe?

Swiss-type lathes excel at long, slender parts with high L/D ratios using guide bushings. The NTX 500 offers full B-axis 5-axis milling that most Swiss machines cannot match, but it tops out at 38 mm bar capacity. For parts needing complex milled features beyond Swiss turret capability, the NTX 500 is better.

03 What is the difference between the NTX 500 and the NTX 1000?

The NTX 1000 has a much larger work envelope (500 mm turning diameter vs 120 mm), more powerful spindles (22 kW vs 11 kW main), larger bar capacity (65 mm vs 38 mm), and more powerful milling spindle (18.5 kW vs 7.1 kW). Choose the NTX 500 for small parts under 120 mm diameter.

04 What CAM software works with the NTX 500?

Esprit, hyperMILL, and Mastercam with the turn-mill module all support the NTX 500. The Fanuc 31iB5 control is well-supported by all major CAM vendors.

05 Can the NTX 500 run unattended?

Yes. The 38 mm bar capacity pairs with compact bar feeders for lights-out production. The 38-tool magazine and dual spindles support complex parts without intervention.
