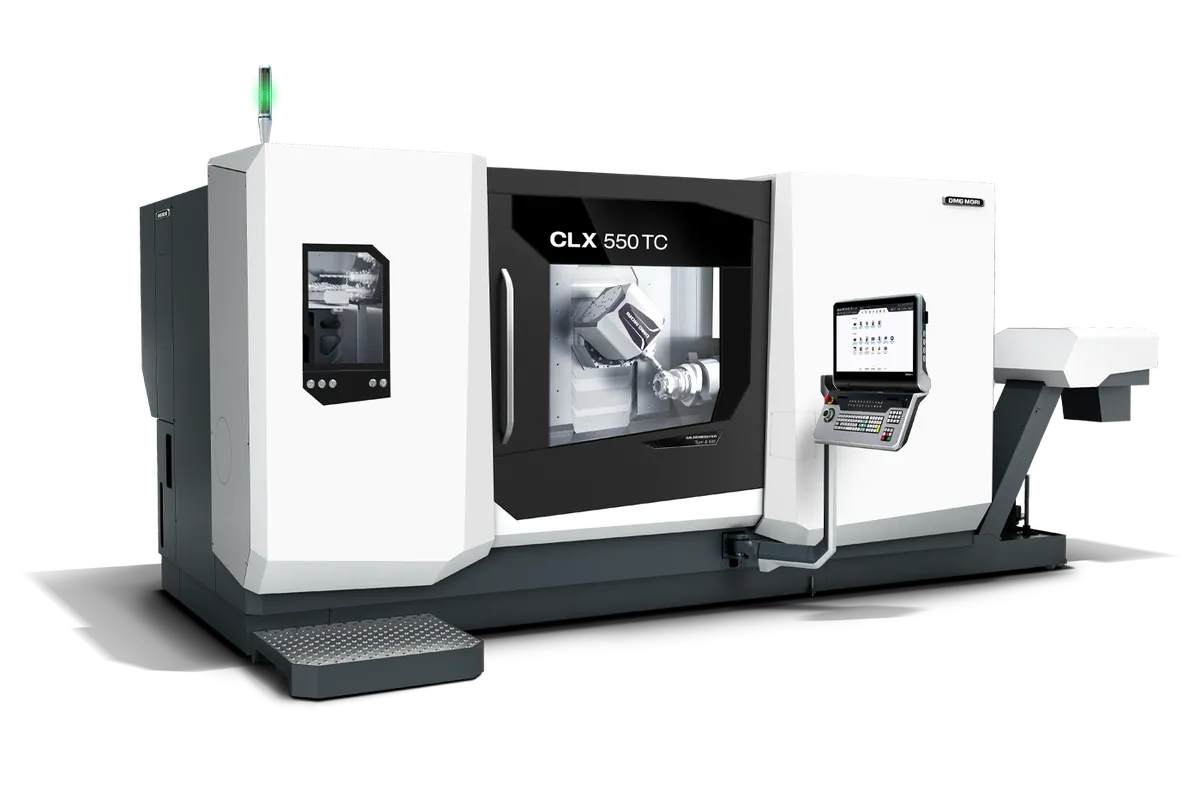

DMG Mori CLX 550 TC

$280,000 - $380,000 Updated 2026-03-13

Key Specifications

Weight

8,800 kg (19,400 lb)

Rapid Traverse

30 m/min (1,181 ipm)

Max Turn Length

550 mm (21.7 in)

max turning diameter

500 mm (19.7 in)

max x axis travel

365 mm (14.4 in)

max y axis travel

100 mm (3.9 in) / +/-50 mm

Overview

The DMG Mori CLX 550 TC is the bigger sibling in the entry-level turn-mill lineup, stretching the CLX platform to handle larger workpieces while keeping the price well below the CTX and NTX tiers. Where the CLX 450 TC tops out at 400 mm diameter and 450 mm length, the 550 TC bumps those numbers to 500 mm (19.7 in) turning diameter and 550 mm (21.7 in) turning length, opening up a noticeably larger range of chuck-work parts.

The main spindle delivers 28 kW (37.5 hp) at 4,500 RPM with 500 Nm of torque through a 12-inch chuck. Bar capacity is 80 mm (3.1 in), a meaningful upgrade over the 450 TC that opens the door to larger bar-fed production. The compactMASTER turn-mill spindle runs at 10,000 RPM with 12 kW (16 hp) on a Capto C4 interface, same as the 450 TC. B-axis swivel covers 110 degrees with Direct Drive.

Axis travels stretch to 365 mm (14.4 in) in X, 100 mm (3.9 in) in Y (plus/minus 50 mm), and 600 mm (23.6 in) in Z. Rapids hit 30 m/min across all linear axes. The standard tool magazine holds 16 stations, expandable to 24. Like the 450 TC, there is no lower turret option, so this stays firmly in the single-channel multitasking category.

The control is CELOS with Siemens SINUMERIK 840D sl. Floor space comes in at roughly 3,400 x 2,200 mm, and the machine weighs about 8,800 kg (19,400 lb). At $280,000-$380,000 for a production-ready configuration, the CLX 550 TC slots in just above the 450 TC and well below the CTX beta 450 TC.

This machine makes the most sense for shops running mid-size parts that need more than live tooling can deliver but do not justify the six-figure premium for an NTX. Think hydraulic manifold blocks, pump housings, valve bodies, and mid-size medical components with turned and milled features. The 80 mm bar capacity is a real differentiator versus the 450 TC for shops running larger diameter bar stock.

Specs sourced from DMG Mori published data and dealer documentation.

Full Specifications

Parameter	Value
Max Turning Diameter	500 mm (19.7 in)
Max Turning Length	550 mm (21.7 in)
Max X Axis Travel	365 mm (14.4 in)
Max Y Axis Travel	100 mm (3.9 in) / +/-50 mm
Max Z Axis Travel	600 mm (23.6 in)
Bar Capacity	80 mm (3.1 in)
Chuck Size	12 in (305 mm)
Main Spindle Speed	4,500 RPM
Main Spindle Power	28 kW (37.5 hp)
Main Spindle Torque	500 Nm
Turn Mill Spindle Speed	10,000 RPM
Turn Mill Spindle Power	12 kW (16 hp)
Turn Mill Spindle Interface	Capto C4
B Axis Swivel	110 deg, Direct Drive
Tool Magazine	16 standard / 24 optional
Rapid Traverse Rate	30 m/min (1,181 ipm)
CNC Control	CELOS with Siemens SINUMERIK 840D sl
Machine Weight	8,800 kg (19,400 lb)
Floor Space	3,400 x 2,200 mm
550 Mm	21.7 in.
1600 Mm	63 in.
102 Mm	4 in.
870 Mm	34.3 in.
270 Mm	10.6 in.
Clx 550 Tc Turn Mill Machine In A New Size	DMG MORI at AMB Stuttgart 2024: Experience MX – Machining Transformation
Details	Strongest version for 210 kg payloadFree accessibility to the machine and the automationStrongest version for 210 kg payloadFree accessibility to the machine and the automation
Strongest Version For 210 Kg Payloadfree Accessibility To The Machine And The Automation	Strongest version for 210 kg payloadFree accessibility to the machine and the automation
Strongest Version For 210 Kg Payload	Free accessibility to the machine and the automation
Customer Benefits	MPC Graph: aktuelle und angelernte Prozesswerte. / MPC Diagnostics: Lagerzustand, Anzahl von Stoß und Crash.

Specifications sourced from us.dmgmori.com — verified 2026-03-28

Strengths & Limitations

Strengths

80 mm bar capacity is a meaningful upgrade over the CLX 450 TC 65 mm, opening up larger bar-fed production without jumping to a CTX-class machine
28 kW main spindle with 500 Nm torque provides noticeably more grunt for heavy turning than the 450 TC 22 kW / 350 Nm
500 mm turning diameter and 550 mm length cover a significantly wider range of chuck-work parts than the 450 TC while staying under $300K base
compactMASTER B-axis milling spindle at 10,000 RPM delivers genuine turn-mill capability rather than compromised live tooling
CELOS with Siemens 840D sl provides the same operator interface as DMG Mori premium CTX and NTX machines
12-inch chuck handles larger workpieces securely for both heavy turning and milling operations
Compact footprint relative to capability keeps floor space requirements manageable for mid-size shops

Limitations

110-degree B-axis range limits angular access compared to the 240-degree range on CTX TC and NTX machines
No lower turret or sub-spindle option means single-channel processing only, with no parallel machining or backworking capability
12 kW milling spindle caps out at 10,000 RPM, adequate for general milling but trails the NTX 18.5 kW / 12,000 RPM
16-station tool magazine fills up quickly on complex multitasking jobs; even the 24-station option is tight for 20+ tools
4,500 RPM main spindle speed is lower than the CLX 450 TC 5,000 RPM, which can matter on small-diameter finishing work

Best For

Shops running mid-size hydraulic manifolds, valve bodies, and pump housings that need turning plus milling in a single setup Automotive tier suppliers producing powertrain components up to 500 mm diameter with cross-holes, flats, and milled features Medical device manufacturers making larger implants and surgical instruments that exceed the CLX 450 TC work envelope Job shops upgrading from Y-axis turning centers to true B-axis turn-mill capability Production environments running 80 mm bar stock with bar feeders for unattended turn-mill processing Shops needing CLX-level pricing with more spindle power and work envelope than the 450 TC platform

Frequently Asked Questions

01 What does a DMG Mori CLX 550 TC cost?

A new CLX 550 TC starts around $280,000 base. Adding the expanded 24-tool magazine, high-pressure coolant, bar feeder, and parts catcher brings the price to $330,000-$380,000.

02 Should I buy the CLX 550 TC or the CLX 450 TC?

If your parts fit within 400 mm diameter and 450 mm length, the 450 TC saves you $30,000-$50,000. Pick the 550 TC if you need the larger work envelope, 80 mm bar capacity, or the extra spindle power (28 kW vs 22 kW). The milling spindle is identical on both.

03 How does the CLX 550 TC compare to the CTX beta 450 TC?

The CTX beta 450 TC is a step up in milling capability with a more powerful compactMASTER spindle (18.5 kW vs 12 kW), wider B-axis range (240 vs 110 degrees), and optional sub-spindle. The CLX 550 TC wins on turning capacity with 500 mm diameter and 80 mm bar capacity.

04 Can the CLX 550 TC run unattended?

Yes. The 80 mm bar capacity works well with magazine bar feeders for lights-out bar stock production. Add a parts catcher, chip conveyor, and tool life management on the CELOS control.
