Chiron FZ 08 S Five Axis

$300,000 - $425,000 Updated 2025-03-15

Key Specifications

X Travel

270 mm (10.6 in)

Y Travel

260 mm (10.2 in)

Z Travel

310 mm (12.2 in)

Max Spindle

40,000 RPM

Spindle Taper

HSK-E40

Tool Capacity

Up to 55 tools

Overview

The Chiron FZ 08 S Five Axis is one of the smallest production 5-axis machining centers in Chiron's lineup, built for high-speed machining of compact precision components. The "FZ" designation indicates single-spindle configuration, while the "S" denotes the swivel-head design that provides full 5-axis simultaneous capability. This machine targets applications where minimum tolerances of a few microns and top surface quality are essential.

The FZ 08 S features X/Y/Z travels of approximately 270 x 260 x 310 mm, optimized for small parts in medical, dental, watchmaking, and precision electronics. The high-speed motorspindle reaches 40,000 RPM with HSK-E40 interface, delivering the speed needed for effective cutting with small-diameter tools. Direct drives on the rotary axes provide high dynamics and positioning accuracy for simultaneous 5-axis contouring.

Chiron's signature compact design philosophy is evident in the FZ 08 S, which delivers a production-ready 5-axis platform in a minimal footprint. The pick-up tool changer handles up to 55 tools with fast chip-to-chip times. Rapid traverse speeds reach 75 m/min on the linear axes, keeping non-cutting time to a minimum. The Siemens SINUMERIK 840D sl control provides the interpolation performance needed for complex 5-axis toolpaths.

The mineral-cast machine bed provides vibration damping and thermal stability that exceeds cast iron, contributing to the surface finish quality the Series 08 is known for. Water-cooled drives maintain dimensional stability during extended production runs. Competitors include the Hermle C 12, DMG Mori CMX 50 U, and Brother Speedio R650X2. New FZ 08 S Five Axis machines typically price between $300,000 and $425,000.

Full Specifications

Parameter	Value
X-Axis Travel	270 mm (10.6 in)
Y-Axis Travel	260 mm (10.2 in)
Z-Axis Travel	310 mm (12.2 in)
Max Spindle Speed	40,000 RPM
Spindle Taper	HSK-E40
Tool Capacity	Up to 55 tools
Rapid Traverse Rate	75 m/min (2,953 ipm)
A Axis Range	Direct drive swivel axis
C Axis Range	360° continuous direct drive
Max Workpiece Diameter	Approx. 250 mm (9.8 in)
Machine Bed	Mineral cast
CNC Control	Siemens SINUMERIK 840D sl
Thermal Management	Water-cooled drives

Specifications sourced from chiron-group.com — verified 2026-03-28

Strengths & Limitations

Strengths

40,000 RPM HSK-E40 spindle excels with small-diameter endmills for micro-features, fine finishing, and high-speed aluminum machining
Mineral-cast machine bed provides superior vibration damping compared to cast iron, directly improving surface finish quality on precision components
Compact footprint maximizes floor space efficiency for shops running multiple production 5-axis machines in tight layouts
Direct drives on rotary axes eliminate backlash and gear wear for high-accuracy simultaneous 5-axis contouring over the machine's lifetime
75 m/min rapid traverse speeds minimize positioning time between cuts, reducing overall cycle times on multi-feature parts
Pick-up tool changer with up to 55 tools provides capacity for complex medical and dental components without interrupting production

Limitations

270 x 260 x 310 mm travel limits the FZ 08 S to small parts, making it unsuitable for anything beyond compact precision components
HSK-E40 tooling is less common and more expensive than HSK-A63, limiting tool availability and increasing tooling costs
Chiron's limited North American dealer and service network can mean longer response times compared to Haas or DMG Mori
High-speed 40,000 RPM spindle lacks the torque for aggressive roughing in steel or titanium — this is a finishing and high-speed platform

Best For

Medical device manufacturers producing small implants, bone screws, spinal components, and surgical instruments from titanium and cobalt-chrome Dental milling centers machining custom abutments, crowns, bridges, and prosthetic frameworks from titanium and zirconia blanks Watch and jewelry manufacturers requiring 5-axis simultaneous machining of miniature movement components and decorative elements Electronics manufacturers producing precision housings, connectors, and heat sinks requiring tight tolerances and excellent surface finish Precision optics companies machining lens mounts, mirror substrates, and micro-mechanical assemblies Automotive suppliers producing small turbocharger components, sensor housings, and precision fittings at high volumes

Frequently Asked Questions

01 What does a new Chiron FZ 08 S Five Axis cost?

New FZ 08 S Five Axis machines typically price between $300,000 and $425,000 depending on spindle configuration, tool magazine size, and automation options. The compact size and specialized 40,000 RPM spindle position it as a premium small-envelope 5-axis platform.

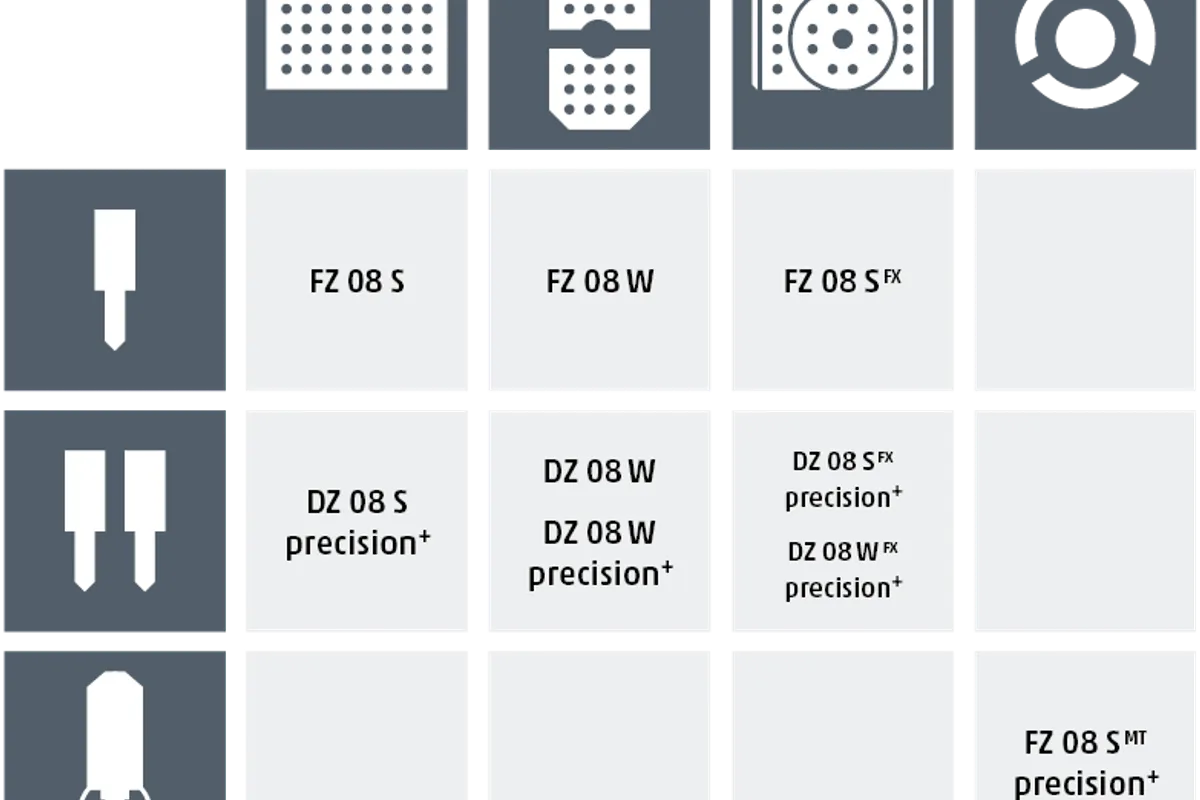

02 How does the FZ 08 S compare to the DZ 08 S?

The FZ 08 S is the single-spindle variant, while the DZ 08 S is the dual-spindle version that machines two parts simultaneously. The DZ 08 S doubles throughput on identical parts but costs significantly more. Choose the FZ for flexibility and mixed-part production; choose the DZ for high-volume production of identical components.

03 Can the FZ 08 S handle titanium?

Yes, but within its capabilities. The 40,000 RPM spindle is optimized for high-speed cutting with small tools. For titanium, you would use moderate speeds and feeds appropriate to the HSK-E40 tooling. The machine handles small titanium medical components well but is not designed for aggressive titanium roughing.

04 What is the pick-up tool changer?

Chiron's pick-up tool change system moves the spindle to the magazine position to exchange tools, rather than using a separate tool change arm. This reduces mechanical complexity, improves reliability, and allows the magazine to be loaded during machining. Tool change times are competitive with arm-type systems.

05 Is the FZ 08 S suitable for a job shop?

The FZ 08 S can work in a job shop focused on small precision parts, but its limited travel and specialized spindle make it most cost-effective in production environments running consistent small-part work. Job shops with varied part sizes would be better served by a larger-envelope machine like the FZ 16S.
