Waterjet Sweden X5
Key Specifications
Accuracy
Repeatability
axis configuration
cutting angle range
table size options
z axis travel
Overview
The Waterjet Sweden X5 is a 5-axis waterjet cutting system from Waterjet Sweden AB, a Gothenburg-based manufacturer that has specialized in waterjet cutting technology since 1993. Waterjet Sweden is one of the leading European waterjet OEMs, with installations across Scandinavia, Germany, France, and globally. The X5 is their flagship 5-axis platform, designed specifically for applications requiring true multi-axis waterjet cutting — aircraft interior panels, automotive stampings, architectural stone, and complex composite components — rather than the taper-compensation approach of tilting heads on otherwise 2.5D machines.
The X5 uses a robot-arm-style or pivot-head-style 5-axis cutting head mounted on a precision gantry, allowing the waterjet nozzle to orient at compound angles for cutting complex 3D profiles, edge bevels, and undercuts that fixed-head waterjet systems cannot address. The machine is available in multiple cutting envelope sizes, from compact configurations handling 2,000 x 1,000 mm sheet stock up to large-format 4,000 x 2,000 mm platforms. The X5's 5-axis capability supports cutting angles up to ±60 degrees from vertical, enabling it to cut true bevels and compound geometries in a single setup without repositioning.
Waterjet Sweden integrates KMT Waterjet pumps (Streamline Pro+ series) in most X5 configurations, operating at 60,000 PSI standard with a 90,000 PSI option for high-speed applications. The machine's CAM software, developed by Waterjet Sweden, includes specialized 5-axis waterjet programming features: collision avoidance, tool path optimization for 5-axis moves, and material-specific cutting databases developed from Waterjet Sweden's application engineering. European electrical standards (400V/50Hz) are standard, with custom configurations for North American power.
Waterjet Sweden X5 systems are priced from approximately €200,000 to €450,000 (approximately $220,000-$495,000 USD) depending on table size, pump configuration, and 5-axis head option. Waterjet Sweden sells through a network of European dealers and has direct representation in North America. The X5 competes with Flow's Mach 500 with Dynamic XD and OMAX's 5-axis A-Jet configurations, but Waterjet Sweden's dedicated 5-axis CAM software is often cited as an advantage for shops doing primarily 3D cutting work.
Full Specifications
| Parameter | Value |
|---|---|
| Axis Configuration | 5-axis (X, Y, Z linear + A, B rotary) waterjet cutting |
| Cutting Angle Range | ±60 degrees from vertical |
| Table Size Options | 2,000 x 1,000 mm to 4,000 x 2,000 mm |
| Z Axis Travel | 300 mm (12 in) standard |
| Positioning Accuracy | ±0.05 mm (±0.002 in) |
| Repeatability | ±0.025 mm (±0.001 in) |
| Pump Type | KMT Streamline Pro+ (60,000 PSI standard; 90,000 PSI optional) |
| Pump Horsepower | 30 HP to 100 HP |
| Max Cutting Thickness | 200+ mm depending on material and pump HP |
| Software | Waterjet Sweden proprietary CAM with 5-axis waterjet toolpath engine |
| Abrasive | Garnet 80 mesh standard |
| Power Standards | 400V / 50Hz, 3-phase (European standard); custom for North America |
| Machine Weight | Approx. 4,000-8,000 kg depending on table size |
Specifications sourced from flowwaterjet.com — verified 2026-03-28
Strengths & Limitations
Strengths
- True 5-axis cutting head (±60 degrees) enables complex compound angles, bevels, and 3D profiles that taper-compensation-only systems cannot produce
- Proprietary 5-axis CAM software developed specifically for waterjet applications — collision avoidance, 5-axis toolpath optimization, and waterjet-specific material databases
- KMT Streamline Pro+ pump integration provides globally serviced pump technology with the largest spare parts network in the waterjet pump industry
- European engineering standards and precision — well-regarded in automotive and aerospace supply chains in Germany, France, and Scandinavia
Limitations
- Limited North American dealer presence compared to Flow or OMAX — parts, service, and application support can have longer response times outside of Europe
- Proprietary CAM software requires dedicated training and has a smaller global user community than FlowMaster or OMAX Intelli-MAX
- European pricing in EUR means USD cost varies with exchange rates, and import duties add cost for North American buyers
Best For
Frequently Asked Questions
01
Flow's Dynamic Waterjet XD is primarily a taper-compensation head that tilts to neutralize the natural kerf taper during 2D cutting — it makes 2D waterjet cuts produce straighter edges at higher speeds. Waterjet Sweden's X5 is a true 5-axis machine where the waterjet nozzle can be oriented at compound angles for cutting actual 3D profiles, bevels, and undercuts. The X5 addresses a different application set: not just straighter 2D cuts, but genuinely complex 3D geometries.
02
Most X5 configurations ship with KMT Waterjet Streamline Pro+ pumps at 60,000 PSI, available in 30 HP to 100 HP. The 90,000 PSI KMT SL-V 90 option is available for shops needing maximum cutting speed on thick materials. KMT pump choice ensures global spare parts availability, which is important for Waterjet Sweden customers outside of Scandinavia who need local pump service options.
03
Yes, Waterjet Sweden has representation in North America through dealers and has North American installations. However, the dealer network is significantly smaller than Flow's or OMAX's. For North American buyers, service response times and parts availability may be longer than for Flow or OMAX machines. Buyers outside Europe should factor this into the total cost of ownership evaluation.
04
Waterjet Sweden's largest markets are automotive (door panels, trunk liners, carpet, headliners), aerospace (interior components, composite panels), stone and marble processing (kitchen countertops, architectural facades), and general metal fabrication. The company has particularly strong penetration in the Scandinavian automotive supply chain — Volvo and related suppliers — and in European stone fabrication.
05
The X5 runs Waterjet Sweden's proprietary CAM software, which includes purpose-built 5-axis waterjet toolpath generation, collision avoidance, and a material cutting database developed from Waterjet Sweden's years of application engineering experience. The software supports DXF/DWG import for 2D programs and STEP/IGES import for 3D programs requiring true 5-axis toolpaths. Training and support are provided by Waterjet Sweden's application engineers.
Videos
WARDJet - Waterjet Cutting Machines

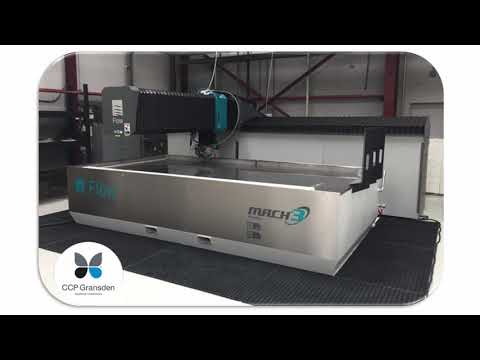

CCP Gransden
