WARDJet Z-Series 3060
Key Specifications
Cutting Area
Pump Pressure
Pump Power
Max Cutting Thickness
Positioning Accuracy
Cutting Speed
Overview
The WARDJet Z-Series 3060 is a large-format CNC abrasive waterjet cutting system with a 3,000 x 6,000 mm (approximately 10 x 20 ft) cutting envelope. WARDJet, based in Tallmadge, Ohio, is a U.S.-based waterjet manufacturer that specializes in custom-engineered waterjet cutting systems, and the Z-Series represents their heavy-duty gantry platform built for shops that regularly cut large sheet or plate materials that smaller waterjet tables cannot accommodate.
The Z-Series is constructed on a heavy welded steel bridge frame with a dual-drive gantry design, where servo-driven rack-and-pinion drives on both sides of the X-axis ensure synchronization across the full 6-meter length. The cutting head travels on a precision linear rail Y-axis, and Z-axis servo control provides automatic standoff height adjustment during cutting. The system is designed to operate with KMT or Jet Edge high-pressure intensifier pumps at pressures up to 90,000 psi, and WARDJet sources and integrates the pump as part of the complete system package.
A key attribute of the Z-Series 3060 is its suitability for multi-head cutting configurations. WARDJet engineers the Z-Series to accept two, three, or even four cutting heads running simultaneously on the Y-axis bridge, enabling parallel cutting of identical parts and dramatically increasing throughput per pump cycle. This multi-head capability makes the Z-Series 3060 a compelling choice for metal service centers, tier-2 automotive suppliers, and heavy fabricators who process large volumes of identical or similar parts from full-size sheets.
WARDJet's U.S. manufacturing base means the company can provide highly customized machine configurations — including extended Z-axis stroke for thick materials, underwater cutting for noise and splash reduction, and specialized abrasive delivery systems for high-garnet-consumption applications. The Z-Series 3060 is supported by WARDJet's Ohio-based engineering and service team, with direct factory support available for installation, training, and ongoing technical assistance.
Full Specifications
| Parameter | Value |
|---|---|
| Cutting Area | 3,000 x 6,000 mm (118 x 236 in / ~10 x 20 ft) |
| Pump Pressure | Up to 90,000 psi (6,200 bar) — typically paired with KMT or Jet Edge intensifier |
| Pump Power | 50–125 HP depending on selected pump configuration |
| Max Cutting Thickness | Up to 300 mm soft materials; up to 200 mm steel at full pump pressure |
| Positioning Accuracy | ±0.08 mm |
| Cutting Speed | Up to 8,000 mm/min rapid traverse; material and quality dependent feed rates |
| Control System | IGEMS or WARDJet CNC software with nesting, taper compensation, and multi-head control |
| Machine Weight | Approx. 14,000 kg (30,865 lb) excluding pump unit |
| Manufacturer | Winnebago |
| Model | Navion 24D |
| Hours | 3,043 h |
| Lifting Capacity | 7,716.19 lb |
| Mileage | 3,043 mi |
| Fuel Type | Diesel |
Specifications sourced from machinio.com — verified 2026-03-28
Strengths & Limitations
Strengths
- 10 x 20 ft cutting envelope handles full-size metal sheets and large structural plate without repositioning
- Engineered for multi-head configurations — two to four simultaneous cutting heads multiply throughput for production cutting
- U.S.-built by WARDJet with direct Ohio factory engineering support and custom configuration options
- Heavy dual-drive gantry construction maintains positioning accuracy across the full 6-meter cutting length
Limitations
- Large footprint requires a dedicated, reinforced concrete floor area of approximately 5 x 9 meters minimum
- Multi-head configurations increase garnet abrasive consumption and water treatment requirements proportionally
- High capital cost appropriate for shops with consistent large-format or high-volume cutting demand
Best For
Frequently Asked Questions
01
The Z-Series 3060 is designed to support two to four cutting heads mounted on the Y-axis bridge simultaneously. Multi-head configurations require a pump with sufficient flow capacity — typically a 100 HP or 125 HP intensifier pump — and are most productive when cutting identical parts in parallel. WARDJet engineers each multi-head configuration specifically for the customer's application.
02
WARDJet typically pairs the Z-Series 3060 with a KMT Waterjet Streamline PRO or SL-V series intensifier pump in the 75–125 HP range. For single-head cutting, a 50–75 HP unit is sufficient. For multi-head configurations, a 100 HP or 125 HP pump is recommended to maintain adequate pressure and flow across all heads simultaneously.
03
Yes. WARDJet offers an underwater cutting option that raises the cutting table's water level to submerge the workpiece during cutting. Underwater cutting reduces airborne noise by approximately 10 dB, virtually eliminates water splash outside the tank, and reduces fine abrasive dust in the work environment — a meaningful benefit in facilities with noise or air quality requirements.
Videos

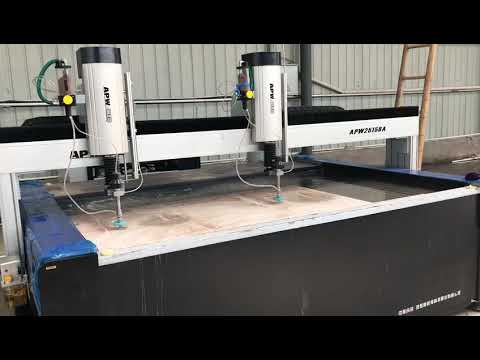

APW Waterjet
