Victor Taichung Vertical Machining Centers (VMC)

Victor Taichung Vcenter-M106

Specs verified 2026-10-05 · machine-tools.victortaichung.com Updated 2026-10-05

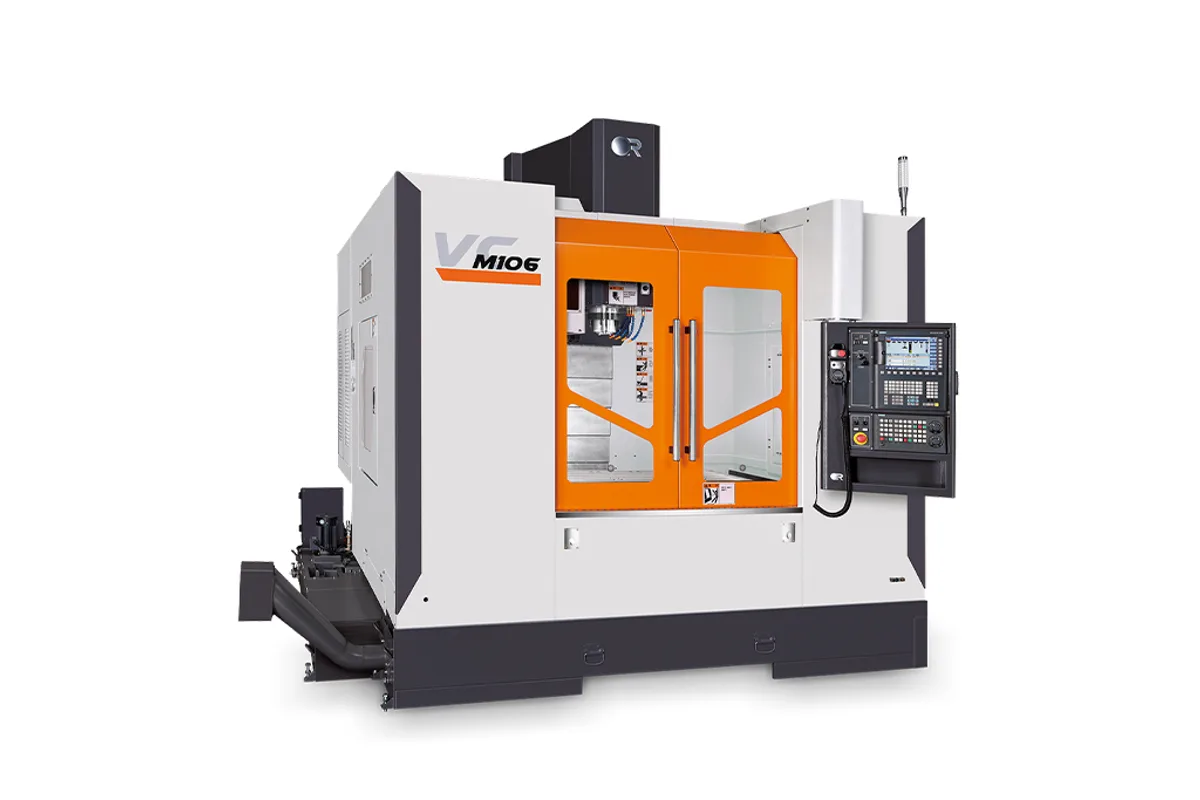

Image: machine-tools.victortaichung.com, Victor Taichung

Key Specifications

Max Spindle

15,000 rpm

Spindle Taper

BBT-40

Tool Capacity

Table Size

1,120 x 520 mm (44.09 x 20.47 in)

Spindle Power

13.5 / 16.2 / 23.25 kW (18 / 22 / 31 HP)

Accuracy

0.010 mm

How much does the Victor Taichung Vcenter-M106 cost?

Price estimate

Uncertain

We do not have a price for the Victor Taichung Vcenter-M106 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Victor Taichung Vcenter-M106 is the high-speed, tall-column member of the maker's 40-taper vertical range. Its spindle runs to 15,000 rpm on a BBT-40 taper with a motor rated 13.5 / 16.2 / 23.25 kW (18 / 22 / 31 HP), and its travels are 1,060 mm (41.73 in) in X and 700 mm (27.55 in) in both Y and Z.

Three things mark it out from the Vcenter-P106, whose table it shares. The spindle is faster and stronger. Y and Z are each 700 mm (27.55 in), where the Vcenter-P106 has 600 mm and 560 mm. And the control is a Siemens Sinumerik 828D with a 10.4 in screen, which no other three-axis machine on the maker's series page lists as standard.

The machine is built heavier to match: 8,375 kg (18,463.69 lb) on a 1,120 x 520 mm (44.09 x 20.47 in) table that carries 700 kg (1,543.23 lb). Guideways are roller-type linear with grease lubrication, and rapid feeds are 32/32/32 m/min. With grease there is no way-oil in the coolant, which matters for long finishing runs.

Twenty-four tools are standard and 30 or 40 are optional, as is an 18000 rpm spindle. The combination of speed, Z height and a contouring-oriented control points to cavity and core work, electrodes and profiled parts where surface finish is the measure.

Full Specifications

Parameter	Value
X Axis Travel	1,060 mm (41.73 in)
Y Axis Travel	700 mm (27.55 in)
Z Axis Travel	700 mm (27.55 in)
Table Size	1,120 x 520 mm (44.09 x 20.47 in)
T-Slots	5 x 18 x 100 mm
Max Table Load	700 kg (1,543.23 lb)
Spindle Taper	BBT-40
Spindle Motor Power	13.5 / 16.2 / 23.25 kW (18 / 22 / 31 HP)
Max Spindle Speed	15,000 rpm
Tool Capacity	24
Max Tool Weight	7 kg (15.43 lb)
Positioning Accuracy	0.010 mm
Repeatability	0.007 mm (±0.0035 mm)
Machine Weight	8,375 kg (18,463.69 lb)

Specifications sourced from machine-tools.victortaichung.com — verified 2026-10-05

Strengths & Limitations

Strengths

15,000 rpm BBT-40 spindle rated 13.5 / 16.2 / 23.25 kW (18 / 22 / 31 HP)
700 mm (27.55 in) of travel in both Y and Z
Siemens Sinumerik 828D control with a 10.4 in screen
Roller-type linear guideways with grease lubrication
Optional 18000 rpm spindle and 30 or 40 tool magazine

Limitations

Only 24 tools as standard
Table is 520 mm deep under a 700 mm (27.55 in) Y travel
Table load of 700 kg (1,543.23 lb) limits mould size
Rapid feeds of 32/32/32 m/min

Best For

Cavity, core and electrode machining at up to 15,000 rpm Profiled parts where surface finish matters Tall workpieces within 700 mm (27.55 in) of Z Shops standardised on Siemens controls

Frequently Asked Questions

01 What spindle does the Vcenter-M106 have?

A BBT-40 spindle with a maximum speed of 15,000 rpm and a motor rated 13.5 / 16.2 / 23.25 kW (18 / 22 / 31 HP). An 18000 rpm spindle is listed as an option for this model.

02 Which control is on the Vcenter-M106?

A Siemens Sinumerik 828D with a 10.4 in screen is listed as standard. The P series machines on the same series page are listed with a different control.

03 What are the travels of the Vcenter-M106?

1,060 mm (41.73 in) in X, 700 mm (27.55 in) in Y and 700 mm (27.55 in) in Z. The table measures 1,120 x 520 mm (44.09 x 20.47 in) and carries 700 kg (1,543.23 lb).

04 How many tools does the Vcenter-M106 magazine hold?

24 tools as standard, with a 7 kg (15.43 lb) weight limit per tool. A 30 or 40 tool magazine is offered as an option for this model.
