Spinner U5-1530
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
Overview
The Spinner U5-1530 is a large-envelope 5-axis universal machining center from the German manufacturer Spinner, designed for shops that need simultaneous 5-axis capability on workpieces too large for typical trunnion-table machines. With 1,500 mm (59 in) X-travel, 530 mm (20.9 in) Y-travel, and 530 mm (20.9 in) Z-travel, the U5-1530 offers a substantial work envelope that can handle aerospace structural components, mold bases, and large precision parts that would otherwise require a much bigger machine.
The machine features a swiveling spindle head (B-axis) with a range of -10 to +100 degrees and a rotary table (C-axis) with 360-degree continuous rotation, providing true simultaneous 5-axis interpolation. The direct-drive spindle delivers up to 12,000 RPM with 22 kW (29.5 HP) continuous power through a BT40/SK40 interface. Higher-speed spindle options with HSK-A63 and up to 15,000 RPM are available. Rapid traverse rates are 36 m/min (1,417 IPM) on linear axes.
Spinner has built its reputation on delivering German-engineered machines at price points significantly below the premium brands like DMG Mori, Hermle, and Grob. The U5-1530 exemplifies this approach: it uses quality linear guideways, precision ballscrews, and a rigid C-frame construction with a mineral cast or cast iron bed, but packages everything more efficiently than the competition. The table accepts workpieces up to 800 mm (31.5 in) diameter and 500 kg (1,102 lb), which is generous for the machine's overall footprint.
The U5-1530 runs on Siemens SINUMERIK 840D sl control with Spinner's own HMI overlay for simplified operation. The tool magazine holds 30 tools standard with options for 60 or 90 tools. The machine includes a full enclosure, chip conveyor, and through-spindle coolant as standard. New U5-1530 machines typically price in the $280,000-$420,000 range, positioning them 20-30% below comparable Hermle or DMG Mori 5-axis machines. Used units from 2018-2023 appear in the $150,000-$280,000 range.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 1,500 mm (59 in) |
| Y-Axis Travel | 530 mm (20.9 in) |
| Z-Axis Travel | 530 mm (20.9 in) |
| B Axis Range | -10° to +100° (swivel head) |
| C Axis | 360° continuous (rotary table) |
| Max Spindle Speed | 12,000 RPM (15,000 RPM optional) |
| Spindle Taper | BT40/SK40 (HSK-A63 optional) |
| Spindle Motor Power | 22 kW (29.5 HP) continuous |
| Table Diameter | 800 mm (31.5 in) |
| Max Workpiece Weight | 500 kg (1,102 lb) |
| Tool Capacity | 30 standard (60/90 optional) |
| Rapid Traverse Rate | 36 m/min (1,417 IPM) |
| CNC Control | Siemens SINUMERIK 840D sl |
| Machine Weight | 10500 Kg |
| Modelu5 1530 Compactbrandspinnertypevertical Machining Centers Control | Contact Sales Rep. |
| Model | U5-1530 COMPACT |
| Brand | SPINNER |
| Type | Vertical Machining Centers (5-Axis or More) |
| X60236y20866z18307 Axis5 Atc54 | TaperSK40-BT40ControlCNC (Siemens 840D SolutionLine)Dimensions3650 x 2540 x 2810 mmWeight10500 Kg |
| X | 60.236" |
| Y | 20.866" |
| Z | 18.307" |
| Axis | 5 |
| Atc | 54 |
| Taper | SK40-BT40 |
| Cnc Control | CNC (Siemens 840D SolutionLine) |
| Dimensions | 3650 x 2540 x 2810 mm |
| Looking To Purchase A New Spinner U5 1530 Compact | Contact Sales Rep. |
Specifications sourced from machinetools.com — verified 2026-03-28
Strengths & Limitations
Strengths
- 1,500 mm X-travel is exceptionally long for a 5-axis machine in this price class, enabling machining of large aerospace and mold components
- German engineering at 20-30% below comparable Hermle or DMG Mori machines makes true 5-axis capability accessible to mid-tier job shops
- Swivel-head B-axis design keeps the workpiece on a flat rotary table, allowing heavier parts than trunnion-table designs of similar price
- Siemens 840D sl control with 5-axis kinematic transformation provides industry-standard programming and postprocessor compatibility
- Through-spindle coolant standard enables effective deep-cavity machining without additional cost or retrofitting
- Spinner's modular machine platform allows significant configuration flexibility in spindle, tool changer, and automation options
Limitations
- BT40 standard spindle limits rigidity for heavy titanium or Inconel roughing; HSK-A63 upgrade adds cost but is essential for aerospace work
- Spinner's dealer and service network outside of Europe is smaller than DMG Mori, Mazak, or Okuma, particularly in North America
- 36 m/min rapids are adequate but slower than premium competitors that offer 50-60 m/min, adding non-cutting time in production
- Brand recognition is lower than established 5-axis names, which can matter for shops selling capability to aerospace OEM customers
Best For
Frequently Asked Questions
01
The U5-1530 offers significantly more X-travel (1,500 mm vs 850 mm on the C 400), making it better suited for long parts. However, the Hermle C 400 is a modified gantry design with superior rigidity for heavy cutting, and Hermle's reputation for out-of-box accuracy is hard to match. The Spinner costs 20-30% less, which makes it attractive for shops where the extended X-travel is the primary need.
02
New U5-1530 machines range from $280,000 to $420,000 depending on spindle choice (BT40 vs HSK-A63), tool magazine capacity, and options like probing, automation, and coolant systems. This positions the U5-1530 competitively against 3-axis machines from premium brands while delivering full 5-axis capability. Used units from 2018-2023 sell in the $150,000-$280,000 range.
03
Spinner has been manufacturing machine tools in Sauerlach, Germany since 1949 and produces over 2,000 machines annually. They are well-established in European markets with a strong reputation for reliability and value. Their machines use proven components from top suppliers (Siemens controls, INA/FAG bearings, Rexroth drives). North American market presence has grown steadily since the 2010s.
04
Yes, but with the HSK-A63 spindle upgrade and appropriate tooling. The standard BT40 spindle is adequate for aluminum and mild steel but lacks the rigidity for aggressive titanium roughing. With the HSK-A63 option and the machine's 9,500 kg weight providing good vibration damping, the U5-1530 can handle titanium finishing and moderate roughing operations effectively.
05
Any CAM system that supports Siemens 840D sl postprocessors works with the U5-1530. Popular choices include Siemens NX, Mastercam, hyperMILL, ESPRIT, and PowerMill. Spinner provides machine kinematic models for major CAM systems to enable accurate simulation. For 5-axis work, hyperMILL and NX are particularly well-suited due to their advanced toolpath strategies.
06
Spinner offers integrated automation options including robotic part loading, pallet changer systems, and bar feeder integration on their turning platforms. For the U5-1530, a 2-pallet changer is available as an option, and the machine can be integrated with third-party robot cells for automated part handling. Spinner's own automation solutions tend to be more cost-effective than third-party alternatives.

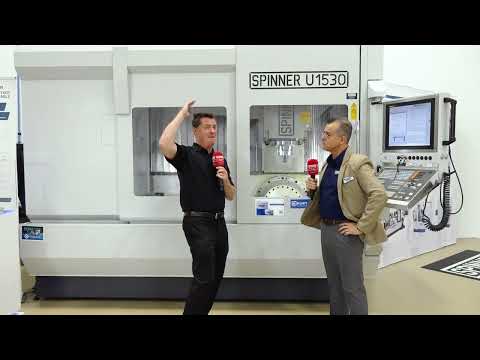

Videos
