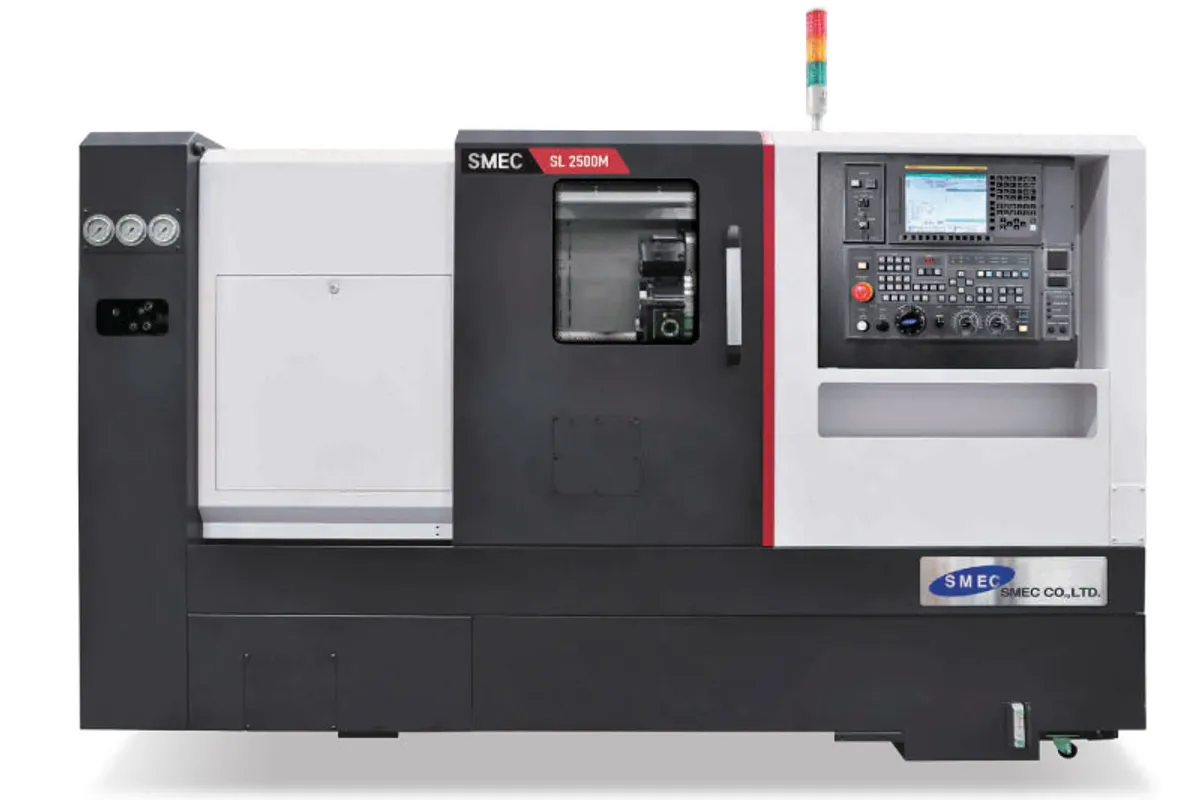

SMEC SL 2500
Key Specifications
X Travel
Z Travel
Max Turn Length
Accuracy
chuck size
max turning diameter
Overview
The SMEC SL 2500 is a 10-inch chuck horizontal turning center that occupies the bread-and-butter segment of CNC lathe production. SMEC (Samsung Machine Engineering Company), now a subsidiary of the KSMC group, builds these machines in Changwon, South Korea — the same industrial corridor that produces Samsung and Doosan machine tools. The SL 2500 targets general-purpose turning work: shaft components, flanges, couplings, bushings, fittings, and anything that fits in a 10-inch (254 mm) chuck with a maximum turning diameter of 460 mm and a maximum turning length of 531 mm.
The spindle is a belt-driven design producing 18.5 kW (25 hp) continuous power with a maximum speed of 4,500 RPM. The A2-6 spindle nose accepts standard 10-inch hydraulic chucks and the 76 mm (3.0 in) bar capacity handles most common bar stock sizes. The box-type slideway construction on both axes provides the rigidity and vibration damping needed for heavy interrupted cuts in cast iron and steel — an advantage over linear guideway machines when hogging material. The tailstock supports workpieces up to 531 mm turning length with hydraulic quill advance.
SMEC equips the SL 2500 with a Fanuc 0i-TF Plus control, which is the industry standard for turning operations. The 12-station bolt-on turret accepts standard OD and ID tools, and turret indexing time is 0.2 seconds per station. Rapid traverse rates are 30 m/min on X and 36 m/min on Z, and positioning accuracy is +/-0.005 mm on both axes. The machine supports standard G-code programming and Fanuc Manual Guide i conversational programming.
At roughly $55,000-$80,000 new depending on options and dealer, the SL 2500 competes directly with the Doosan Lynx 2100, Hwacheon Hi-Tech 200, and Hyundai Wia L2000 in the value-oriented 10-inch lathe segment. Used SL 2500 machines from 2018-2022 typically trade in the $25,000-$45,000 range. The machine offers Korean build quality at a price point that makes it accessible for job shops, contract manufacturers, and production facilities that need reliable turning capacity without premium pricing.
Full Specifications
| Parameter | Value |
|---|---|
| Chuck Size | 10 inch (254 mm) |
| Max Turning Diameter | 460 mm (18.1 in) |
| Max Turning Length | 531 mm (20.9 in) |
| Bar Capacity | 76 mm (3.0 in) |
| Spindle Nose | A2-6 |
| Spindle Speed | 4,500 RPM max |
| Spindle Motor | 18.5 kW (25 hp) continuous |
| Turret | 12-station bolt-on turret |
| Turret Indexing Time | 0.2 sec/station |
| X-Axis Travel | 260 mm (10.2 in) |
| Z-Axis Travel | 555 mm (21.9 in) |
| Rapid Traverse X | 30 m/min |
| Rapid Traverse Z | 36 m/min |
| Positioning Accuracy | +/-0.005 mm (+/-0.0002 in) |
| Guideway Type | Box-type slideways |
| CNC Control | Fanuc 0i-TF Plus |
| Tailstock Quill Diameter | 75 mm (2.95 in) hydraulic |
| Machine Weight | 3,800 kg (8,378 lb) |
Strengths & Limitations
Strengths
- Box-type slideway construction provides superior rigidity and vibration damping for heavy interrupted cuts in cast iron and steel
- Fanuc 0i-TF Plus control is the industry standard, making operator training and G-code compatibility straightforward
- 18.5 kW (25 hp) spindle delivers sufficient power for aggressive roughing on most common materials in the 10-inch chuck class
- 76 mm bar capacity handles a wide range of standard bar stock sizes for production turning
- Korean build quality at a price point 20-30% below comparable Japanese machines in the same class
- 12-station turret with 0.2-second indexing provides quick tool changes for multi-operation turning cycles
Limitations
- Belt-driven spindle limits maximum RPM to 4,500, which can constrain surface speed on small-diameter finishing operations
- Box slideways reduce rapid traverse speed compared to linear guideway machines, adding non-cutting time on longer parts
- 531 mm maximum turning length may be insufficient for shops regularly turning longer shaft components
- SMEC brand recognition in North America trails Doosan and Hyundai Wia, which may affect resale value
- Standard bolt-on turret lacks the rigidity and tool variety of BMT or VDI turret options available on higher-end machines
Best For
Frequently Asked Questions
01
New SL 2500 machines typically price between $55,000 and $80,000 depending on options and dealer. Used machines from 2018-2022 trade in the $25,000-$45,000 range.
02
SMEC (Samsung Machine Engineering Company) was originally part of Samsung's industrial equipment division. It is now operated under the KSMC group and manufactures machines in Changwon, South Korea — the same industrial region as Doosan and other major Korean machine tool builders.
03
Both are 10-inch chuck Korean-built CNC lathes with similar specifications. The SL 2500 uses box slideways while the Lynx 2100 is available in both box and linear guideway configurations. Doosan has a larger North American dealer network and stronger brand recognition, while SMEC typically offers a lower purchase price.
04
The standard SL 2500 is a non-live-tooling turning center. For milling and cross-drilling capability, SMEC offers the SL 2500M variant with a live tool turret and C-axis spindle positioning.
05
The 76 mm bar capacity works with most standard magazine bar feeders from LNS, FMB, IEMCA, and Edge Technologies. The A2-6 spindle nose and standard drawtube configuration ensure compatibility with aftermarket bar feeding systems.
