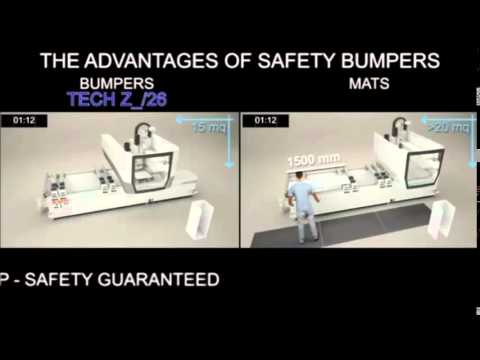

SCM Tech Z5

The Tech Z5 processes panels up to 5,200 mm in X and 2,150 mm in Y as standard, with custom configurations available for longer X travel. Material capability includes: MDF (3–60 mm); particleboard (12–60 mm); plywood (4–60 mm); HPL composite panels; melamine-faced boards; aluminum composite (Alucobond, Dibond — requires carbide tooling); solid surface materials (Corian, Staron, HI-MACS — routing and profiling at appropriate feeds); acrylic and polycarbonate sheet; phenolic resin composite panels. The 250 mm Z-axis stroke accommodates very thick composite sandwich panels used in commercial and marine applications. For materials above 38 mm, the vacuum clamping zones must be carefully configured to ensure adequate hold-down force.

In a fixed-table gantry machine like the Tech Z5, the worktable stays stationary and the gantry (carrying the machining head) moves in X. In a moving-table machine, the table moves in X and the head moves in Y and Z. For large formats, fixed-table gantry designs have advantages: the machine can be built in any X length without the mechanical complexity of driving a large moving table; very heavy workpieces rest on a static table without the inertia and drive challenges of moving them; and the machine structure can be optimized for rigidity at the gantry span. Moving-table designs are common at smaller formats where table inertia is manageable and the concept provides simpler machine construction. For large panels above 3 meters, most manufacturers use fixed-table gantry designs.

Maestro Active HMI is SCM's touchscreen control platform for their CNC machining centers, running on a Windows PC with SCM's proprietary CNC controller underneath. The programming environment includes: xCAM (SCM's native CAM software for routing, drilling, and profile programming); DXF and STEP 3D model import for complex part geometry; parametric macros for standard furniture operations (shelves, cabinet sides, door routing); and direct integration with Cabinet Vision, Alphacam, and other industry-standard CAD/CAM systems via SCM-certified post-processors. The control connects to SCM's teleservice remote diagnostics system, allowing SCM technicians to view machine status and diagnose issues without on-site visits. Maestro Active supports multi-language displays and metric/imperial unit switching.

The Tech Z5 supports both production modes. For nested-based production: the zone-selectable vacuum table holds full-size sheets (5,200 x 2,150 mm), nesting software (within xCAM or external software like Cut Rite) arranges parts on the sheet for maximum material utilization, and the machine routes all parts in a single program cycle. For individual piece processing: pod-and-rail fixtures (available as an option) clamp individual pre-cut parts for profiling, drilling, and edge operations. In large furniture factories, the Tech Z5 often runs nested production for standard components (shelves, sides, tops) and pod-and-rail setups for special-size or profiled components. The machine's large table means each nested sheet produces a large number of standard 4 x 8 ft equivalents worth of components per cycle.

Panels at the 5+ meter scale cannot be manually handled safely — loading a 5,200 x 2,150 mm sheet of 18mm MDF (approximately 200 kg) requires mechanical assistance. Common loading methods for the Tech Z5 include: vacuum lifting panels with a shopfloor crane or jib arm; roller table infeed with vacuum panel lifter for automated loading; and robotic panel loading systems (for high-volume production automation). SCM offers optional automated infeed and outfeed roller tables that integrate with the machine's CNC for semi-automatic loading cycles. For high-volume factories, a complete automated line with panel storage, automatic loading, and outfeed sorting is available from SCM. Manual loading with a vacuum lifter crane is the most common setup for medium-volume custom shops.
