LVD DYNA-PRESS Pro
Key Specifications
Pressing Force
Working Length
Approach Speed
Bending Speed
Return Speed
Y-Axis Positioning Accuracy
Overview

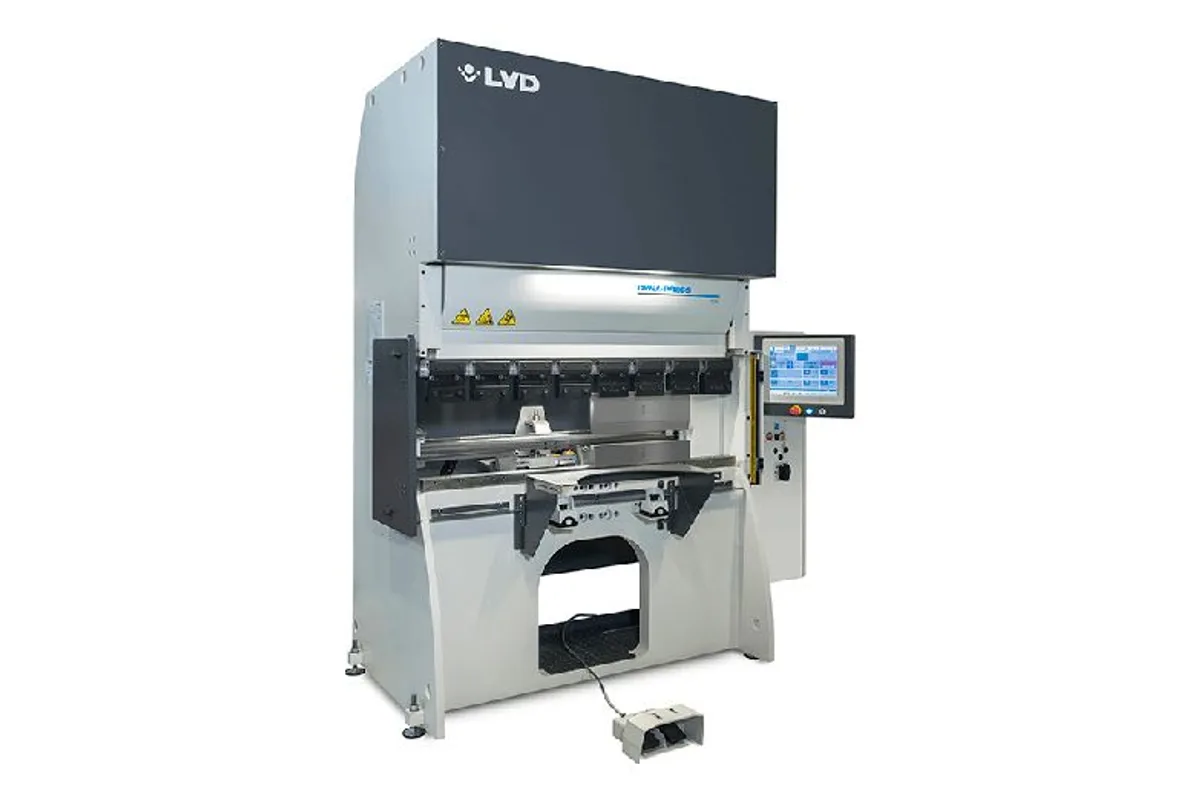

The LVD DYNA-PRESS Pro is LVD's compact, high-performance electric press brake, built around a direct-drive servo-electric architecture that delivers exceptional speed, precision, and energy efficiency in a bench-top or standalone footprint. Available in capacities from 6 to 50 tonnes with working lengths from 1,000 to 2,000 mm, the DYNA-PRESS Pro is positioned as the benchmark machine for high-precision small-part bending in industries such as electronics, aerospace components, medical devices, and precision enclosure manufacturing.
The servo-electric drive provides ram approach speeds up to 300 mm/s and bending speeds as slow as 0.5 mm/s for delicate thin-gauge or precision parts, with instantaneous reversal and positioning repeatability of ±0.005 mm. This level of control is difficult to achieve with hydraulic systems and makes the DYNA-PRESS Pro particularly well-suited to applications where consistent micro-tolerances across high-volume production runs are non-negotiable. The absence of hydraulic oil also means the machine can be installed in clean-room adjacent environments without contamination risk.
LVD equips the DYNA-PRESS Pro with its CADMAN-B Touch control as standard, providing full 3D bend simulation, automatic bend sequence optimisation, offline programming connectivity, and an intuitive operator interface that reduces new-operator training time. The machine's compact footprint — typically under 3 metres wide — allows it to be deployed in cells alongside laser cutting or punching machines without consuming floor space that would otherwise accommodate a larger hydraulic press brake.
The DYNA-PRESS Pro can be equipped with LVD's Easy-Form laser angle measurement system as an option, providing real-time closed-loop angle correction even at the small scales typical of this machine class. For automated production cells, a robot-ready interface is available, enabling the DYNA-PRESS Pro to be integrated into unmanned bending cells with collaborative or industrial robots. LVD's global applications engineering and service network provides comprehensive support from installation through long-term production.
Full Specifications
| Parameter | Value |
|---|---|
| Pressing Force | 6–50 tonnes (model dependent) |
| Working Length | 1,000–2,000 mm (model dependent) |
| Approach Speed | Up to 300 mm/s |
| Bending Speed | 0.5–15 mm/s (programmable) |
| Return Speed | Up to 280 mm/s |
| Y-Axis Positioning Accuracy | ±0.005 mm |
| Throat Depth | 300–350 mm |
| Open Height | 400 mm |
| Back-Gauge | Standard X/R; multi-axis optional |
| Drive System | Direct-drive servo-electric |
| CNC Control | LVD CADMAN-B Touch |
| Machine Weight | 1,800–4,500 kg (model dependent) |
Strengths & Limitations
Strengths
- Direct-drive servo-electric architecture delivers ±0.005 mm ram repeatability — among the best in class for precision small-part bending
- Approach speeds up to 300 mm/s with instantaneous reversal maximise productivity in high-volume thin-gauge bending
- No hydraulic oil eliminates contamination risk, making the machine suitable for electronics, medical, and food-adjacent environments
- Compact footprint integrates easily into automated cells with collaborative or industrial robots via standard robot-ready interface
- CADMAN-B Touch CNC with offline programming and 3D simulation reduces setup time and enables DNC operation from CAM systems
Limitations
- Maximum 50-tonne capacity limits the machine to thin-to-medium gauge materials; it cannot substitute for a larger hydraulic press brake in heavy fabrication
- Premium price point versus Turkish or Asian-built electric press brakes of similar capacity, reflecting LVD's Belgian engineering and global support costs
- Smaller back-gauge range compared to full-size press brakes may limit flexibility for complex deep-draw parts
Best For
Frequently Asked Questions
01
The DYNA-PRESS Pro adds LVD's CADMAN-B Touch CNC (versus a basic Delem control on the standard DYNA-PRESS), upgrades the approach and return speeds, and includes enhanced connectivity features for Industry 4.0 integration. The Pro also offers the Easy-Form angle correction option and robot-ready interface, which are not available on the base DYNA-PRESS.
02
Yes. The servo-electric drive's programmable bending speed makes it particularly well-suited to aluminium, which is sensitive to cracking from excessive bending speed. The CADMAN-B control contains material libraries for common aluminium alloys including 5052, 6061, and 3003, with pre-calculated bend allowances and minimum inside radii.
03
Yes. Easy-Form is available as an option on the DYNA-PRESS Pro and is particularly valuable for precision applications where material thickness variation between batches would otherwise cause angle drift. With Easy-Form, the machine corrects for springback on each individual bend in real time, maintaining target angles without trial bends.
04
The DYNA-PRESS Pro accepts LVD's standard precision-ground Wila-compatible tooling with automatic clamping as standard. Segmented tooling for radius bending, gooseneck punches for deep-flange parts, and special dies are available through LVD's tooling catalogue. The tooling is identical to that used on LVD's larger PPEB and XTEND'N'BEND machines, ensuring compatibility across a mixed LVD fleet.
05
LVD provides a robot-ready interface package that includes the necessary I/O signals, safety zone configuration, and communication protocols for integration with Fanuc, Kuka, ABB, and Universal Robots collaborative arms. LVD's applications engineering team can advise on gripper design and cell layout based on the part family requirements.
