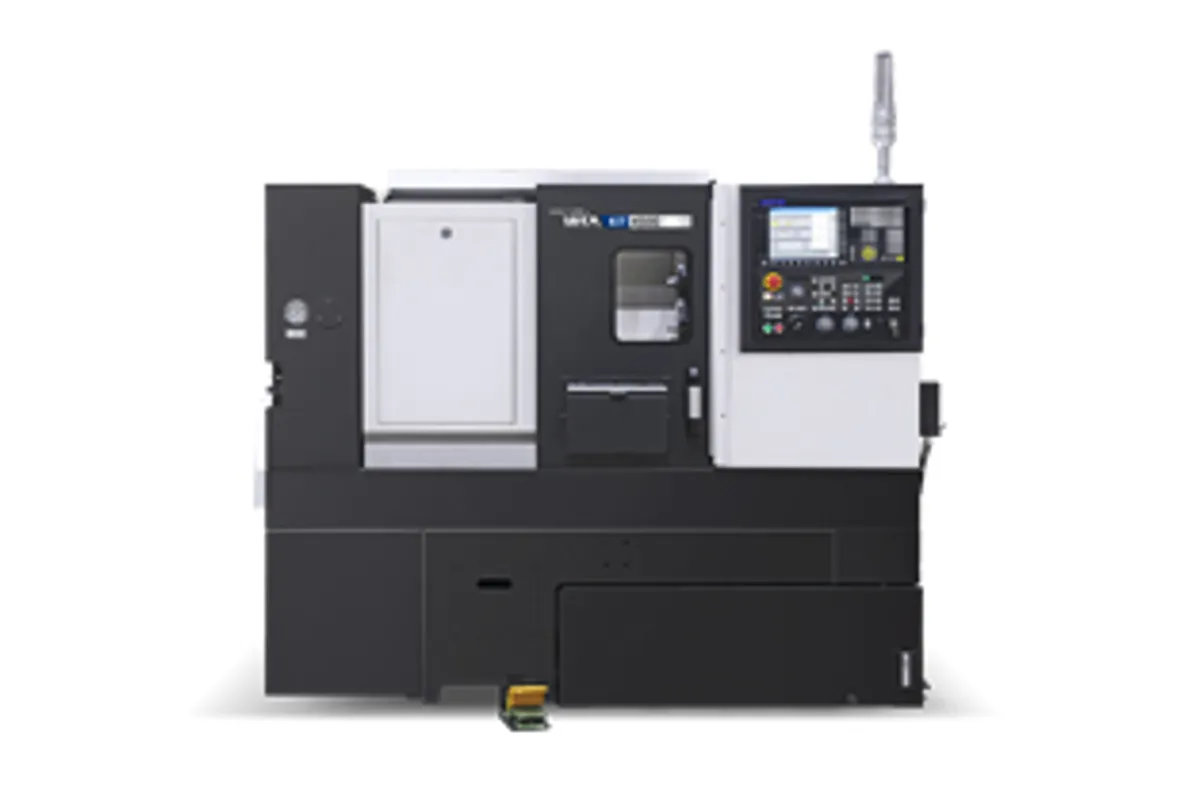

Hyundai WIA KIT4500
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
max turning diameter
chuck size
spindle torque
Overview
The Hyundai WIA KIT4500 is a compact CNC turning center built on a 60-degree slant bed for efficient chip evacuation and operator accessibility. With a maximum turning diameter of 165 mm (6.5 in) and maximum turning length of 300 mm (11.8 in), the KIT4500 is purpose-built for high-speed production of small turned components in automotive, electronics, and precision parts manufacturing.
Powered by a 15/11 kW (20/15 hp) belt-driven spindle reaching 6,000 RPM with 95.5 Nm of torque, the KIT4500 delivers strong cutting performance relative to its compact envelope. The spindle power-to-size ratio is excellent, allowing aggressive feeds and speeds on small-diameter aluminum, brass, and steel components. Rapid traverse rates of 30 m/min on X and 36 m/min on Z keep non-cutting time to a minimum on short-cycle production programs.
The 6-station turret with 20/32 mm tooling capacity keeps the machine compact while providing adequate tool positions for typical small-parts turning programs. Linear motion guideways on both axes deliver the positioning accuracy and speed needed for close-tolerance finishing work. The one-piece cast bed structure provides the thermal stability and rigidity required for consistent production quality across long runs.
The KIT4500 competes with machines like the Haas ST-10Y, Okuma LB1000 EX, and DN Solutions Lynx 2100 in the compact production lathe segment. At an estimated $45,000-$65,000 new, it offers Korean build quality with Fanuc control at a competitive price point for shops focused on small-parts volume production.
Full Specifications
| Parameter | Value |
|---|---|
| Max Turning Diameter | 165 mm (6.5 in) |
| Max Turning Length | mm |
| Chuck Size | inch |
| Max Spindle Speed | 6,000 RPM |
| Spindle Motor Power | 15/11 kW (20/15 hp) |
| Spindle Torque | N.m |
| X Axis Travel | 450 mm (17.7 in) |
| Z Axis Travel | 300 mm (11.8 in) |
| Rapid Traverse X | 30 m/min (1,181 ipm) |
| Rapid Traverse Z | 36 m/min (1,417 ipm) |
| Turret Stations | 6 |
| Tool Size | mm |
| Guideway Type | Linear motion guides |
| Bed Angle | 60 degrees |
| Spindle Drive | Belt driven |
| CNC Control | Fanuc 0i-TF Plus |
| Description | Unit |
| Max Turning Dia | mm |
| Spindle Rpm | r/min |
| Spindle Output | kW |
| Travel | mm |
| Rapid Travel | m/min |
| No Of Tools | EA |
| Type Of Business | Business Type 1VehiclesIT/ElectronicsMachinery/ShipbuildingComplex & Precise PartsDie&Mold IndustryEnergyOthersBusiness Type 2 |
| E Mail | @ |
Specifications sourced from wiamachine.com — verified 2026-03-28
Strengths & Limitations
Strengths
- 60-degree slant bed provides excellent chip evacuation and work zone accessibility for high-volume production
- 15 kW spindle with 95.5 Nm torque delivers strong cutting performance for the compact envelope size
- 36 m/min Z-axis rapid traverse minimizes non-cutting time on short-cycle small-parts programs
- Linear motion guideways provide positioning accuracy and speed for close-tolerance finishing
- Compact footprint fits into tight shop layouts or multi-machine production cells
- One-piece cast bed structure ensures thermal stability and rigidity for consistent part quality
Limitations
- 6-station turret limits tooling capacity for complex multi-tool programs compared to 12-station machines
- 165 mm max turning diameter restricts workpiece size to small components only
- No live tooling option in the base configuration limits mill-turn capability
- Smaller tool size capacity (20/32 mm) may not accommodate all standard toolholders
Best For
Frequently Asked Questions
01
The KIT4500 has a steeper 60-degree bed angle versus the E160A's 45-degree slant, and uses a 6-station turret versus the E160A's 12-station. The KIT4500 has a smaller turning diameter (165 mm vs 280 mm) but higher spindle power (15 kW vs 11 kW). The KIT4500 is more focused on high-speed small-parts production while the E160A handles a wider range of part sizes.
02
New KIT4500 machines typically sell for $45,000-$65,000 depending on options and dealer. This positions it competitively against other compact Korean and Japanese turning centers in the small-parts production segment.
03
Yes, the KIT4500 is designed for bar-feed production. The 6-inch chuck spindle accommodates standard magazine bar feeders from LNS, FMB, and Edge Technologies. Bar feeder integration is one of the primary use cases for this machine.
04
Yes, the KIT4500 is purpose-built for production. The 60-degree bed angle, fast rapid traverse, and compact design are optimized for high-volume, short-cycle turning. The 6,000 RPM spindle and linear guides support tight tolerances across long production runs.
