Hyundai WIA Horizontal Machining Centers

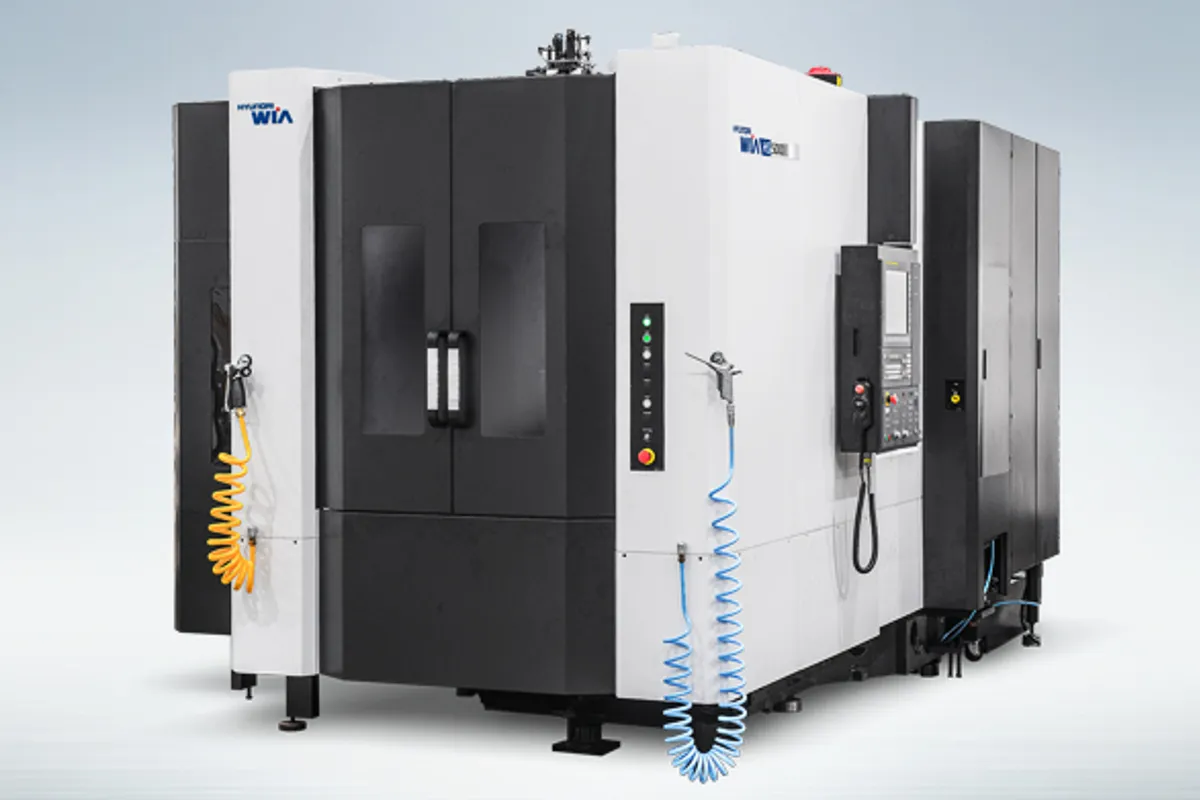

Hyundai WIA HS5000i

$200,000 - $325,000 Updated 2026-03-11

Key Specifications

X Travel

850 mm (33.5 in)

Y Travel

700 mm (27.6 in)

Z Travel

750 mm (29.5 in)

Spindle Taper

BT40 (BCV #40)

Tool Capacity

60 tools

Rapid Traverse

50 m/min (1,968 ipm) X/Y/Z

Overview

The Hyundai WIA HS5000i is a high-speed 500 mm pallet horizontal machining center built for shops that need fast cycle times and reliable production. With a 12,000 RPM BT40 spindle delivering 25 kW (34 HP) and 167 Nm of torque, the HS5000i hits the sweet spot between speed and cutting power for a wide range of materials. The machine's Meehanite cast iron bed and large linear roller guideways provide the rigidity needed to push feed rates without sacrificing accuracy.

The work envelope covers 850 x 700 x 750 mm (33.5 x 27.6 x 29.5 inches) of X/Y/Z travel, with a maximum part swing of 780 mm diameter by 980 mm height. The dual-pallet automatic pallet changer enables pendulum machining for continuous production, and the 60-position automatic tool changer with dual-arm ATC delivers chip-to-chip times of 3.8 seconds. Rapid traverse rates hit 50 m/min (1,968 IPM) on all axes — fast enough to keep non-cutting time minimal on production programs.

Controlled by the Fanuc 32i-B, the HS5000i includes standard features that many competitors charge extra for: 1,000 PSI through-spindle coolant, oil jacket spindle cooling, telescopic way covers, dual screw-type chip conveyors, and a full enclosure splash guard. New machines typically price between $200,000 and $325,000, positioning the HS5000i as a strong value alternative to the Mazak HCN-5000 and Okuma MB-5000H. The HS5000i competes directly with those machines and the Makino A51nx in the 500 mm pallet HMC segment. Specs sourced from Hyundai WIA published data, Hillary Machinery, and dealer documentation.

Full Specifications

Parameter	Value
X-Axis Travel	850 mm (33.5 in)
Y-Axis Travel	700 mm (27.6 in)
Z-Axis Travel	750 mm (29.5 in)
Pallet Size	500 x 500 mm (19.7 x 19.7 in)
Number Of Pallets	2 (APC standard)
Max Pallet Load	500 kg (1,102 lb)
Max Part Swing	Ø 780 x H 980 mm (Ø 30.7 x H 38.6 in)
Spindle Speed	12,000 RPM
Spindle Taper	BT40 (BCV #40)
Spindle Motor Power	25 kW (34 hp)
Spindle Torque	167 Nm (123 ft-lb)
Tool Capacity	60 tools
Tool Change Time	1.1 sec T-T / 3.8 sec C-C
Rapid Traverse Rate	50 m/min (1,968 ipm) X/Y/Z
Through Spindle Coolant	1,000 PSI standard
CNC Control	Fanuc 32i-B
Machine Weight	15,000 kg (33,069 lb)
Machine Dimensions	4,089 x 5,338 x 3,097 mm (161 x 210 x 122 in) L x W x H
Power Requirements	40 kVA / 220V 3-phase
Tucson Hybrid	⁠
42075 As Shown	$41,295 as shown
Tucson Plug In Hybrid	⁠
Ioniq 5	⁠
45075 As Shown	$54,300 as shown
Santa Fe Hybrid	⁠
48700 As Shown	$47,850 as shown
Palisade Hybrid	⁠
Ioniq 9	⁠
Elantra Hybrid	⁠
29800 As Shown	$29,800 as shown
Sonata Hybrid	⁠
Sonata Gas Hybrid	⁠
Ioniq 6	⁠
Venue	⁠
22825 As Shown	$23,450 as shown
Kona	⁠
Tucson	⁠
39425 As Shown	$38,645 as shown
Santa Cruz	⁠
43700 As Shown	$42,750 as shown
Santa Fe	⁠
47600 As Shown	$46,850 as shown
Palisade	⁠
54560 As Shown	$51,000 as shown
Elantra	⁠
27175 As Shown	$26,775 as shown
35100 As Shown	$34,350 as shown
Sonata	⁠
36050 As Shown	$35,500 as shown
Concept Vehicle	⁠
Power	329hp Combined
Available	17inch Alloy wheels
Power Up To	201 hp/150 kW
Combined	139hp
Standard	HTRAC AWD⁠HTRAC AWD is available on all trims.
Up To	320 hp/239 kW⁠320 hp/239 kW standard on AWD models.
Optional	HTRAC AWD⁠HTRAC All Wheel Drive (AWD) available on all trims.

Specifications sourced from wiamachine.com — verified 2026-03-28

Strengths & Limitations

Strengths

12,000 RPM spindle speed with 25 kW power provides strong performance across aluminum, steel, and cast iron without compromising on either speed or torque
1,000 PSI through-spindle coolant is included as standard, not an extra-cost option — a significant cost savings compared to competitors that charge $5,000-$15,000 for TSC
50 m/min rapid traverse on all three axes minimizes positioning time between features, keeping cycle times competitive on production programs
60-tool ATC with 3.8-second chip-to-chip time handles complex multi-tool programs without excessive tool change delays
Competitive pricing at $200K-$325K positions the HS5000i 15-25% below comparable Japanese HMCs while delivering equivalent performance

Limitations

500 kg pallet capacity is modest compared to competitors — the Okuma MB-5000H handles 800 kg — limiting heavy fixture and workpiece combinations
Hyundai WIA's North American service network is smaller than Mazak, Okuma, or Haas, which can impact service response times
BT40 spindle limits the machine to lighter cuts compared to BT50 alternatives when machining large steel or cast iron parts
Brand recognition in North America lags behind Japanese and American competitors, which can affect resale value

Best For

Automotive component manufacturers producing aluminum and cast iron parts in medium-to-high volumes where cycle time matters Job shops and contract manufacturers seeking a capable 500mm HMC at a competitive price point Shops running aluminum aerospace structural components that benefit from the 12,000 RPM spindle and high-pressure through-spindle coolant Production environments needing pendulum machining with dual-pallet capability for continuous spindle utilization Shops expanding into horizontal machining from vertical mills and looking for strong value without sacrificing capability

Frequently Asked Questions

01 What does a new Hyundai WIA HS5000i cost?

New HS5000i machines typically start around $200,000 and can reach $325,000 with options like expanded tool magazines, automation integration, and 4th-axis rotary tables. This positions the HS5000i 15-25% below comparable Japanese HMCs like the Mazak HCN-5000 and Okuma MB-5000H, making it one of the strongest values in the 500mm pallet HMC segment.

02 Is the HS5000i the same as the HS5000 II?

No. The HS5000i is the first generation, and the HS5000 II is the updated version with improvements including a 15,000 RPM spindle option, updated control, and refined thermal management. If buying new, the HS5000 II is the current model. Used HS5000i machines are excellent values.

03 Can the HS5000i be automated beyond the dual-pallet APC?

Yes. The HS5000i can be integrated with multi-pallet systems from Fastems and other automation providers. Hillary Machinery offers HS5000i configurations with 6-pallet pool systems and Fastems multi-pallet automation for full lights-out production.

04 How does the HS5000i compare to the Makino A51nx?

The Makino A51nx offers 14,000 RPM spindle speed, faster rapids, and Makino's renowned thermal stability for superior accuracy. The HS5000i counters with a lower price point, more standard features (1,000 PSI TSC included), and 60 tools vs the A51nx's standard 60. The Makino is the precision choice; the Hyundai WIA is the value choice.

05 What is the spindle warmup procedure?

The HS5000i includes an oil jacket spindle cooler that maintains spindle temperature during operation. A standard spindle warmup cycle of 15-20 minutes is recommended before production cutting to stabilize thermal conditions. The oil jacket cooling significantly reduces thermal growth compared to air-cooled spindles.

06 What chip management does the HS5000i use?

The HS5000i comes standard with dual screw-type chip conveyors that handle chips from both sides of the work zone. Combined with the full enclosure splash guard and 1,000 PSI through-spindle coolant, chip evacuation is effective for both aluminum and steel applications.
