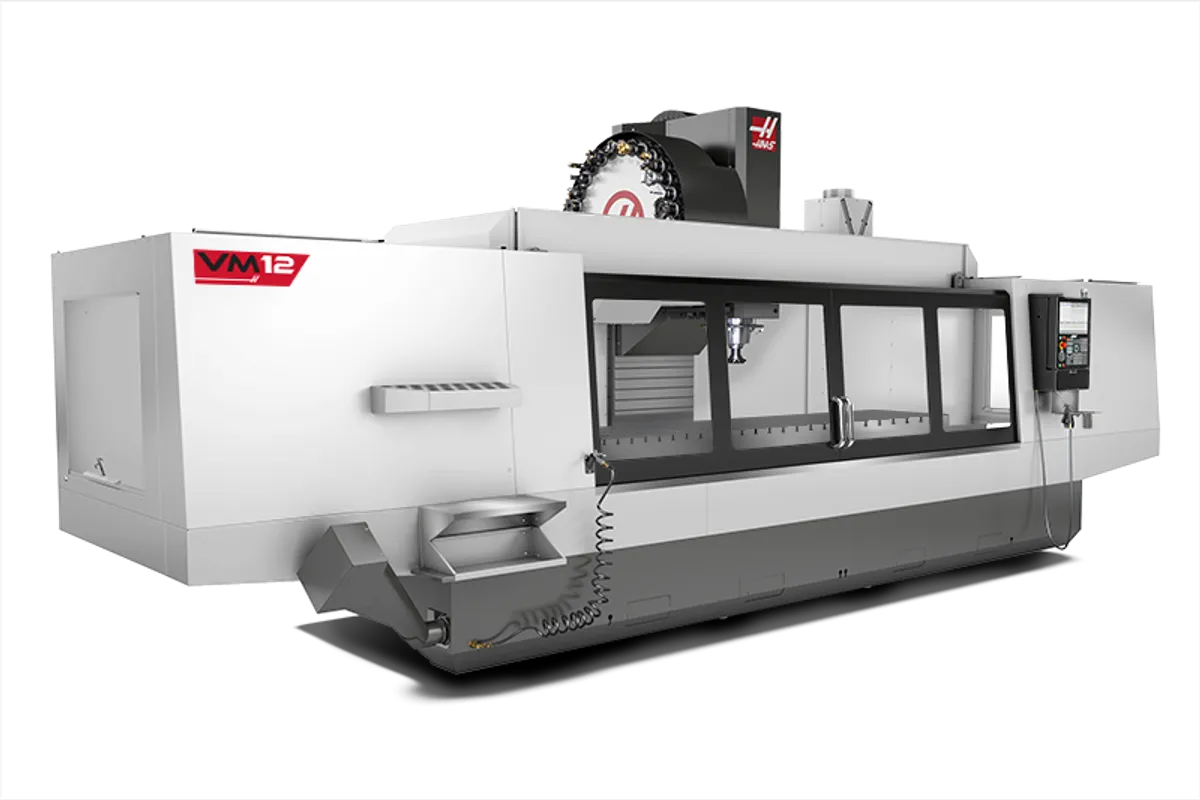

Haas VM-12/50
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
How much does the Haas VM-12/50 cost?
Manufacturer list price
As published by Haas Automation, verified 2026-10-02. Options, tooling, freight and installation are extra.
Overview
The Haas VM-12/50 combines 150 in (3,810 mm) of X travel with a 50-taper geared spindle rated 60 hp (44.7 kW). Travels are 150 × 32 × 30 in (3,810 × 813 × 762 mm) on a 150 × 28 in (3,810 × 711 mm) table, and Haas lists a starting price of US$463,995.
Three neighbours frame the choice. The VM-12 is the same size with a 30 hp (22.4 kW), 12,000 rpm 40-taper spindle. The VM-10/50 has the same spindle rating on 120 in (3,048 mm) of X. The VM-14/50 keeps the 150 in X travel and widens Y to 40 in (1,016 mm) against 32 in (813 mm) here. That leaves this model for parts that are long, demanding to cut, and no wider than the table.
The spindle produces 350 ft-lbf (475 N·m) at 900 rpm through a 2-speed gearbox and runs up to 10,000 rpm. Along 150 in of travel that torque is useful for slotting and drilling long steel sections, or for facing a long weldment in one clamping instead of moving it under a shorter machine. X and Y thrust are 4,100 lbf (18,238 N) and Z thrust is 5,600 lbf (24,910 N). The 30+1 changer takes tools up to 4 in (102 mm) in diameter when full and up to 30 lb (13.6 kg).
The limits are worth reading before the travels. Table load is 4,000 lb (1,814 kg), and a steel part that fills a table of this length gets there fast. X feed and X rapid both stop at 360 ipm (9.1 m/min). Tool changes take 4.2 s tool-to-tool and 6.3 s chip-to-chip. The supply is 105 A at 220 VAC or 53 A at 440 VAC three-phase. Haas's table for this model has no shipping weight or crate sizes, so ask for them before planning delivery; the VM-12 is listed at 36,300 lb (16,466 kg).
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 150 in (3,810 mm) |
| Y-Axis Travel | 32 in (813 mm) |
| Z-Axis Travel | 30 in (762 mm) |
| Spindle Nose to Table (max) | 34 in (864 mm) |
| Spindle Nose to Table (min) | 4 in (102 mm) |
| Spindle Motor Power | 60 hp (44.7 kW) |
| Max Spindle Speed | 10,000 rpm |
| Spindle Torque | 350 ft-lbf @ 900 rpm (475 N·m @ 900 rpm) |
| Spindle Drive | 2-Speed Gearbox |
| Spindle Taper | CT or BT 50 |
| Spindle Bearing Lubrication | Air / Oil Injection |
| Spindle Cooling | Coolant Jacket |
| Table Size | 150 × 28 in (3,810 × 711 mm) |
| T-Slot Width | 0.626 in to 0.63 in (15.9 mm to 16 mm) |
| T-Slot Center Distance | 4.92 in (125 mm) |
| T-Slots | 5 in X and 30 in Y |
| Max Table Load | 4,000 lb (1,814 kg) |
| Max Cutting Feedrate | 360 ipm (9.1 m/min) |
| Rapid Traverse X | 360 ipm (9.1 m/min) |
| Rapid Traverse Y | 600 ipm (15.2 m/min) |
| Rapid Traverse Z | 600 ipm (15.2 m/min) |
| Max Thrust X | 4,100 lbf (18,238 N) |
| Max Thrust Y | 4,100 lbf (18,238 N) |
| Max Thrust Z | 5,600 lbf (24,910 N) |
| Tool Changer Type | SMTC |
| Tool Capacity | 30+1 |
| Max Tool Diameter (full magazine) | 4 in (102 mm) |
| Max Tool Diameter (adjacent pockets empty) | 8 in (203 mm) |
| Max Tool Diameter Extra Large Adjacent Empty | 10 in (254 mm) |
| Max Tool Length | 16 in (406 mm) |
| Max Tool Weight | 30 lb (13.6 kg) |
| Tool Change (tool-to-tool) | 4.2 s |
| Tool Change (chip-to-chip) | 6.3 s |
| Coolant Capacity | 95 gal (360 L) |
| Air Required | 4 scfm @ 100 psi (113 L/min @ 6.9 bar) |
| Inline Air Hose | 3/8 in |
| Air Coupler | 3/8 in |
| Air Pressure Min | 80 psi (5.5 bar) |
| Electrical Service (low voltage) | 220 VAC 3-phase, 105 A |
| Electrical Service (high voltage) | 440 VAC 3-phase, 53 A |
Specifications sourced from haascnc.com — verified 2026-10-02
Strengths & Limitations
Strengths
- 150 in (3,810 mm) of X travel served by a 60 hp (44.7 kW) spindle
- 350 ft-lbf (475 N·m) at 900 rpm through a 2-speed gearbox, against 90 ft-lbf (122 N·m) at 2,000 rpm on the VM-12
- X and Y thrust of 4,100 lbf (18,238 N), Z thrust of 5,600 lbf (24,910 N)
- Tools up to 30 lb (13.6 kg) and 16 in (406 mm) long in a 30+1 side-mount changer
- 30 T-slots in Y and 5 in X on a 150 × 28 in (3,810 × 711 mm) table
Limitations
- 4,000 lb (1,814 kg) table load on a 150 in (3,810 mm) table restricts long steel workpieces
- X cutting feed and rapid are limited to 360 ipm (9.1 m/min)
- Y travel is 32 in (813 mm); the VM-14/50 has 40 in (1,016 mm) with the same X travel
- 4.2 s tool-to-tool and 6.3 s chip-to-chip tool changes
- No shipping weight or crate dimensions appear in Haas's table for this model
Best For
Frequently Asked Questions
01
Only in the spindle and tooling. The VM-12/50 has a CT or BT 50 spindle with 60 hp (44.7 kW), 10,000 rpm and 350 ft-lbf (475 N·m) at 900 rpm. The VM-12 has a CT40, BT40 or HSK-A63 spindle with 30 hp (22.4 kW), 12,000 rpm and 90 ft-lbf (122 N·m) at 2,000 rpm. Travels, table size, table load and feed rates are listed the same.
02
When the work fits in the 120 in (3,048 mm) of X that the VM-10/50 offers. The VM-10/50 has the same 60 hp (44.7 kW), 350 ft-lbf (475 N·m) spindle rating, the same 32 in (813 mm) of Y and the same 4,000 lb (1,814 kg) table load on a 120 × 28 in (3,048 × 711 mm) table. The VM-12/50 is for parts or fixture rows that need the full 150 in (3,810 mm).
03
The side-mount changer holds 30+1 tools. Diameter is limited to 4 in (102 mm) with every pocket in use and 8 in (203 mm) with adjacent pockets empty; Haas lists 10 in (254 mm) for extra-large tools with adjacent pockets empty. Length can be up to 16 in (406 mm) and weight up to 30 lb (13.6 kg).
04
4,000 lb (1,814 kg). The table is 150 × 28 in (3,810 × 711 mm), so the rating is low relative to the area: add the part, the fixtures and any risers before committing a heavy steel job, and consider whether the part can be lightened or split.
05
Three-phase power at 220 VAC and 105 A, or 440 VAC and 53 A. Compressed air at 4 scfm and 100 psi (113 L/min at 6.9 bar), with no less than 80 psi (5.5 bar) at the machine. The coolant tank capacity is 95 gal (360 L).
