Haas VM-10
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
How much does the Haas VM-10 cost?
Manufacturer list price
As published by Haas Automation, verified 2026-10-02. Options, tooling, freight and installation are extra.
Overview

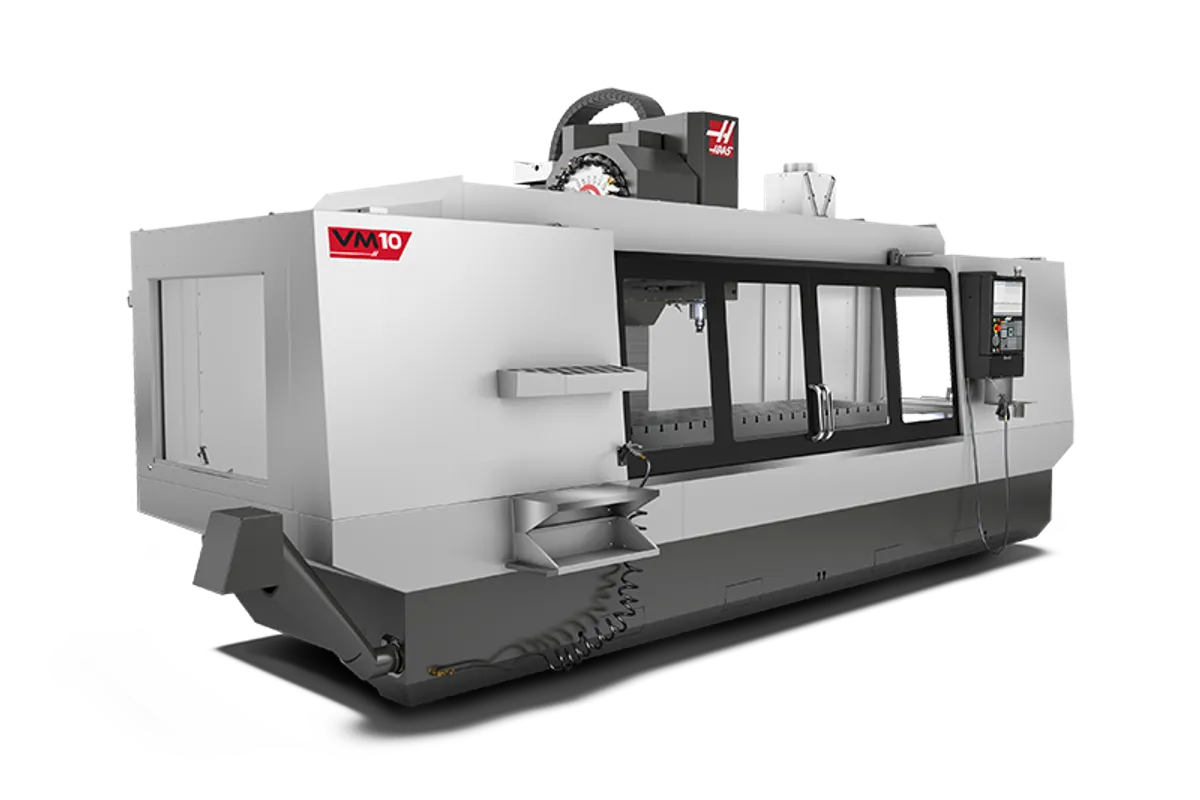

The Haas VM-10 is the smallest of Haas's long-bed mold machines: 120 in (3,048 mm) of X travel on a 120 × 28 in (3,048 × 711 mm) table, with 32 in (813 mm) of Y and 30 in (762 mm) of Z. The spindle is a 40-taper inline direct-drive unit, 30 hp (22.4 kW) and 12,000 rpm. Haas lists a starting price of US$349,995.
Its proportions decide what it is good at. The table is more than four times as long as it is wide, and the 32 in of Y covers the 28 in width with only a small margin. That suits long, slender work such as rails, die plates and long mold inserts, or a line of vises set end to end. Haas lists 5 T-slots running in X and 24 in Y, on 4.92 in (125 mm) centres, so there is a cross slot at regular intervals along the whole length for locating fixtures.
The long axis is also the slow one. X rapids are 360 ipm (9.1 m/min), the same as the maximum cutting feedrate, while Y and Z rapid at 600 ipm (15.2 m/min). Programs that hop between the two ends of the table spend real time in transit, so grouping operations by position pays off. Tool changes are 2.8 s tool-to-tool and 3.6 s chip-to-chip from a 30+1 side-mount changer.

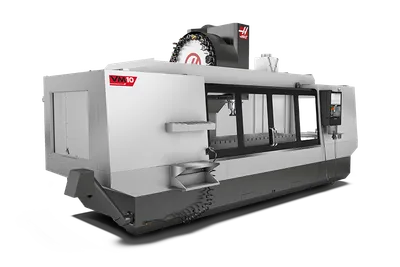

Torque peaks at 90 ft-lbf (122 N·m) at 2,000 rpm, and table load is 4,000 lb (1,814 kg), a figure that does not grow with table length. Buyers who need more width should compare the VM-11, which keeps the same table and X travel with 40 in (1,016 mm) of Y; those who need more length, the VM-12 with 150 in (3,810 mm) of X. The VM-10/50 is this machine with a 60 hp (44.7 kW) 50-taper spindle. The VM-10 ships at 30,100 lb (13,654 kg).
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 120 in (3,048 mm) |
| Y-Axis Travel | 32 in (813 mm) |
| Z-Axis Travel | 30 in (762 mm) |
| Spindle Nose to Table (max) | 34 in (864 mm) |
| Spindle Nose to Table (min) | 4 in (102 mm) |
| Spindle Motor Power | 30 hp (22.4 kW) |
| Max Spindle Speed | 12,000 rpm |
| Spindle Torque | 90 ft-lbf @ 2,000 rpm (122 N·m @ 2,000 rpm) |
| Spindle Drive | Inline Direct-Drive |
| Spindle Taper | CT40 / BT40 / HSK-A63 |
| Spindle Bearing Lubrication | Air / Oil Injection |
| Spindle Cooling | Coolant Jacket |
| Table Size | 120 × 28 in (3,048 × 711 mm) |
| T-Slot Width | 0.626 in to 0.63 in (15.9 mm to 16 mm) |
| T-Slot Center Distance | 4.92 in (125 mm) |
| T-Slots | 5 in X and 24 in Y |
| Max Table Load | 4,000 lb (1,814 kg) |
| Max Cutting Feedrate | 360 ipm (9.1 m/min) |
| Rapid Traverse X | 360 ipm (9.1 m/min) |
| Rapid Traverse Y | 600 ipm (15.2 m/min) |
| Rapid Traverse Z | 600 ipm (15.2 m/min) |
| Max Thrust X | 3,400 lbf (15,124 N) |
| Max Thrust Y | 3,400 lbf (15,124 N) |
| Max Thrust Z | 5,600 lbf (24,910 N) |
| Tool Changer Type | SMTC |
| Tool Capacity | 30+1 |
| Max Tool Diameter (full magazine) | 2.5 in (64 mm) |
| Max Tool Diameter (adjacent pockets empty) | 5 in (127 mm) |
| Max Tool Diameter Extra Large Adjacent Empty | 6 in (152 mm) |
| Max Tool Length | 16 in (406 mm) |
| Max Tool Weight | 12 lb (5.4 kg) |
| Tool Change (tool-to-tool) | 2.8 s |
| Tool Change (chip-to-chip) | 3.6 s |
| Coolant Capacity | 95 gal (360 L) |
| Air Required | 4 scfm @ 100 psi (113 L/min @ 6.9 bar) |
| Inline Air Hose | 3/8 in |
| Air Coupler | 3/8 in |
| Air Pressure Min | 80 psi (5.5 bar) |
| Electrical Service (low voltage) | 220 VAC 3-phase, 70 A |
| Electrical Service (high voltage) | 440 VAC 3-phase, 35 A |
| Shipping Domestic Pallet | 288 × 102 × 128.5 in (732 × 260 × 326 cm) |
| Shipping Export Crate | 288 × 105 × 130.5 in (732 × 267 × 331 cm) |
| Machine Weight | 30,100 lb (13,654 kg) |
| Shipping Domestic Pallet with Ec Option | 288 × 102 × 135 in (732 × 260 × 343 cm) |
| Shipping Export Crate with Ec Option | 288 × 105 × 139 in (732 × 267 × 354 cm) |
| Machine Weight with Ec Option | 30,100 lb (13,654 kg) |
| Shipping Domestic Pallet with 50 plus 1 SMTC | 288 × 102 × 133 in (732 × 260 × 338 cm) |
| Shipping Export Crate with 50 plus 1 SMTC | 288 × 105 × 136 in (732 × 267 × 344 cm) |
| Machine Weight with 50 plus 1 SMTC | 30,100 lb (13,654 kg) |
| Shipping Domestic Pallet with Ec Option 50 plus 1 SMTC | 288 × 102 × 143 in (732 × 260 × 364 cm) |
| Shipping Export Crate with Ec Option 50 plus 1 SMTC | 288 × 105 × 143 in (732 × 267 × 364 cm) |
| Machine Weight with Ec Option 50 plus 1 SMTC | 30,100 lb (13,654 kg) |
Specifications sourced from haascnc.com — verified 2026-10-02
Strengths & Limitations
Strengths
- 120 in (3,048 mm) of X travel on a 120 × 28 in (3,048 × 711 mm) table for long parts or rows of fixtures
- 24 cross slots in Y plus 5 slots in X on 4.92 in (125 mm) centres give locating points along the whole table
- 12,000 rpm, 30 hp (22.4 kW) inline direct-drive spindle with a choice of CT40, BT40 or HSK-A63 taper
- Y and Z rapids of 600 ipm (15.2 m/min)
- Lightest of the long-bed group at 30,100 lb (13,654 kg) shipped; the VM-11 is 33,400 lb (15,150 kg) and the VM-12 36,300 lb (16,466 kg)
Limitations
- X rapids and cutting feed are both capped at 360 ipm (9.1 m/min), so long traverses are slow
- Only 32 in (813 mm) of Y; the VM-11 offers 40 in (1,016 mm) over the same 120 × 28 in table
- A 4,000 lb (1,814 kg) table load spread over a 120 in table rules out heavy steel blocks
- Peak torque is 90 ft-lbf (122 N·m) at 2,000 rpm; the VM-10/50 has 350 ft-lbf (475 N·m) at 900 rpm for heavier cutters
Best For
Frequently Asked Questions
01
X rapids are 360 ipm (9.1 m/min), which is also the maximum cutting feedrate. Y and Z rapid at 600 ipm (15.2 m/min). On a 120 in (3,048 mm) axis that makes travel between the ends of the table the slowest part of a program, so it helps to finish every operation at one station before moving to the next.
02
Both have 120 in (3,048 mm) of X, 30 in (762 mm) of Z, a 120 × 28 in (3,048 × 711 mm) table and a 30 hp (22.4 kW), 12,000 rpm spindle. The VM-11 has 40 in (1,016 mm) of Y travel against 32 in (813 mm) on the VM-10, and it is heavier: 33,400 lb (15,150 kg) against 30,100 lb (13,654 kg). If your parts fit within 32 in of Y, the VM-10 does the same work.
03
X travel and table length are both 120 in (3,048 mm). Table width is 28 in (711 mm), Y travel is 32 in (813 mm), and the spindle nose can be set from 4 in (102 mm) to 34 in (864 mm) above the table. Total weight on the table must stay within 4,000 lb (1,814 kg). For longer work, the VM-12 has 150 in (3,810 mm) of X on a 150 × 28 in (3,810 × 711 mm) table.
04
30+1 tools in a side-mount changer. Each can be up to 16 in (406 mm) long and 12 lb (5.4 kg), and 2.5 in (64 mm) in diameter with all pockets occupied or 5 in (127 mm) with adjacent pockets empty. Haas's shipping table also has rows for a 50+1 side-mount changer, which is an optional configuration.
05
Power is 220 VAC three-phase at 70 A or 440 VAC three-phase at 35 A. Compressed air is 4 scfm at 100 psi (113 L/min at 6.9 bar), never below 80 psi (5.5 bar). For rigging, Haas lists a shipping weight of 30,100 lb (13,654 kg) and a domestic pallet of 288 × 102 × 128.5 in (732 × 260 × 326 cm); those are shipping figures, not floor space.
