Haas Automation 5-Axis Machining Centers

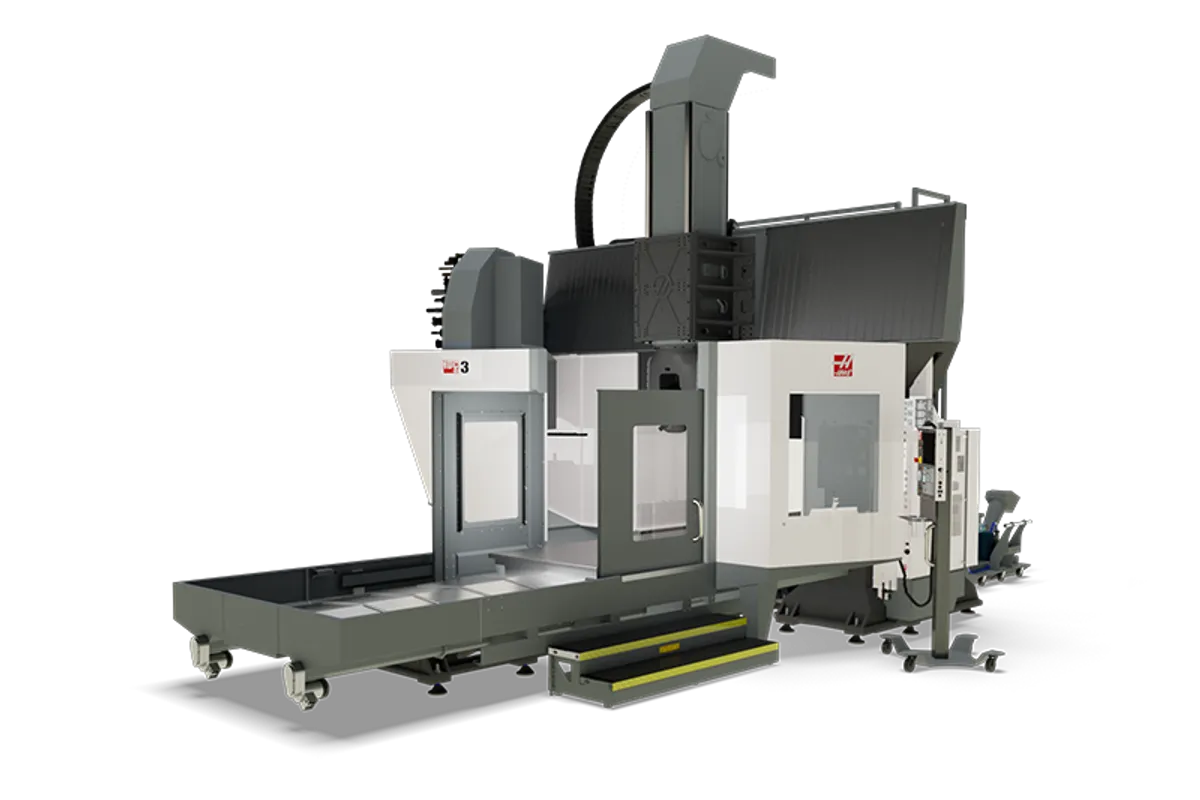

Haas HDC-3-5AX

$551,995 - $650,000 Updated 2026-03-12

Key Specifications

X Travel

3,810 mm (150 in)

Y Travel

2,692 mm (106 in)

Z Travel

1,092 mm (43 in)

Max Spindle

6,000 RPM

Spindle Taper

HSK-A100

Tool Capacity

50+1 SMTC

Overview

The Haas HDC-3-5AX is the most capable machine in the Haas lineup: a double-column 5-axis machining center with a gimbal head, 3,810 x 2,692 x 1,092 mm (150 x 106 x 43 in) of travel, and a 44.7 kW (60 hp) HSK-A100 integral spindle. This machine combines the structural rigidity of the HDC double-column platform with full simultaneous 5-axis capability for the largest, most demanding workpieces.

The 6,000 RPM integral spindle produces 149 Nm (110 ft-lbf) of torque at 3,000 RPM. Unlike the other Haas 5-axis gantry machines that use HSK-63F or HSK-A63 spindles tuned for composites and aluminum, the HDC-3-5AX uses HSK-A100 tooling, which is the heavy-duty 5-axis interface for steel and titanium cutting. The 60 HP rating gives this machine enough power for aggressive material removal in aerospace alloys while maintaining 5-axis orientation.

The B-axis tilts plus/minus 120 degrees with 1,279 Nm of continuous torque and 1,680 Nm of brake torque through a 59:1 gear ratio. The C-axis rotates plus/minus 245 degrees with 1,220 Nm of continuous torque and 2,712 Nm of brake torque through a 105.83:1 ratio. These torque values are the highest of any Haas 5-axis machine and reflect the heavy cutting loads this machine is designed to handle.

The table measures 3,886 x 1,245 mm (153 x 49 in) with a 4,536 kg (10,000 lb) load capacity and 73.5-inch clearance between columns. The 50+1 SMTC accommodates tools up to 13.6 kg and 406 mm in length. Rapids run at 9.1 m/min on X, 10.2 m/min on Y, and 15.2 m/min on Z. The machine requires 220 VAC 3-phase at 105 amps. Base price starts at $551,995, which puts full simultaneous 5-axis double-column capability within reach of shops that would otherwise need to spend well over $1 million with European or Japanese builders. Specs sourced from Haas Automation published data.

Full Specifications

Parameter	Value
X-Axis Travel	3,810 mm (150 in)
Y-Axis Travel	2,692 mm (106 in)
Z-Axis Travel	1,092 mm (43 in)
Max Spindle Speed	6,000 RPM
Spindle Taper	HSK-A100
Spindle Motor Power	60.0 hp
Spindle Torque Max	149 Nm (110 ft-lbf) @ 3,000 RPM
Spindle Drive	Integral Spindle/Motor
Spindle Cooling	Liquid Cooled
B Axis Tilt	S.A.E
B Axis Speed	68 °/sec
B Axis Torque Continuous	1,279 Nm (944 ft-lbf)
B Axis Brake Torque	1,680 Nm (1,239 ft-lbf)
B Axis Gear Ratio	59:1
C Axis Rotation	S.A.E
C Axis Speed	170 °/sec
C Axis Torque Continuous	1,220 Nm (900 ft-lbf)
C Axis Brake Torque	2,712 Nm (2,000 ft-lbf)
C Axis Gear Ratio	105.83:1
Tool Capacity	50+1 SMTC
Max Tool Diameter	4.0 in
Max Tool Diameter Large	10.0 in
Max Tool Length	16.00 in
Max Tool Weight	30.0 lb
Table Size	3,886 x 1,245 mm (153 x 49 in)
Table Load Max	4,536 kg (10,000 lb)
Between Columns	73.5 in
Bridge Clearance	51 in
Rapid Traverse X	9.1 m/min (360 ipm)
Rapid Traverse Y	10.2 m/min (400 ipm)
Rapid Traverse Z	15.2 m/min (600 ipm)
Machine Weight	Approx. 53,740 lb combined
CNC Control	Haas Next Generation Control (NGC)
Coolant Capacity	95 gal
Air Required	4 scfm @ 100 psi
Electrical Low	220 VAC 3-phase, 105 A
Electrical High	440 VAC 3-phase, 53 A
Travels	S.A.E
X Axis	150.00 in
Y Axis	106.00 in
Z Axis	43.00 in
Spindle	S.A.E
Max Rating	60.0 hp
Max Speed	170 °/sec
Max Torque	110.0 ft-lbf @ 3000 rpm
Drive System	Integral Spindle/Motor
Taper	HSK-A100
Bearing Lubrication	Grease Packed
Cooling	Liquid Cooled
Travel	245 ° to 245- °
Torque	900 ft-lbf
Brake Torque	2000 ft-lbf
Gear Ratio	105.83:1
Timing	1:1
Table	S.A.E
Length	153.0 in
Width	49.0 in
Max Weight On Table	10000 lb
Feedrates	S.A.E
Rapids On X	360 ipm
Rapids On Y	400 ipm
Rapids On Z	600 ipm
Tool Changer	S.A.E
Type	SMTC
Capacity	50+1
General	S.A.E
Air Requirements	S.A.E
Inline Air Hose	3/8 in
Coupler	3/8 in
Air Pressure Min	80 psi
Electrical Specification	S.A.E
Input Ac Voltage Low	220 VAC
Full Load Amps Low	105 A
Input Ac Voltage High	440 VAC
Full Load Amps High	53 A
Dimensions Shipping	S.A.E
Domestic Pallet For Sheet Metal Crate	96 in x 72 in x 60 in
Weight For Sheet Metal Crate	2280 lb
Domestic Pallet Column Assembly	150 in x 102 in x 87 in
Domestic Pallet Table Assembly	376 in x 91 in x 66 in
Weight Column Assembly Domestic	7,260 lb
Weight Table Assembly Export	20,860 lb
Domestic Pallet Bridge Assembly	240.0 in 120.0 in 133.0 in
Weight Bridge Assembly Domestic	23,280 lb
Domestic Pallet For Sheet Metal Crate 2	96.0 in 72.0 in 92.0 in
Weight For Sheet Metal Crate 2 Domestic	2,340 lb

Specifications sourced from haascnc.com — verified 2026-03-28

Strengths & Limitations

Strengths

Double-column construction with gimbal head provides the most rigid 5-axis platform in the Haas lineup
HSK-A100 tooling and 60 HP spindle are built for steel and titanium 5-axis work, not just composites and aluminum
B-axis torque of 1,279 Nm and C-axis brake torque of 2,712 Nm are the highest rotary axis specs in any Haas machine
150 x 106 inch travel covers the largest aerospace structural components, mold bases, and weldments
Base price near $552K undercuts comparable 5-axis double-column machines from European builders by hundreds of thousands
10,000 lb table load handles the heaviest workpieces including large titanium billets and steel castings

Limitations

6,000 RPM max spindle speed limits high-speed finishing with small tools; shops needing higher RPM should consider the VS-3-5AX
105-amp electrical requirement at 220V may require shop electrical service upgrades
Multi-crate shipping (column, table, bridge, and sheet metal) requires extensive installation planning
9.1 m/min X-axis and 10.2 m/min Y-axis rapids are slow, adding significant traverse time on large parts
Limited installed base and few online user experience reports compared to UMC-series 5-axis machines

Best For

Aerospace structural machining requiring simultaneous 5-axis on large titanium, Inconel, and aluminum components Large mold and die work requiring 5-axis access on parts over 2 meters long Defense applications involving oversized components that require 5-axis orientation in tough alloys Energy sector parts including turbine blades, impellers, and large structural castings Shops that need heavy-duty 5-axis capability on parts too large for trunnion-table UMC machines

Frequently Asked Questions

01 What is the difference between the HDC-3 and HDC-3-5AX?

The HDC-3 is a 3-axis machine with a 7,500 RPM 50-taper gearbox spindle priced above $1.1 million. The HDC-3-5AX adds B and C gimbal-head axes with a 6,000 RPM HSK-A100 integral spindle at roughly half the price. The HDC-3 is for heavy 3-axis work; the HDC-3-5AX is for 5-axis profiling and contouring with the same double-column rigidity.

02 Can the HDC-3-5AX cut steel and titanium?

Yes. Unlike the other Haas gimbal-head machines that use HSK-63F spindles tuned for composites, the HDC-3-5AX uses HSK-A100 tooling with 60 HP and 149 Nm of torque. This combination handles 5-axis cutting in steel, stainless, titanium, and Inconel.

03 What does a new Haas HDC-3-5AX cost?

Base price starts at around $551,995. With options like through-spindle coolant, probing, and production software, expect $600,000 to $650,000 for a fully configured machine.

04 Why is the HDC-3-5AX cheaper than the HDC-3?

The HDC-3 at $1.1M uses a 50-taper gearbox spindle with higher torque for maximum 3-axis material removal. The HDC-3-5AX at $552K uses an integral HSK-A100 spindle with lower torque but adds two rotary axes. The pricing reflects different engineering and market positioning rather than capability ranking.

05 What floor space does the HDC-3-5AX require?

The machine ships in multiple crates: column assembly at 381 x 259 x 221 cm, table assembly at 955 x 231 x 168 cm, and bridge assembly at 610 x 305 x 338 cm. Plan for a minimum clear area of 12 x 6 meters for the machine plus operator access and chip management.
