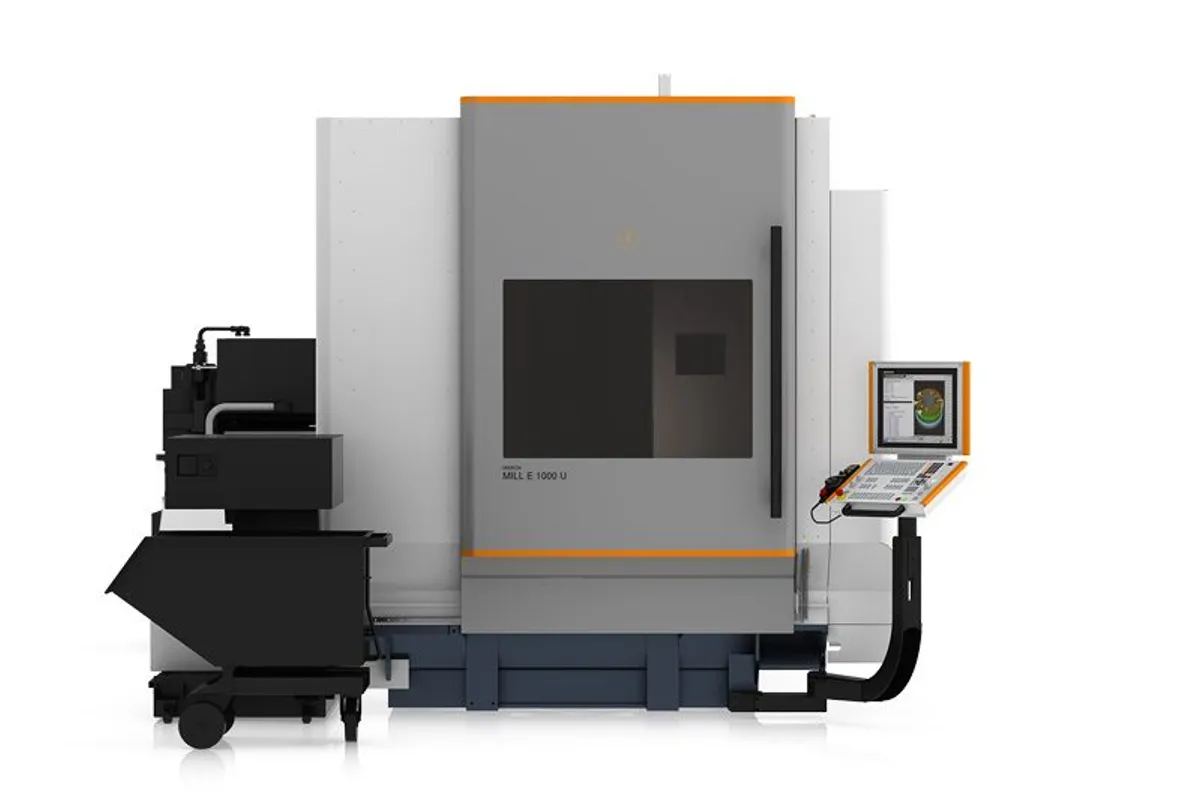

GF Machining Mikron MILL E 1900 U
Updated 2026-03-19
01
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
02
Overview
The flagship Mikron MILL E 1900 U with 1,880 x 1,400 x 930 mm. Trunnion: 4,000 kg. Spindle: 15,000/24,000 A63 or 10,000 A100. Feed: 15/41 (fastest). Magazine to 336. ST variant: 4,000/2,400 kg. Pricing: $550,000-$850,000.
03
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 1,880 mm (74.0 in) |
| Y-Axis Travel | 1,400 mm (55.1 in) |
| Z-Axis Travel | 930 mm (36.6 in) |
| Table Load Capacity | 4000 kg milling / 2400 kg turning |
| A Axis Swivel Range | +16 deg / -120 deg (HSK-A63) or +16 deg / -110 deg (HSK-A100) |
| C Axis Rotation | n x 360 deg (continuous) |
| Max Spindle Speed | 15,000 / 24,000 RPM (HSK-A63) or 10,000 RPM (HSK-A100) |
| Spindle Taper | HSK-A63 or HSK-A100 |
| Tool Capacity | HSK-T100: 30 / Tower 90 / 130 / 175 pockets |
| Feed Rate | 15 m/min (41 m/min S6 option) |
| CNC Control | Heidenhain TNC 7 / Siemens SINUMERIK ONE |
| Travel X Y Z | 1880 x 1400 x 930 mm |
| Feed Rate X Y Z | 15 / 41 (S6) m/min |
| Swivelling Range | +20 (HSK-T100)-110° (HSK-T100) |
| Rotary Range | n x 360° |
| Feed Rate Swivel | 11 (S6) rpm20 (S6) rpm |
| Feed Rate Rotary | 30 rpm Simultaneous Turning300 rpm Simultaneous Turning |
| Working Table | T-slot table radial Ø1500 mm for Simultaneous Turning |
| Working Spindle | 12'000 rpm - HSK-T100 |
| Automation | On request |
Specifications sourced from gfms.com — verified 2026-03-28
04
Strengths & Limitations
Strengths
- Largest MILL E U envelope
- 4,000 kg exceptional
- HSK-A100 heavy-duty
- 41 m/min fastest
- 336-pocket magazine
- ST variant: 4,000/2,400 kg
Limitations
- Substantial foundation
- $550K-$850K major investment
- +16 deg limits access
- 6-12 month lead times
05
Best For
06
Frequently Asked Questions
01
4,000 vs 1,000 kg. Y: 1,400 vs 900. Z: 930 vs 600. TNC 7, A100, 336 tools.
02
Trunnion: full 5-axis compact. Gantry: larger, mostly 3-axis.
03
12,000 HSK-T100. 4,000/2,400 kg.
04
Yes with A100. 4,000 kg table for stability.
