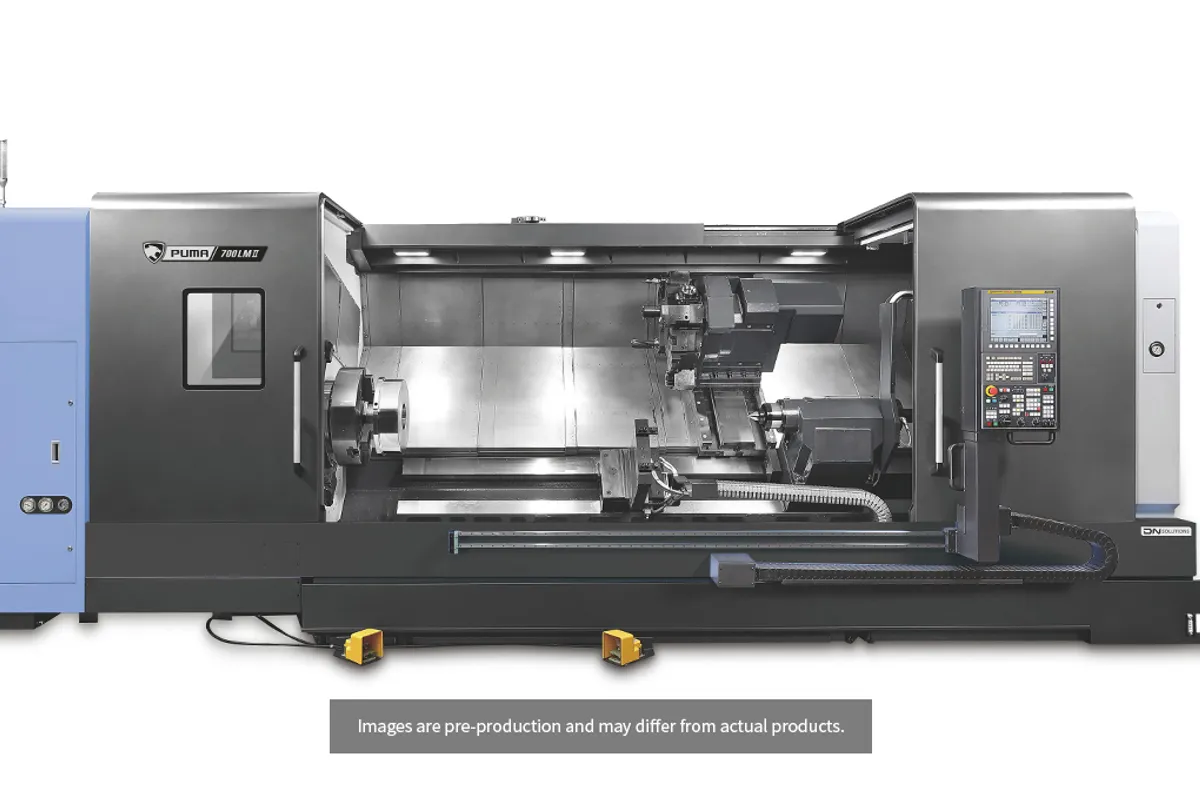

DN Solutions PUMA 800 LM II

$480,000 - $630,000 Updated 2026-03-19

Key Specifications

Spindle Power

55 kW (74 hp)

Max Turn Length

3200 mm

chuck size

32 inch

max turning diameter

900 mm

x axis travel

470 mm (19 in)

z axis travel

3,235 mm (127 in)

Overview

The DN Solutions PUMA 800 LM II is the 32-inch chuck version of the long-bed 700/800 platform. It shares the same heavy-duty frame, spindle, and Y-axis capability as the PUMA 700 LM II, but swaps the 24-inch chuck for a massive 32-inch (813 mm) chuck — the kind of workholding you need for truly oversized castings, large pipe flanges, and heavy forgings that exceed the grip of a 24-inch.

The trade-off for the bigger chuck is spindle speed: the 800 LM II tops out at 750 RPM versus 1,500 RPM on the 700. But with 8,076 Nm (5,957 ft-lb) of torque from the 55 kW (74 hp) spindle, it's still making chips at serious surface speeds on large-diameter work. At 800 mm diameter and 750 RPM, you're running nearly 1,900 SFM — within the sweet spot for carbide turning in steel.

The 375 mm (14.8 in) through-bore matches the 700 series, allowing large-diameter tubular stock to pass through the spindle. Z-axis travel is 3,235 mm (127 in) with 3,200 mm of max turning length. X-axis provides 470 mm (19 in) of cross travel, and the Y-axis adds 200 mm (8 in) for off-center milling operations with the 3,000 RPM live tooling.

Rapids are 12 m/min on X and 10 m/min on Z. At 22,000 kg (48,502 lb), the machine matches the 700 LM II in weight, sitting on the same bed casting and frame. Box-way construction handles the severe cutting forces that come with taking aggressive passes on 35-inch diameter stock.

The FANUC 0i-TF Plus control is standard. For shops that process large pipe, heavy castings, and oversized forgings requiring 32-inch chuck clamping, the PUMA 800 LM II is purpose-built. It's a niche machine for niche applications, but in that niche, it's hard to beat. Specs sourced from DN Solutions published data.

Full Specifications

Parameter	Value
Chuck Size	32 inch
Max Turning Diameter	900 mm
Max Turning Length	3200 mm
X Axis Travel	470 mm (19 in)
Z Axis Travel	3,235 mm (127 in)
Y Axis Travel	200 mm (8 in)
X Axis Rapid Traverse	12 m/min (472 ipm)
Z Axis Rapid Traverse	10 m/min (394 ipm)
Max Spindle Speed	750 RPM
Spindle Motor Power	55 kW (74 hp)
Spindle Torque	8,076 Nm (5,957 ft-lb)
Spindle Bore	375 mm (14.8 in)
Turret Stations	12-station turret
Rotary Tool Speed	3,000 RPM
Machine Length	7,354 mm (290 in)
Machine Height	2,590 mm (102 in)
Machine Width	2,714 mm (107 in)
Machine Weight	22,000 kg (48,502 lb)
CNC Control	FANUC 0i-TF Plus
Metric	IMPERIAL
Capacity	Chuck sizeMax. Turning DiameterMax. Turning Length
Travels	X-Axis Rapid TraverseZ-Axis Rapid TraverseX-Axis Travel DistanceZ-Axis Travel Distance
Main Spindle	Max. Spindle SpeedMax. Spindle PowerMax. Spindle Torque
Turret	No. of tool stationRotary Tool r/min
No Of Tool Station	Rotary Tool r/min
Dimensions	LengthHeightWidthWeight
Favorites	PUMA 800XLM II
12 Ea	3000 RPM

Specifications sourced from dn-solutions.com — verified 2026-03-28

Strengths & Limitations

Strengths

32-inch chuck provides maximum clamping force for the largest, heaviest workpieces in the PUMA lineup
8,076 Nm of torque at 55 kW handles the most aggressive cuts in any material
375 mm through-bore passes oversized tubular stock and hollow workpieces
Y-axis with 200 mm travel adds mill-turn capability on parts too large to move
3,200 mm max turning length covers long shafts and rollers at 35-inch swing
Same proven 22,000 kg platform as the PUMA 700 LM II with the larger chuck option

Limitations

750 RPM max spindle speed is the lowest in the PUMA lineup — surface speed is limited on smaller diameters
32-inch chuck and associated jaw sets are expensive to purchase and maintain
22,000 kg weight demands heavy industrial-grade foundations
7.35 meter machine length requires substantial dedicated floor space
Very specialized machine — the 750 RPM limit makes it impractical for general-purpose turning

Best For

Large pipe and flange manufacturers clamping workpieces that exceed 24-inch chuck capacity Heavy forging and casting shops finishing the largest cylindrical components Oil and gas equipment manufacturers producing oversized wellhead components and BOP assemblies Power generation shops machining large generator housings, turbine casings, and end bells Nuclear and defense contractors working with large-diameter pressure vessel components Shipbuilding and marine shops producing large propulsion and structural components

Frequently Asked Questions

01 Why does the PUMA 800 have a lower spindle speed than the 700?

The 800's 32-inch chuck is significantly larger and heavier than the 700's 24-inch chuck. The lower 750 RPM limit protects the bearings and maintains safe centrifugal force limits on the larger, heavier chuck assembly. At the large diameters this machine handles, 750 RPM still provides excellent surface speed.

02 Can I use the PUMA 800 LM II for pipe machining?

Absolutely. The 32-inch chuck, 375 mm bore, long bed, and high torque make it well-suited for pipe facing, threading, and OD/ID machining. It's a common choice for large-diameter pipe fabrication, coupling machining, and end prep operations in oil and gas manufacturing.

03 What's the difference between the 800 LM II and the 800 M II?

The LM II has the long bed with 3,235 mm Z-axis travel versus 1,650 mm on the M II. All other specs are identical: same spindle, chuck, Y-axis, and live tooling. Choose the LM II for parts longer than about 1.5 meters; the M II saves floor space for shorter chucking work.

04 How heavy can my workpiece be?

Maximum workpiece weight depends on the specific mounting configuration (chuck only vs. chuck and tailstock). Contact DN Solutions for rated weight capacity. At this machine class, most workpieces are loaded by overhead crane, and the machine's 22,000 kg mass easily supports heavy workpieces without stability concerns.
