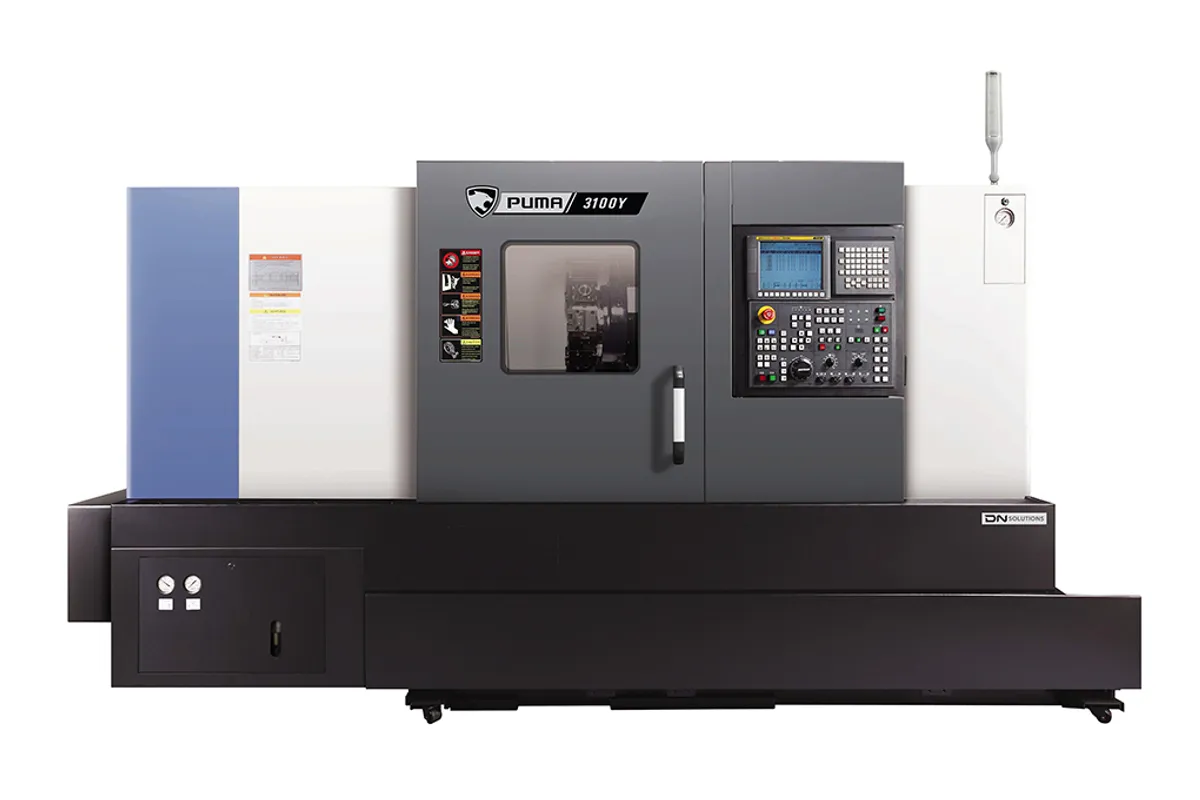

DN Solutions PUMA 3100 Y

$150,000 - $195,000 Updated 2026-03-19

Key Specifications

Spindle Power

26 kW (35 hp)

Max Turn Length

765 mm

chuck size

12 inch

max turning diameter

420 mm

x axis travel

260 mm (10 in)

y axis travel

105 mm (4.1 in)

Overview

The DN Solutions PUMA 3100 Y is the standard-bed Y-axis variant in the 3100 turning center platform. It adds a programmable Y-axis to the proven 3100 mill-turn package, unlocking off-center milling operations that C-axis interpolation alone can't handle cleanly. If you've been running a GT 3100 M and sending parts to a VMC for off-center holes, flats, or keyways, this machine eliminates that second operation.

The main spindle delivers 26 kW (35 hp) with 1,123 Nm (828 ft-lb) of torque at up to 2,800 RPM through a 12-inch (305 mm) chuck. Max turning diameter is 376 mm (15 in) with 725 mm (29 in) of turning length on the standard bed. These numbers match the GT 3100 M exactly — the Y designation adds the Y-axis without changing the base turning capability.

The Y-axis provides +/-52.5 mm (105 mm total, 4.1 in) of off-center travel with dedicated servo control. Combined with the 12-station turret running live tools at 5,000 RPM and full C-axis positioning, you can mill flats, drill off-center holes, cut keyways, and machine hex features — operations that would otherwise require pulling the part and fixturing it on a mill.

Z-axis travel is 830 mm (33 in) and X runs 260 mm (10 in), with rapids at 24 m/min on X, 30 m/min on Z, and 10 m/min on Y. At 6,050 kg (13,338 lb), the machine carries a bit more mass than the non-Y variant due to the additional Y-axis slide mechanism. The footprint is 3,865 mm (152 in) long by 2,102 mm (83 in) wide.

The FANUC 0i-TF Plus control handles the 4-axis programming (X, Z, C, Y) with standard G-code Y-axis commands. For shops doing production runs of parts that need both turning and off-center milling features, the PUMA 3100 Y consolidates two machines into one setup — and that's where the ROI lives.

Full Specifications

Parameter	Value
Chuck Size	12 inch
Max Turning Diameter	420 mm
Max Turning Length	765 mm
X Axis Travel	260 mm (10 in)
Y Axis Travel	105 mm (4.1 in)
Z Axis Travel	830 mm (33 in)
X Axis Rapid Traverse	24 m/min (945 ipm)
Y Axis Rapid Traverse	10 m/min (394 ipm)
Z Axis Rapid Traverse	30 m/min (1,181 ipm)
Max Spindle Speed	Max. Spindle Power
Spindle Motor Power	26 kW (35 hp)
Spindle Torque	1,123 Nm (828 ft-lb)
Turret Stations	12-station turret
Rotary Tool Speed	5,000 RPM
Machine Weight	6,050 kg (13,338 lb)
Machine Length	3,865 mm (152 in)
Machine Height	1,915 mm (75 in)
Machine Width	2,102 mm (83 in)
CNC Control	FANUC 0i-TF Plus
Metric	IMPERIAL
Capacity	Chuck sizeMax. Turning DiameterMax. Turning Length
Travels	X-Axis Rapid TraverseZ-Axis Rapid TraverseX-Axis Travel DistanceY-Axis Travel DistanceZ-Axis Travel Distance
Main Spindle	Max. Spindle SpeedMax. Spindle PowerMax. Spindle Torque
Sub Spindle	Max. Spindle SpeedMax. Spindle Power
Turret	No. of tool stationRotary Tool r/min
No Of Tool Station	Rotary Tool r/min
Dimensions	LengthHeightWidthWeight
Favorites	PUMA 3100LSY
6000 R Min	15 kW
6000 Rpm	20 hp
12 Ea	5000 RPM
4500 R Min	7.5 kW
4500 Rpm	10 hp
4000 R Min	30 N·m
4000 Rpm	22 ft-lb

Specifications sourced from dn-solutions.com — verified 2026-03-28

Strengths & Limitations

Strengths

Y-axis eliminates secondary VMC setups for off-center drilling, flats, and keyway milling
1,123 Nm of spindle torque handles aggressive roughing in alloy steels and stainless
12-inch chuck provides solid clamping for parts up to 376 mm diameter
Live tooling at 5,000 RPM combined with Y and C axes creates a true mill-turn center
Standard-bed footprint keeps the machine compact at 3,865 mm long
FANUC 0i-TF Plus control with proven Y-axis programming support

Limitations

2,800 RPM spindle speed limits surface speed on small-diameter aluminum finishing
725 mm max turning length constrains longer shaft work — choose the XLY or ULY for extended parts
Y-axis adds $15,000-$25,000 over the non-Y GT 3100 M variant
105 mm total Y-axis travel limits the offset distance for milling operations

Best For

Shops producing turned parts with off-center holes, flats, keyways, or hex features that currently require a second VMC operation Production environments running flanges, couplings, and fittings with both turning and milling features Facilities that have outgrown 2600-class lathes and need Y-axis mill-turn on medium-to-large parts Automotive and hydraulic component manufacturers with complex turned-and-milled parts Job shops looking to consolidate turning and milling into a single setup for faster throughput

Frequently Asked Questions

01 What does the Y designation mean on the PUMA 3100 Y?

The Y means this machine has a programmable Y-axis that moves the turret off-center from the spindle axis. This allows true off-center milling, drilling, and tapping operations that C-axis interpolation alone can't perform accurately. It turns the lathe into a full mill-turn center.

02 How does the PUMA 3100 Y compare to the GT 3100 M?

The spindle, chuck, bed, and turning specs are identical. The Y adds a 105 mm Y-axis for off-center milling operations. If your parts only need C-axis milling (on-center holes and features), the M saves money. If you need off-center features, the Y eliminates secondary setups.

03 What does a PUMA 3100 Y cost?

New machines run $150,000-$195,000 depending on options. The Y-axis adds a premium of roughly $15,000-$25,000 over the GT 3100 M. The payback comes from eliminating secondary VMC operations on parts with off-center features.

04 Can I program the Y-axis with standard G-code?

Yes. The FANUC 0i-TF Plus control supports standard G-code Y-axis commands. Most CAM systems (Mastercam, ESPRIT, GibbsCAM) support Y-axis lathe programming with dedicated post processors for DN Solutions PUMA machines.
