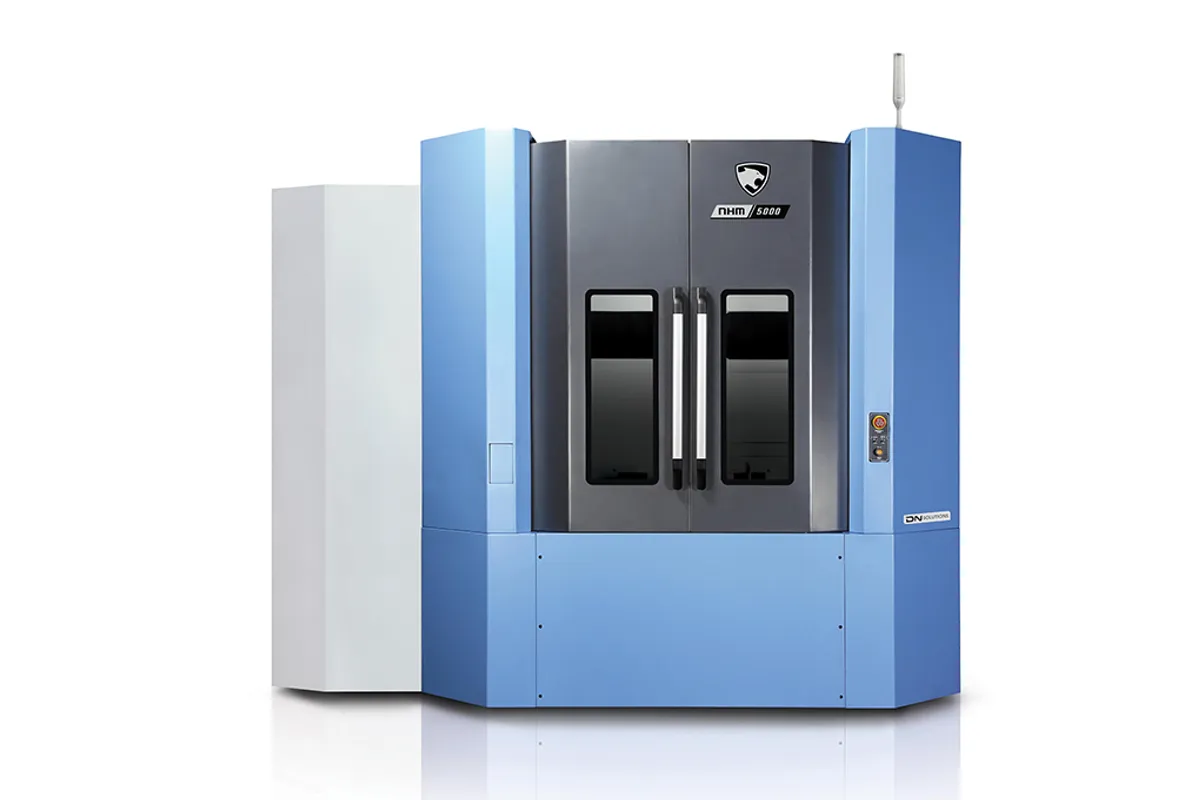

DN Solutions NHM 5000

$350,000 - $520,000 Updated 2026-03-19

Key Specifications

Max Spindle

6,000 RPM (8,000 RPM optional)

Spindle Taper

ISO 50 (BT50)

Rapid Traverse

30 m/min (1,181 in/min)

Spindle Power

25/15 kW (34/20 hp)

x axis travel

800 mm (31 in)

y axis travel

700 mm (28 in)

Overview

The DN Solutions NHM 5000 is a heavy-duty 500mm-pallet horizontal machining center built around an ISO 50 taper spindle with 1,034 Nm of torque. That's nearly three times the torque of 40-taper machines in the same pallet class, and it's the defining feature that separates the NHM from lighter horizontals like the HC 500 II.

Axis travels span 800 x 700 x 850 mm (31 x 28 x 33 in) with a 6,000 RPM spindle pushing 25 kW (34 hp). The 8,000 RPM optional spindle extends capability for shops that mix heavy cast iron work with faster aluminum production. The 60-tool magazine provides enough capacity for complex multi-operation cycles, and 30 m/min rapids keep non-cutting time in check.

The 500 x 500 mm pallet supports workpieces up to 800 kg (1,764 lb), which is 300 kg more than the HC 500 II. Combined with the 50-taper spindle, the NHM 5000 targets heavier parts that need more torque — think medium-size cast iron housings, large hydraulic manifolds, and structural components.

At 18,500 kg (40,786 lb), the NHM 5000 has 6,000 kg more mass than the HC 500 II, translating directly to better vibration damping during heavy interrupted cuts. If you've outgrown a 40-taper horizontal or need the torque for larger-diameter cutters in steel and cast iron, the NHM 5000 is the 500mm-class machine with the muscle to match.

Full Specifications

Parameter	Value
X Axis Travel	800 mm (31 in)
Y Axis Travel	700 mm (28 in)
Z Axis Travel	850 mm (33 in)
Max Spindle Speed	6,000 RPM (8,000 RPM optional)
Spindle Motor Power	25/15 kW (34/20 hp)
Spindle Torque	1,034 Nm (763 ft-lb)
Spindle Taper	ISO 50 (BT50)
Pallet Size	Maximum Workpiece weight
Table Load Capacity	800 kg (1,764 lb)
Tool Magazine Capacity	60 tools
Rapid Traverse Rate	30 m/min (1,181 in/min)
Machine Weight	18,500 kg (40,786 lb)
Max Spindle Speed	6000 r/min
X Axis Travel Distance	800 mm
Y Axis Travel Distance	700 mm
Metric	IMPERIAL
Travels	X-Axis Travel DistanceY-Axis Travel DistanceZ-Axis Travel Distance
Feed Rates	X-Axis Rapid TraverseY-Axis Rapid TraverseZ-Axis Rapid Traverse
Main Spindle	Max. Spindle SpeedMax. Spindle PowerMax. Spindle TorqueTool Taper
Table	Pallet SizeMaximum Workpiece weight
Tool Storage Capacity	No. of tool station
Dimensions	LengthHeightWidthWeight
Favorites	NHM 8000
500x500 Mm	800 kg
20x20 Inch	1764 lb
630 Mm	1200 kg
25 Inch	2646 lb
800 Mm	2000 kg
31 Inch	4409 lb

Specifications sourced from dn-solutions.com — verified 2026-03-28

Strengths & Limitations

Strengths

1,034 Nm spindle torque through ISO 50 handles heavy roughing that 40-taper horizontals struggle with
800 kg pallet capacity provides 60% more load rating than the HC 500 II in the same pallet class
18,500 kg machine weight delivers superior vibration damping for heavy interrupted cuts in cast iron
60-tool magazine enables complex multi-operation cycles without manual tool intervention
850 mm Z-travel provides generous depth for reaching behind tombstone faces
30 m/min rapids outpace the HM-series machines while maintaining heavy-cut capability

Limitations

6,000 RPM base spindle speed limits high-speed aluminum work without the 8,000 RPM option
ISO 50 tooling costs more than ISO 40, and the holders are heavier to handle
18.5-ton weight requires more foundation preparation than 40-taper horizontals
Higher entry price than the HC 500 II for shops that don't need the extra torque

Best For

Production shops machining medium-size cast iron housings, pump bodies, and valve blocks Hydraulic component manufacturers running manifold blocks and directional valve bodies Automotive tier suppliers needing 50-taper torque for cast iron powertrain components Job shops specializing in heavy-material production work that's outgrown 40-taper machines Shops running mixed materials that benefit from the optional 8,000 RPM spindle versatility

Frequently Asked Questions

01 What does a DN Solutions NHM 5000 cost?

New NHM 5000 machines sell for $350,000 to $520,000 depending on spindle speed option, pallet configuration, and automation. That's a step up from the HC 500 II, reflecting the 50-taper spindle and heavier construction.

02 How does the NHM 5000 compare to the NHM 8000?

The NHM 8000 jumps to an 800mm pallet with 1,400 mm X-travel, 1,732 Nm torque, and a 2,000 kg pallet capacity. It's a much larger, heavier machine (27,000 kg). Choose the NHM 5000 for medium-size parts; the NHM 8000 for parts too big for a 500mm pallet.

03 Should I choose the NHM 5000 or the HC 500 II?

Choose the NHM 5000 when you need 50-taper torque, the 800 kg pallet capacity, or the extra mass for heavy-cut stability. The HC 500 II saves money and offers faster spindle speed options for lighter materials. The NHM 5000 is the heavy-material machine; the HC 500 II is the versatile one.

04 Does the NHM 5000 support automation?

Yes. DN Solutions offers dual-pallet APCs and multi-pallet pool systems for the NHM 5000. The 60-tool magazine and horizontal chip evacuation make it well-suited for extended unattended production runs.
