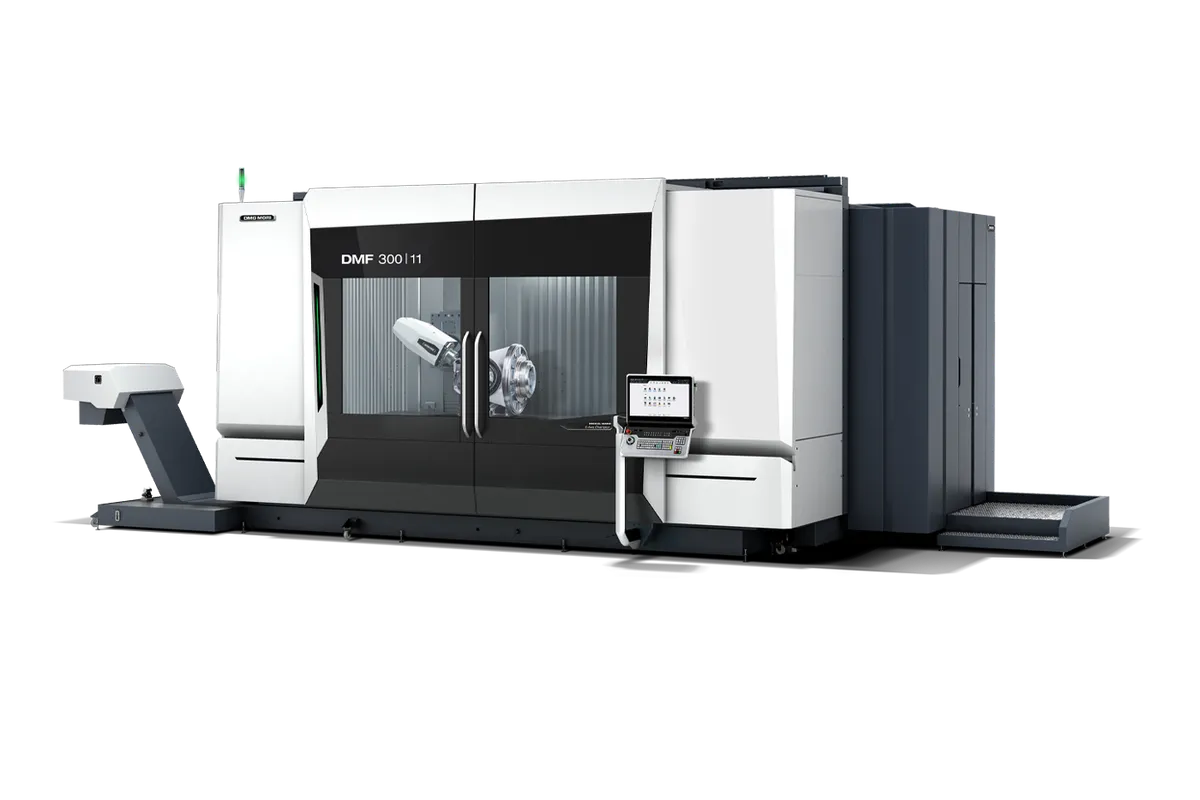

DMG Mori DMF 300|11 FD

$900,000 - $1,350,000 Updated 2026-03-19

Key Specifications

X Travel

3,000 mm (118.1 in)

Y Travel

1,100 mm (43.3 in)

Z Travel

1,050 mm (41.3 in)

Max Spindle

12,000 - 20,000 RPM

Spindle Taper

SK40/HSK-A63, SK50/HSK-A100

Tool Capacity

Up to 120 pockets

Overview

The DMG Mori DMF 300|11 FD is the mill-turn variant of the DMF 300|11 traveling-column machining center, combining 3,000 mm (118.1 in) of X-axis travel with 1,100 mm (43.3 in) on both Y and Z axes and an integrated DirectDrive rotary table for turning operations. This machine is purpose-built for the largest production parts that require both 5-axis milling and turning in a single setup — aerospace wing spars with turned bushings, large turbine casings with milled ports and turned flanges, and energy sector components that span over three meters.

The traveling-column design moves the spindle head along the 3-meter X-axis while the workpiece sits stationary on the table, maintaining the full 6,000 kg (13,228 lb) table load capacity at any X-position. Maximum workpiece dimensions are 3,600 mm (141.7 in) long, 1,100 mm (43.3 in) wide, 1,100 mm (43.3 in) tall, and 1,400 mm (55.1 in) in diameter for turning operations.

Spindle options range from 12,000 to 20,000 RPM with torque up to 430 Nm through SK50/HSK-A100 tapers. The SK50 taper delivers the tool rigidity needed for heavy roughing in titanium and Inconel at this scale. The FD mill-turn table provides the torque and speed for facing, boring, and cylindrical turning on large-diameter parts.

The tool magazine holds up to 120 pockets with maximum 400 mm tool length (540 mm with HSK-A100). Linear motor options are available for the X-axis to deliver enhanced dynamic performance during high-speed contouring passes across the full 3-meter travel range.

Control options include Siemens Sinumerik ONE and Heidenhain TNC7 under CELOS X, with integrated mill-turn cycles for combined programming. The DMF 300|11 FD fills a unique market position: there are very few machines that offer 3-meter-class X-axis travel with simultaneous 5-axis capability and integrated turning. Specs sourced from DMG Mori published data.

Full Specifications

Parameter	Value
X-Axis Travel	3,000 mm (118.1 in)
Y-Axis Travel	1,100 mm (43.3 in)
Z-Axis Travel	1,050 mm (41.3 in)
Max Workpiece Length	3,600 mm (141.7 in)
Max Workpiece Width	1,100 mm (43.3 in)
Max Workpiece Height	1,100 mm (43.3 in)
Max Workpiece Diameter	1,400 mm (55.1 in)
Max Table Load	6,000 kg (13,228 lb)
Max Spindle Speed	12,000 - 20,000 RPM
Spindle Taper	SK40/HSK-A63, SK50/HSK-A100
Spindle Torque	Up to 430 Nm
Tool Capacity	Up to 120 pockets
Max Tool Length	400 mm (540 mm with HSK-A100)
Drive Type	Ball screw (linear motor optional on X-axis)
Design	Traveling column with FD mill-turn
CNC Control	Siemens Sinumerik ONE / Heidenhain TNC7 (CELOS X)
3000 Mm	118.1 in.
1100 Mm	43.3 in.
1050 Mm	41.3 in.
1400 Mm	55.1 in.
6000 Kg	13227.7 lbs.
3600 Mm	141.7 in.
High Precision Mill Turn Manufacturing With The Dmf11 Series	Digital Transformation in Manufacturing with DMG MORI \| NTF Korfhage (Germany)
Customer Benefits	MPC Graph: aktuelle und angelernte Prozesswerte. / MPC Diagnostics: Lagerzustand, Anzahl von Stoß und Crash.
Customer Benefitsflexible Application Possibilitiesin Process Measurement	Left : Semi-automatic Measurement solution. / Right : Automatic measurement solution.

Specifications sourced from us.dmgmori.com — verified 2026-03-28

Strengths & Limitations

Strengths

3,000 mm X-axis travel with FD mill-turn enables complete machining of the longest production parts in aerospace and energy
6,000 kg table load capacity accommodates massive aerospace billets, structural frames, and energy components
SK50/HSK-A100 spindle option with 430 Nm torque provides cutting force for heavy titanium and Inconel roughing
FD mill-turn eliminates separate lathe operations for long parts with turned flanges, journals, and diameters
Traveling-column design maintains full table load at any X-axis position during both milling and turning
Up to 120-tool magazine supports complex multi-operation mill-turn jobs on large workpieces

Limitations

Starting at $900K and commonly exceeding $1.1M configured, this is a major capital investment
3,000 mm X-axis travel requires extensive floor space and reinforced foundation rated for 30,000+ kg
Long-part turning fixturing across 3 meters demands careful engineering for balance and safety
Lead times on new orders can exceed 12-18 months for this specialized configuration
Turning capability on very heavy parts requires careful RPM management for safe operation

Best For

Aerospace OEMs machining long wing spars and structural members with both milled features and turned bushings Energy sector manufacturers producing large turbine casings with milled ports and turned flanges in a single setup Defense manufacturers machining long structural components combining milled profiles and turned interfaces Oil and gas shops producing long valve assemblies and downhole components with combined mill-turn features Shops replacing separate long-bed lathe and milling machine combinations with a single platform

Frequently Asked Questions

01 What does a DMG Mori DMF 300|11 FD cost?

New DMF 300|11 FD machines price between $900,000 and $1,350,000 depending on spindle, control, and linear motor configuration. The FD mill-turn option adds roughly $80,000-$120,000 over the standard DMF 300|11.

02 How does the DMF 300|11 FD compare to the DMF 300|8 FD?

The DMF 300|11 FD offers 37.5% more Y-axis travel (1,100 vs 800 mm) and 23.5% more Z-axis travel (1,050 vs 850 mm), plus double the table load (6,000 vs 3,000 kg). The |11 series is built for substantially larger and heavier parts. The |8 series is more compact and affordable for narrower parts.

03 What foundation is required for the DMF 300|11 FD?

The DMF 300|11 FD requires a reinforced concrete foundation rated for approximately 30,000-40,000 kg total load including machine, workpiece, and dynamic forces from both milling and turning operations. DMG Mori provides detailed foundation drawings. Overhead crane access rated for maximum workpiece weight is essential.

04 Can the FD table handle turning operations on 6,000 kg parts?

The table supports 6,000 kg static load, but turning RPM must be reduced for heavier parts to maintain balance and safety. DMG Mori application engineering provides specific speed-weight combination guidelines. For lighter parts within the turning envelope, full turning speeds are available.
