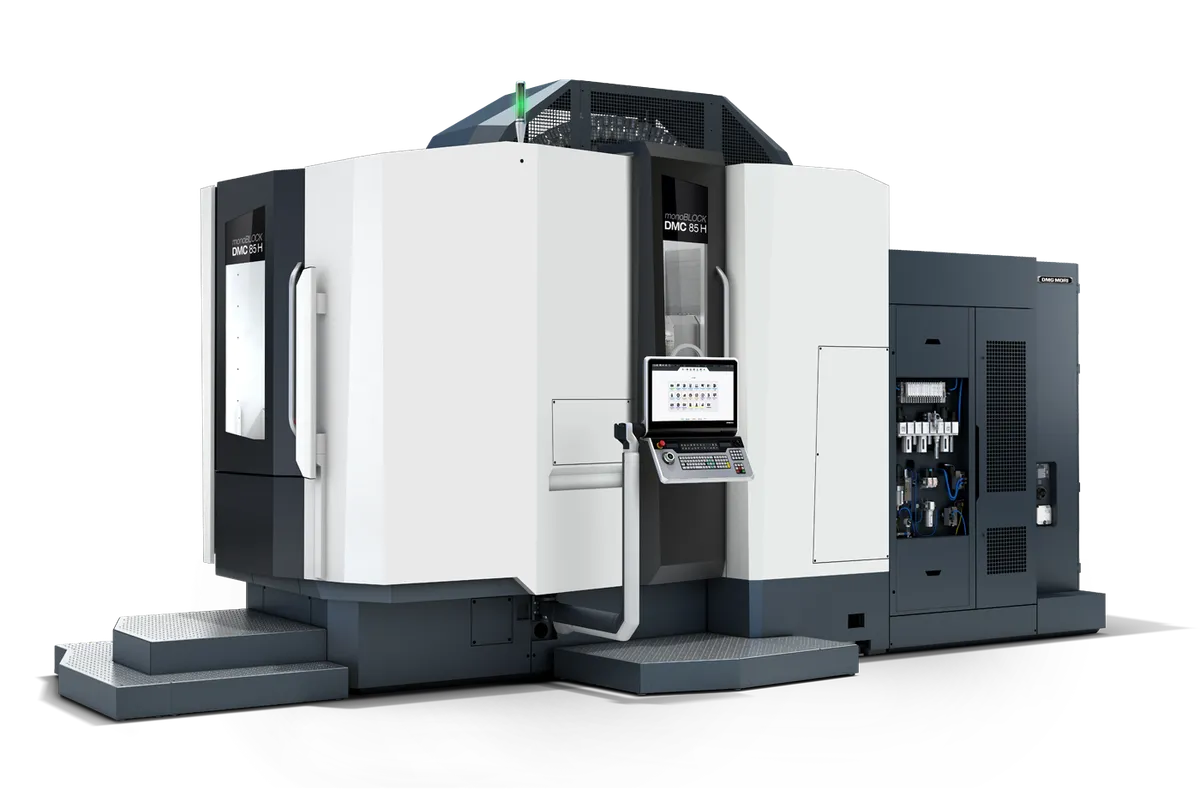

DMG Mori DMC 85 h FD monoBLOCK

$500,000 - $700,000 Updated 2026-03-19

Key Specifications

X Travel

850 mm (33.5 in)

Y Travel

1,150 mm (45.3 in)

Z Travel

900 mm (35.4 in)

Max Spindle

12,000 RPM (15,000; 20,000 RPM optional)

Spindle Taper

HSK-A63 (HSK-A100 optional)

Tool Capacity

30 tools standard (60, 120 optional)

Overview

The DMG Mori DMC 85 h FD monoBLOCK is the larger sibling in the horizontal 5-axis monoBLOCK mill-turn family, offering significantly more travel and workpiece capacity than the 65-class machine while maintaining the same monolithic one-piece cast iron construction and thermosymmetric design principles. The h monoBLOCK horizontal platform combines 5-axis simultaneous machining with FD (FreeDrive) turning capability, enabling complete machining of complex parts with both milled and turned features in a single setup.

Travel measures 850 x 1,150 x 900 mm (33.5 x 45.3 x 35.4 in), providing a substantially larger work envelope than the DMC 65 h variant. Maximum workpiece capacity reaches 830 mm (32.7 in) diameter and 900 mm (35.4 in) height at up to 800 kg (1,764 lb) table load. The swivelling rotary table with bilateral bearings supports components up to 1,000 kg for simultaneous 5-axis contouring.

The FD turning function delivers rotational speeds up to 800 RPM for facing, boring, and grooving operations. While the turning speed is lower than the 65-class due to the larger table diameter and workpiece mass, it remains practical for most supplementary turning operations on combined-feature parts. The horizontal spindle orientation ensures chips fall away from the workpiece under gravity during both milling and turning.

Spindle options include HSK-A63 standard and HSK-A100 for heavy cutting, supporting tools up to 280 mm (11 in) diameter and 29.5 kg (65.1 lb). The thermosymmetric design achieves long-term accuracy of 5 µm (0.0002 in). The DMC designation provides pallet-changer capability, and tool magazines expand to 120 positions. Floor space is approximately 17.5 m² (188 sq ft). Control options include SIEMENS SINUMERIK ONE or HEIDENHAIN TNC7 with CELOS X. New machines price between $500,000 and $700,000. Specs sourced from DMG Mori published data.

Full Specifications

Parameter	Value
X-Axis Travel	850 mm (33.5 in)
Y-Axis Travel	1,150 mm (45.3 in)
Z-Axis Travel	900 mm (35.4 in)
Max Spindle Speed	12,000 RPM (15,000; 20,000 RPM optional)
Spindle Taper	HSK-A63 (HSK-A100 optional)
Spindle Motor Power	22 kW (30 hp) standard; up to 52 kW optional
Spindle Torque	157 Nm standard; up to 430 Nm optional
Max Workpiece Diameter	830 mm (32.7 in)
Max Workpiece Height	900 mm (35.4 in)
Max Table Load	800 kg (1,764 lb)
Turning Speed Max	800 RPM (FD mode)
Tool Capacity	30 tools standard (60, 120 optional)
Rapid Traverse Rate	42 m/min (1,654 ipm)
Positioning Accuracy	5 µm (0.0002 in)
Floor Space	17.5 m² (188 sq ft)
Machine Weight	16,000 kg (35,274 lb)
CNC Control	SIEMENS SINUMERIK ONE / HEIDENHAIN TNC7 (CELOS X)
850 Mm	33.5 in.
1150 Mm	45.3 in.
900 Mm	35.4 in.
830 Mm	32.7 in.
800 Kg	1763.7 lbs.
Machine Transport Of The Dmu 65 H Monoblock Machining Center To Ropa Germany	DMU \| DMC 85 H monoBLOCK – Universal horizontal machining center
Customer Benefits	MPC Graph: aktuelle und angelernte Prozesswerte. / MPC Diagnostics: Lagerzustand, Anzahl von Stoß und Crash.

Specifications sourced from us.dmgmori.com — verified 2026-03-28

Strengths & Limitations

Strengths

850 x 1,150 x 900 mm travel envelope handles significantly larger workpieces than the 65-class horizontal monoBLOCK
800 kg table load accommodates heavy castings, forgings, and complex fixtures for aerospace and industrial components
Horizontal spindle with FD mill-turn eliminates separate lathe operations while providing gravity-assisted chip evacuation
HSK-A100 option with up to 430 Nm torque enables aggressive roughing in steel, cast iron, and titanium
Thermosymmetric design achieves 5 µm long-term accuracy for precision combined-operation parts
DMC pallet-changer capability supports load-while-cutting production for high spindle utilization

Limitations

800 RPM max FD turning speed is lower than the 65-class (1,200 RPM) due to larger table mass
Starting at $500K, the investment requires substantial combined-operation workload to justify over separate machines
17.5 m² footprint is significantly larger than the 65-class, requiring more floor space
Niche horizontal 5-axis mill-turn market limits resale options and secondhand availability

Best For

Aerospace manufacturers machining large housings and structural components with both milled and turned features Energy sector production of valve bodies, pump housings, and turbine components requiring multi-sided access Heavy equipment manufacturers producing complex castings and forgings up to 800 kg with combined-feature requirements Production cells requiring automated horizontal 5-axis mill-turn with pallet-change capability Shops consolidating large-part milling and turning operations to eliminate re-chucking and reduce floor space

Frequently Asked Questions

01 What does a DMC 85 h FD monoBLOCK cost?

New machines price $500,000-$700,000 depending on spindle selection, tool magazine size, and control choice. The HSK-A100 heavy-cutting spindle and expanded tool magazine add to the base cost.

02 DMC 85 h FD vs DMC 65 h FD -- when do I need the larger machine?

The 85 adds 200 mm more X-travel, 200 mm more Y, 200 mm more Z, and 200 kg more table load. Choose the 85 when your parts exceed 630 mm diameter, 700 mm height, or 600 kg weight. The 65 is sufficient for medium-sized components and costs $100K-$125K less.

03 Why is the FD turning speed lower than the 65-class?

The larger table diameter and higher workpiece mass (800 vs 600 kg) require lower rotational speeds for safe operation and to maintain accuracy. At 800 RPM, the FD function still handles facing, boring, and grooving on most combined-feature parts.

04 What control options are available?

SIEMENS SINUMERIK ONE or HEIDENHAIN TNC7, both running under the CELOS X interface with unified mill-turn programming. Both controls handle seamless transitions between milling and turning operations.
